- Page 1 PACK TYXIA 642 Connected roller shutter pack Installation instructions...
-
Page 2: Table Of Contents

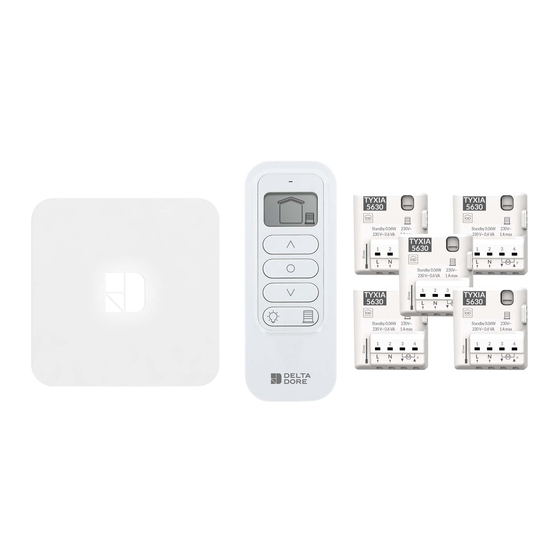

Contents Pack composition - 5 X3D receivers for roller shutter 1 A max., TYXIA 5630 - 1 Group remote control, TYXIA 6610 1/ Installation ......................4 - 1 TYDOM Home and its connector 1.1 Receiver for TYXIA 5630 roller shutter..............4 1.2 TYDOM Home ........................6 1.3 Remote control TYXIA 1712 ...................7 2/ Association radio .................... -
Page 3: 1/ Installation
1/ Installation 1.1 Receiver for TYXIA 5630 roller shutter 1.1.3 Connection instructions for IN1 - COM - IN2 terminals 1.1.1 Recommendations Use an electrically isolated tool to Use the wires supplied. • IMPORTANT: the control wires are not insulated 230V perform the actions Push the wire fully into the terminal. -
Page 4: Tydom Home
1/ Installation 1.2 TYDOM Home 1.3 Remote control TYXIA 1712 1.2.1 Box contents 1.3.1 Mounted on the wall A. Tydom Home B. Ethernet cable C. Mains supply D. Important Product Information 1.2.2 Description E. System status display LED F. Ethernet port G. -
Page 5: 2/ Association Radio
2/ Association radio 2.1 Associate the TYXIA 1712 remote control 2.2 Create / Modify a group with the TYXIA 5630 receivers Creating a group allows the simultaneous control of multiple receivers. ❶ On the receiver, press its button for 3 seconds ❶... -
Page 6: 3/ Learning For The Shutter Travel Time
If the power of the motor connected is below 45W, or if there is an electric motor, perform this step manually (see additional notice on the pages for the TYXIA 5630-5730 on the DELTA DORE website). TYXIA TYXIA... -
Page 7: 5/ Troubleshooting
5/ Troubleshooting 5.1 TYXIA 1712 remote control 5.2 Signals and possible faults on the TYDOM Home • The screen displays System status The battery is low. System accessible locally and remotely, user connected Flashing white Change the battery. System accessible locally and remotely Steady white System accessible locally, user connected Flashing orange... -
Page 8: Tyxia 5630 Receiver
5/ Troubleshooting 5.3 TYXIA 5630 Receiver Remove all associations - Press the receiver’s button for 20 seconds. Summary of functions accessible using the button of the TYXIA 5630 receiver. - Press and hold until the LED switches off after the rapid flashing phase. - Release. -
Page 9: 6/ Technical Characteristics
6/ Technical characteristics TYXIA 1712 remote control Smart home hub TYDOM Home • Power supplied by 3V lithium battery, CR2430 • Power supply via AC adapter Ktec: KSAS0050500100VED • Class III insulation or SPC: ZZU1001-10050-2E AC values: 100-240V~ 50/60 Hz, 0,18A - DC: 5V 1A •... - Page 10 www.deltadore.com...
