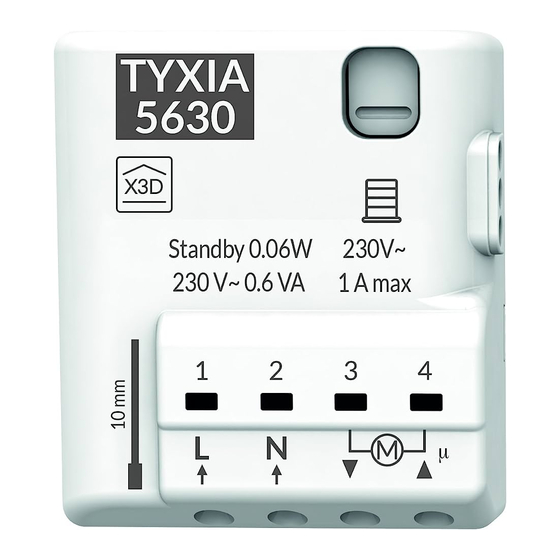

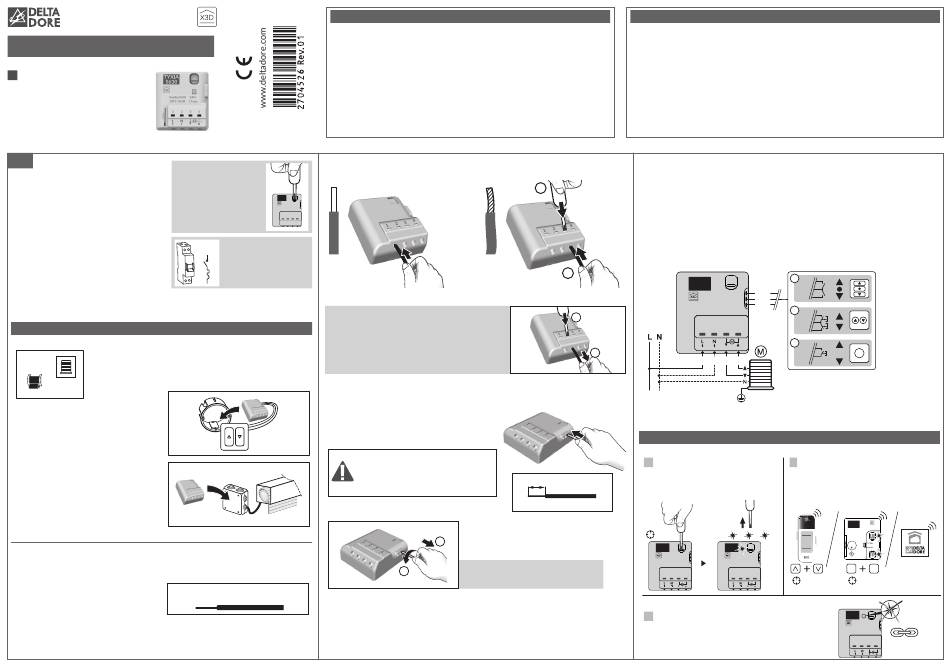

DELTA DORE TYXIA 5630 Manual

TYXIA 5630 - TYXIA 5730
Receiver for roller shutter
EN
EN

Recommendations

Use an electrically iso-
• IMPORTANT: the control wires
lated tool to perform
are not insulated from the mains
the actions on the
power supply. All connected
receiver configuration
equipment must be marked CE and
button.
meet the requirements of the low
voltage devices as well as assembly
recommendations.
Local control wires can be extended
up to 10 m (separate from the 230 V).
• The roller shutter high and low stops
must be set before the receiver is
installed.

1 - Installation

Switch off the installation
230V~ power supply
OFF
You can install the receiver for roller
shutter in a flush-mounted box behind
a switch or control push-button or in a
sealed box inside the roller shutter, a
safe distance from metal parts.

1.1 Connection instructions for terminals 1 2 3 4.

- Strip the wires while respecting
the strip length specified on the
product.
- Push the wire fully into
the terminal.

Technical characteristics

- Power supply: 230 V~ 0.6 VA
- 2 powered contact outputs: TYXIA 5630 (1 A) - TYXIA 5730 (2 A)
- Stand-by consumption: 0.06 W
- Number of associated transmitters: 16 maximum
- Storage temperature: -10°C/+70°C
- Operating temperature: -10°C/+40°C
- IP 40 (flush mounting box)
- Dimensions: 41 x 36 x 14.5 mm
- X3D wireless remote control device: 868.7 MHz to 869.2 MHz
1.1.1 Solid wires
TYXIA
10 A
10A circuit breaker
required.
Removal recommendations
- Switch off the power supply.
- Use a 2.5 mm screwdriver to press the
button of the front terminal before
removing the wire.

1.2 Connection instructions for IN1 - COM - IN2 terminals

- Use the wires supplied.
- Push the wire fully into the terminal.
Do not strip the wires when they
are connected to the product as
IPx4
you could damage the internal
connector.
2
Ø
0,75 - 1,5 mm
1.1.2 Stranded wires
1
2
1
7mm
0,5 mm
KY31A02
2
Removal recommendations
1
Turn the wire while pulling on it.

Support

The receiver locks in off mode
When an overload is detected, the product locks in off mode for 30 seconds
before authorising a new activation.
The LED flashes rapidly throughout this phase.
For TYXIA 5630 receivers:
- Replace your receiver with a TYXIA 5730.
For TYXIA 5730 receivers:
- Contact our customer service.

1.3 Connection

- Connect the motor control wires to terminals 3 and 4
(motor lowering control wire to terminal 3, raising control wire
to terminal 4).
- Connect the switch to the IN1 - COM - IN2 terminals.
- Connect the 230 V power supply to terminals 1 and 2.
- Switch the installation power back on to continue with the association
operation.
TYXIA
IN1
COM
IN2
230 V~
1 2 3 4
2
1 2 3 4
2 - Association
- Press and hold the receiver
1
button for 3 seconds until
2
the LED flashes, release.
> 3s ... ... ...
TYXIA TYXIA
1 2 3 4 1 1 2 2 3 3 4 4
When the receiver LED has stopped
3
flashing. The products are associated.
1
IN1
1
Hold switch
COM
2
IN2
2
IN1 Double
1
COM
push-button
2
IN2
3
Push
IN1
COM
button
On the transmitter:
2
- Send the association command
(Refer to the user guide).
TYXIA 2600
TYDOM
TYXIA
2600
A
IN1
CR 2032
COM
IN2
B
A B
> 3s > 3s
OFF
TYXIA
OK
1 2 3 4
