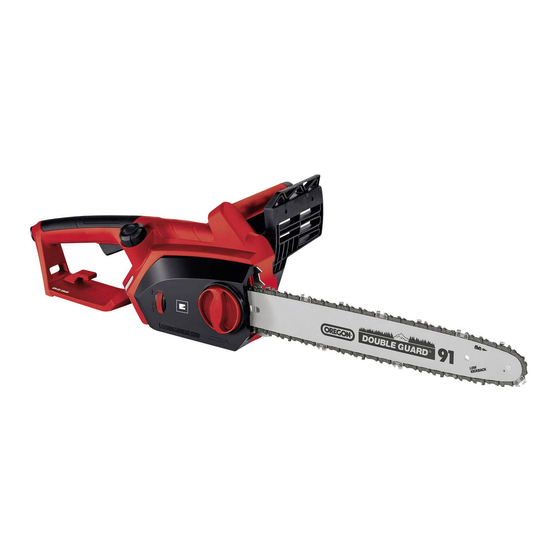

EINHELL GH-EC 2040 Original Operating Instructions
Electric chainsaw
Hide thumbs
Also See for GH-EC 2040:
- Original operating instructions (212 pages) ,
- Original operating instructions (146 pages) ,
- Original operating instructions (40 pages)
Related Manuals for EINHELL GH-EC 2040
Summary of Contents for EINHELL GH-EC 2040
- Page 1 GH-EC 2040 Original operating instructions Electric chainsaw Art.-Nr.: 45.017.19 I.-Nr.: 21013 Anl_GH_EC_2040_EX_UK_SPK7.indb 1 Anl_GH_EC_2040_EX_UK_SPK7.indb 1 24.08.2023 10:58:39 24.08.2023 10:58:39...
- Page 2 - 2 - Anl_GH_EC_2040_EX_UK_SPK7.indb 2 Anl_GH_EC_2040_EX_UK_SPK7.indb 2 24.08.2023 10:58:41 24.08.2023 10:58:41...
- Page 3 - 3 - Anl_GH_EC_2040_EX_UK_SPK7.indb 3 Anl_GH_EC_2040_EX_UK_SPK7.indb 3 24.08.2023 10:58:42 24.08.2023 10:58:42...
- Page 4 - 4 - Anl_GH_EC_2040_EX_UK_SPK7.indb 4 Anl_GH_EC_2040_EX_UK_SPK7.indb 4 24.08.2023 10:58:43 24.08.2023 10:58:43...
- Page 5 - 5 - Anl_GH_EC_2040_EX_UK_SPK7.indb 5 Anl_GH_EC_2040_EX_UK_SPK7.indb 5 24.08.2023 10:58:44 24.08.2023 10:58:44...
- Page 6 - 6 - Anl_GH_EC_2040_EX_UK_SPK7.indb 6 Anl_GH_EC_2040_EX_UK_SPK7.indb 6 24.08.2023 10:58:45 24.08.2023 10:58:45...
- Page 7 - 7 - Anl_GH_EC_2040_EX_UK_SPK7.indb 7 Anl_GH_EC_2040_EX_UK_SPK7.indb 7 24.08.2023 10:58:45 24.08.2023 10:58:45...
-
Page 8: Table Of Contents
Table of contents 1. Safety regulations 2. Layout and items supplied 3. Proper use 4. Technical data 5. Before starting the equipment 6. Operation 7. Working with the chainsaw 8. Replacing the power cable 9. Cleaning, maintenance and ordering of spare parts 10. -
Page 9: Safety Regulations
Danger! b) Do not use this power tool in an area When using the equipment, a few safety pre- where there is a risk of explosion and cautions must be observed to avoid injuries and where there are infl ammable liquids, damage. - Page 10 always wear safety goggles. Wearing per- changing plug-in tool parts or putting the sonal safety equipment such as dust masks, power tool down. These precautions will non-slip safety shoes, a helmet or ear plugs, prevent the power tool starting accidentally. depending on the type and application of the d) Keep unused electric tools out of the tool, reduces the risk of injury.
- Page 11 the chainsaw with your hands the other way le: Never use the chainsaw to cut plastic round as your working position increases the or brickwork or building materials which risk of injury and is therefore not allowed. are not made of wood. Use of the chainsaw •...
-
Page 12: Layout And Items Supplied
• Position the power cable such that it cannot 15. Cutter rail be caught by branches or the like during sa- 16. Saw chain wing. 17. Cutter guard • We recommend that first-time users should at least practice cutting roundwood (logs) on a 2.2 Items supplied sawing trestle or similar. -
Page 13: Technical Data
4. Technical data ted noise emission value can also be used to make an initial assessment of exposure. Mains voltage: ......230-240 V ~ 50 Hz Warning: Power rating: ........... 2000 W • The vibration and noise emission levels Idling speed: ......... 7800 rpm during actual use may vary from the values Cutter rail length: ........ -
Page 14: Operation
• Lay the chain as shown in the groove which Notice! Be aware of the temperature conditions: runs around the cutter rail (Fig. 6/Item A). diff erent lubricants with completely diff erent • Insert the cutter rail and chain as shown in viscosities are required at diff... -
Page 15: Working With The Chainsaw
7. Working with the chainsaw Switching off Release the ON/OFF switch (Fig. 1/Item 6). 7.1 Preparations The integrated brake will bring the running chain- To ensure that you can work safely, check the fol- saw to a standstill within a very short space of lowing points before every use: time. - Page 16 7.2 Description of the correct procedures for a diff erent direction to the desired fall direction (C) basic use of the chainsaw or it starts to lean back and traps the saw chain, interrupt the felling cut and insert wedges made Felling a tree (Figs.
-
Page 17: Replacing The Power Cable
When working with the saw on a slope, always Cutting wood which is under tension position yourself at a higher point on the slope Special care is required when cutting wood which above the tree as shown in Fig. 15. In order to re- is under tension. -
Page 18: Notes On Environmental Protection / Disposal
Article number of the machine • Identification number of the machine • Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com - 18 - Anl_GH_EC_2040_EX_UK_SPK7.indb 18 Anl_GH_EC_2040_EX_UK_SPK7.indb 18 24.08.2023 10:58:46 24.08.2023 10:58:46... - Page 19 The reprinting or reproduction by any other me- ans, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany Subject to technical changes - 19 - Anl_GH_EC_2040_EX_UK_SPK7.indb 19 Anl_GH_EC_2040_EX_UK_SPK7.indb 19...
-
Page 20: Troubleshooting
12. Troubleshooting Danger! Before troubleshooting, switch off the tool and disconnect the mains plug. The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your tool fails to work properly. If the problem still persists after working through the list then please con- tact your nearest service workshop. - Page 21 * Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases: •...
- Page 22 We draw attention to the restrictions of this guarantee concerning wear parts, consumab- les and missing parts as presented in the service information included in this operating manual. Warrantor/ Service: Einhell UK Ltd, Unit 10, 1st Floor, Champion‘s Business Park, Arrowe Brook Road, Upton, Wirral, CH49 0UQ - 22 - Anl_GH_EC_2040_EX_UK_SPK7.indb 22 Anl_GH_EC_2040_EX_UK_SPK7.indb 22...
