- Page 1 TP-CD 18/80 Li-i BL Original operating instructions Cordless Hammer Drill/Screwdriver Art.-Nr.: 42.572.43 I.-Nr.: 21013 Anl_TP_CD_18_80_Li_i_BL_EX_UK_SPK7.indb 1 Anl_TP_CD_18_80_Li_i_BL_EX_UK_SPK7.indb 1 17.10.2023 14:38:45 17.10.2023 14:38:45...
- Page 2 - 2 - Anl_TP_CD_18_80_Li_i_BL_EX_UK_SPK7.indb 2 Anl_TP_CD_18_80_Li_i_BL_EX_UK_SPK7.indb 2 17.10.2023 14:38:47 17.10.2023 14:38:47...
- Page 3 - 3 - Anl_TP_CD_18_80_Li_i_BL_EX_UK_SPK7.indb 3 Anl_TP_CD_18_80_Li_i_BL_EX_UK_SPK7.indb 3 17.10.2023 14:38:48 17.10.2023 14:38:48...
- Page 4 - 4 - Anl_TP_CD_18_80_Li_i_BL_EX_UK_SPK7.indb 4 Anl_TP_CD_18_80_Li_i_BL_EX_UK_SPK7.indb 4 17.10.2023 14:38:50 17.10.2023 14:38:50...
-
Page 5: Layout And Items Supplied

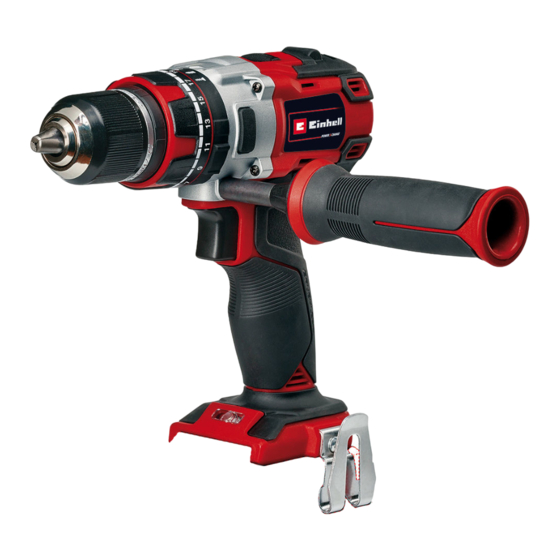

2. Layout and items supplied Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and 2.1 Layout (Fig. 1) damage. Please read the complete operating 1. Torque selector instructions and safety regulations with due care. 2. -
Page 6: Proper Use
3. Proper use Drilling in metal Vibration emission value a ≤ 2.5 m/s K uncertainty = 1.5 m/s The cordless impact drill/driver is designed for tightening and undoing screws, for drilling in Impact drilling in concrete wood, metal and plastic, and for impact drilling in Vibration emission value a = 10.15 m/s stone, in each case when using the appropriate... -
Page 7: Before Starting The Equipment
5. Before starting the equipment When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent Be sure to read the following information before short circuits and fi res. you use your cordless screwdriver for the fi rst time: To ensure that the LI battery pack provides 1. -
Page 8: Cleaning, Maintenance And Ordering Of Spare Parts
6.4 Forward/Reverse switch (Fig. 5 /Item 3) 6.9 Changing the tool (Fig. 7) With the slide switch above the On/Off switch you Important. Set the changeover switch (3) to its can select the direction of rotation of the battery- centre position whenever you carry out any work powered drill/screwdriver and secure it against (for example changing the tool, maintenance being switched on accidentally. -
Page 9: Disposal And Recycling
Article number of the unit • ID number of the unit • Spare part number of the required spare part For our latest prices and information please go to www.Einhell-Service.com Tip! For good results we recommend high-quality ac- cessories from www.kwb.eu welcome@kwb.eu 8. -
Page 10: Charger Indicator
10. Charger indicator Indicator status Explanations and actions Red LED Green LED Off Flashing Ready for use The charger is connected to the mains and is ready for use; there is no battery pack in the charger Off Charging The charger is charging the battery pack in quick charge mode. The char- ging times are shown directly on the charger. - Page 11 The reprinting or reproduction by any other means, in whole or in part, of documentation and papers ac- companying products is permitted only with the express consent of the Einhell Germany AG. Subject to technical changes - 11 - Anl_TP_CD_18_80_Li_i_BL_EX_UK_SPK7.indb 11...
-
Page 12: Service Information
* Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases: •... -
Page 13: Warranty Certificate
We draw attention to the restrictions of this guarantee concerning wear parts, consumab- les and missing parts as presented in the service information included in this operating manual. Warrantor/ Service: Einhell UK Ltd, Unit 10, 1st Floor, Champion‘s Business Park, Arrowe Brook Road, Upton, Wirral, CH49 0UQ - 13 - Anl_TP_CD_18_80_Li_i_BL_EX_UK_SPK7.indb 13 Anl_TP_CD_18_80_Li_i_BL_EX_UK_SPK7.indb 13... -
Page 14: Declaration Of Conformity
Champions Business Park, First Floor Unit 10, Arrowe Brook Rd, Upton, Wirral CH49 0AB, United Kingdom declare the conformity to UK standards and legislation was assessed for: Cordless Impact Drill TP-CD 18/80 Li-i BL (Einhell) UK legislation Simple Pressure Vessels (Safety) Regulation... - Page 15 - 15 - Anl_TP_CD_18_80_Li_i_BL_EX_UK_SPK7.indb 15 Anl_TP_CD_18_80_Li_i_BL_EX_UK_SPK7.indb 15 17.10.2023 14:38:51 17.10.2023 14:38:51...
- Page 16 EH 10/2023 (01) Anl_TP_CD_18_80_Li_i_BL_EX_UK_SPK7.indb 16 Anl_TP_CD_18_80_Li_i_BL_EX_UK_SPK7.indb 16 17.10.2023 14:38:51 17.10.2023 14:38:51...
