Wohler VE 500 Operating Manual

Hd video-endoscope
Hide thumbs Also See for VE 500:
Table of Contents

Advertisement

Quick Links

Download this manual

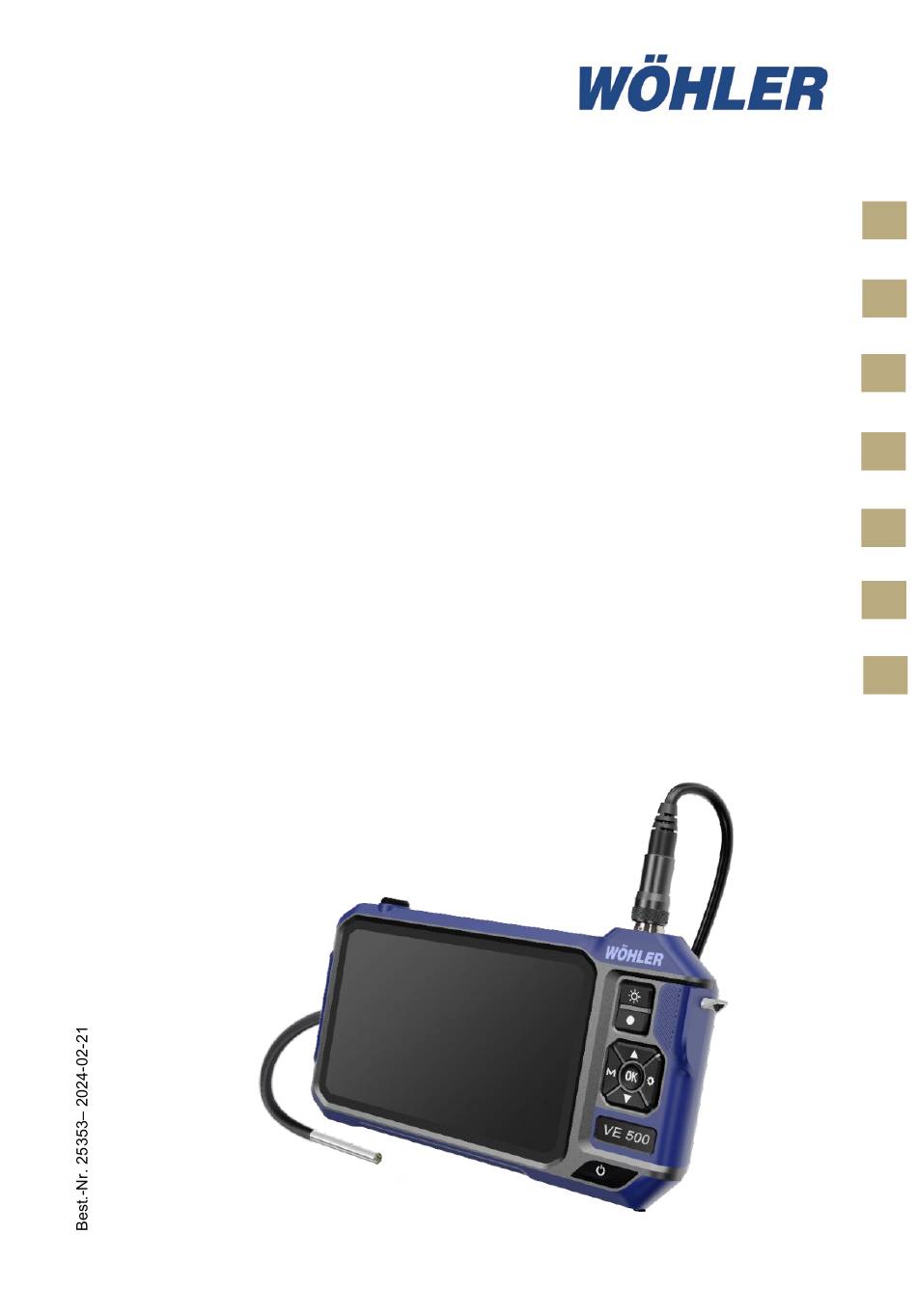

Wöhler VE 500
Bedienungsanleitung
HD Video-Endoskop
Operating manual
HD Video-Endoscope
Mode d'emploi
Endoscope Vidéo HD
Bedieningshandleiding
Videoscoop
Istruzioni d'uso
Videoendoscopio
Bruksanvisning
HD-videoendoskop
Brukerhåndbok
HD-videoendoskop
DE
EN
FR
NL
IT
SV
NO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VE 500 and is the answer not in the manual?

Questions and answers

Related Manuals for Wohler VE 500

Summary of Contents for Wohler VE 500

  • Page 1 Bedienungsanleitung HD Video-Endoskop Operating manual HD Video-Endoscope Mode d'emploi Endoscope Vidéo HD Bedieningshandleiding Videoscoop Istruzioni d‘uso Videoendoscopio Bruksanvisning HD-videoendoskop Brukerhåndbok HD-videoendoskop Wöhler VE 500...

  • Page 2: Table Of Contents

    Contents Contents General information ......32 Information on the operating instructions ..32 Notes in the operating instructions ....32 Intended use ..........33 Basic equipment .......... 33 Waste disposal ..........33 Address ............34 Warnings ..........34 Specification ........35 Device parts and function ....
  • Page 3 Contents Video inspection via app ....49 Maintenance ........54 Warranty and service ......54 12.1 Warranty ............54 12.2 Service ............54 Declaration of conformity ....55 FCC Caution: ........56 Enregistrement ........71...

  • Page 4: General Information

    Please keep these operating instructions in a safe place for future reference. The Wöhler VE 500 may only be used by qualified personnel for the intended purpose. We accept no liability for damage caused by fail- ure to observe these operating instructions.

  • Page 5: Intended Use

    General information Intended use The Wöhler VE 500 HD video endoscope is suita- ble for HD inspection of inaccessible cavities through the smallest openings from Ø 6 mm (e.g. tile cross). Other areas of application include pre- wall installations, fireplaces, combustion cham- bers, connectors, sinks or drain pipes.

  • Page 6: Address

    Warnings Address Wöhler Technology GmbH Wöhler-Platz 1 33181 Bad Wünnenberg Phone: +49 2953 73-100 E-mail: info@woehler-international.com Warnings ATTENTION! Only use the videoscope within the specified tem- perature range. ATTENTION! Keep the videoscope clean and dry. Take particu- lar care to ensure that the waterproof protective layer of the probe is not scratched.

  • Page 7: Specification

    Specification Specification Monitor Description Specification Display 7 " HD IPS, color Monitor resolution 1280 x 720 pixels Image rotation 180° Connections USB-C port Micro SD card slot HDMI connection (up to HDMI version 1.3) Menu languages English, Spanish, Chi- nese, German, Italian, French Additional lamp, 6 LEDs...
  • Page 8 Specification Technical data Description Specification Operating 0° to 45°C temperature Power supply Battery 3.7V, 6.0 Ah Li-Ion Operating time approx. 4 h Loading time approx. 3.5 h...

  • Page 9: Device Parts And Function

    Device parts and function Device parts and function Probe connection Additional lamp on/off Fig. 25: Front of device with connected probe Control buttons Control button Keystroke Functions long on/off Short, Activate WiFi On/off button when the device Deactivate WiFi is switched on short Press the brightness button to adjust the brightness of the LEDs on the probe in three...

  • Page 10: Device Connections

    Device parts and function long Change screen view (only for probes with 2 Record button or 3 cameras) short Select mode: Photo, video or image gallery M button short Call up and exit the settings menu Settings button short Confirm settings Freeze image OK button short...
  • Page 11 Device parts and function Fig. 27: Rear of the device Number Function HDMI connection Press the reset button if the system crashes. Microphone Loudspeaker Additional LED lamp ¼" threaded connection for metal uprights Metal stand...

  • Page 12: Indications In The Display

    Device parts and function Indications in the display Fig. 28: Display header Number Function 1 Mode Selection via M button Photo Video Picture gallery 2 SD memory card Icon displayed : Memory card inserted Icon crossed out: Memory card missing 3 Battery Filling depending on charge level...

  • Page 13: Before The Inspection

    NOTE! Install the camera probe before switching on the Wöhler VE 500. If the probe was installed while the device was switched on, the Wöhler VE 500 must then be switched on again.

  • Page 14: Inserting The Memory Card

    The on/off button flashes red during the charging process. The Wöhler VE 500 remains ready for operation during the charging process. As soon as the battery is charged, the on/off button flashes red and blue alternately when the charging cable is plugged in.

  • Page 15: Zoom Image

    Picture view Zoom image Press the up arrow button to zoom the image. • press 1x : zoom 1,3 press 2x : zoom 1,5 Change screen view NOTE! (only probes with 2 or 3 The screen view can only be changed if a probe cameras) with 2 or 3 cameras is connected.

  • Page 16: Recording

    To end a video recording, press the record • button again. NOTE! The Wöhler VE 500 stops recording automatically after 9:59 minutes. If the video is to be continued, it must be restarted. NOTE! To record the sound in a video, the microphone must be activated in the settings menu, see chap- ter 9.

  • Page 17: Manage Images And Videos

    Manage images and videos Manage images and videos Call up the picture gallery mode with the M • button. Playback mode appears at the top left of the Fig. 34: Image gallery icon screen. • You can now browse through the image and video files using the arrow buttons.

  • Page 18: Transferring Image And Video Files To The Pc46

    Manage images and videos Transferring image and Micro SD memory card: video files to the PC • Switch off the videoscope. Remove the micro SD memory card and read • out the data using a suitable card adapter. USB cable: ATTENTION! Disconnect the probe from the monitor! Switch on the videoscope.

  • Page 19: Settings

    Settings Settings NOTE! Settings confirmed with OK are retained after switching off and on again. Exception: The de- vice's own WLAN network is always deactivated after switching on. Depending on whether the desired settings re- • late to images or videos, use the M button to select photo or video mode.

  • Page 20: General Settings

    Version/MSDC Version: Information about the device and the • firmware version If the Wöhler VE 500 is connected to a laptop • or PC via a USB cable, MSDC appears at this point. After confirmation (MSDC - ON), all files stored on the SD card are displayed in...

  • Page 21: Video Inspection Via App

    Wöhler VE 500 (displayed as Wöhler VE 500). NOTE! As long as your mobile device is connected to the Wöhler VE 500, your mobile device has no ac- cess to the Internet.
  • Page 22 Video inspection via app Open the Wöhler VE 500 Smart Inspection • app. Tap on "Connect Device" to connect the app • to the Wöhler VE 500. Fig. 37: Wöhler Smart Inspection app start page All Wöhler endoscopes with which the app is com- patible appear in the app.
  • Page 23 Video inspection via app As soon as the WLAN connection has been estab- lished, the live image of the Wöhler VE 500 ap- pears in the app on the mobile device. NOTE! Photos and videos taken via the app are only saved on the mobile device, not on the SD card of the Wöhler VE 500.
  • Page 24 Video inspection via app Change screen view (only probes NOTE! with 2 or 3 cameras) The screen view can only be changed if a probe with 2 or 3 cameras is connected. Tap the switch icon to change the screen •...
  • Page 25 - A recording made with the app appears in the album and also in the gallery of your mobile de- vice. - A recording made with the Wöhler VE 500 is saved on the SD card of the Wöhler VE 500.

  • Page 26: Maintenance

    If used correctly, the warranty period for the Wöh- ler VE 500 is twelve months from the date of pur- chase. The battery is excluded. The warranty does not apply if repairs and modifi- cations have been carried out on the appliance by a third party who is not authorized to do so.

  • Page 27: Declaration Of Conformity

    WÖHLER Technik GmbH Wöhler-Platz 1, D-33181 Bad Wünnenberg declares that the product: Product name: Wöhler VE 500 HD video endoscope complies with the essential protection requirements laid down in Directive 2014/53/EU of the European Parliament and of the Council on the harmoniza- tion of the laws of the Member States relating to the making available on the market of radio equipment.

  • Page 28: Fcc Caution

    FCC Caution: FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
