ZyXEL AG-225H
802.11a/b/g Wi-Fi Finder & USB Adapter

Quick Start Guide

10/2005
Version 2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG-225H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZyXEL Communications AG-225H

Summary of Contents for ZyXEL Communications AG-225H

  • Page 1: Quick Start Guide

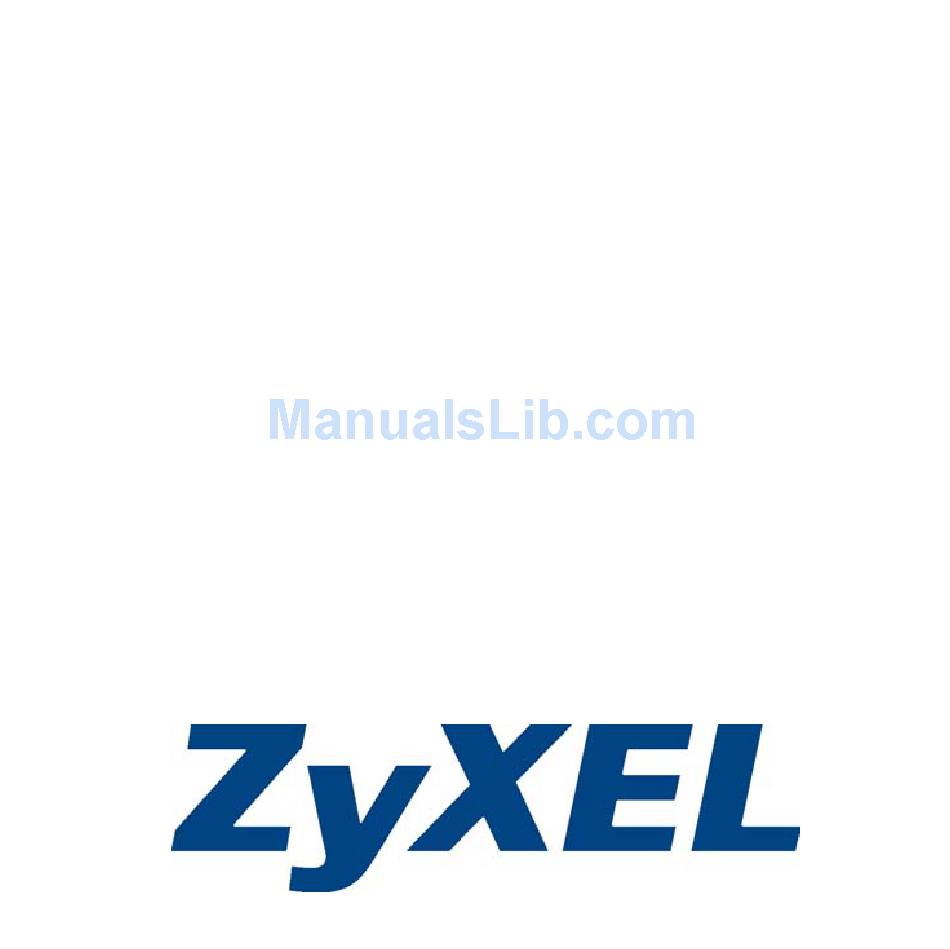

    ZyXEL AG-225H 802.11a/b/g Wi-Fi Finder & USB Adapter Quick Start Guide 10/2005 Version 2.1...

  • Page 2: Important Note

    ZyXEL AG-225H Quick Start Guide Important Note Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 ZyXEL AG-225H Quick Start Guide 1. Wi-Fi Finder Mode (User Interface)

  • Page 4: Lcm Description

    ZyXEL AG-225H Quick Start Guide 1.1 LCM Description Detect Mode Display up to 15 detected networks in the order of the signal strength Display the detected networks without any security setting (free hot spot). Display the dedicated network you choose to use...

  • Page 5: Basic Operation

    WPA) 4. Push the “Next” button to see more access points you have detected. For advanced features of the ZyXEL AG-225H, there are totally 3 modes to choose: mode is set by default for most users to detect the Wi-Fi Mode networks.
  • Page 6 When ZyXEL AG-225H Wi-Fi Finder is not used for 1~2 minutes, the device will enter into the power saving mode untill you push the “Seek” button again for searching the access points.

  • Page 7: Led Display

    ZyXEL AG-225H Quick Start Guide 1.3 LED Display The following table describes the LEDs on the ZyXEL AG-225H (Wi-Fi Finder Mode) COLOR STATUS Blue LINK Blue DESCRIPTION The ZyXEL AG-225H is power on. The ZyXEL AG-225H is either power off or entering into the Power Saving Mode.

  • Page 8: Button Display

    ZyXEL AG-225H Quick Start Guide 1.4 Button Display The following table describes the Buttons on the ZyXEL AG-225H (Wi-Fi Finder Mode). BUTTON SEEK Push “SEEK” to detect the wireless networks. NEXT Push “NEXT” to see the wireless networks you detect.
  • Page 9 The installation procedures are similar for all supported Windows versions. Windows XP screen shots are shown unless otherwise specified. DO NOT insert the ZyXEL AG-225H at this point. 1. Insert the support CD into the CD-ROM drive on your computer. The installation program will automatically run.
  • Page 10 8. Locate an available USB port on the computer (USB 2.0 Port Preferred). 9. Connect the ZyXEL AG-225H to your USB port via the included USB cable. 10. The LED turns on if the ZyXEL AG-225H is properly plug in.
  • Page 11 Never bend, force or twist the ZyXEL AG-225H USB Connector or Cable into the slot on your PC. 11. Windows will automatically install and configure the ZyXEL AG-225H. 12. Double click the Z icon to configure your wireless adapter. If the ZyXEL Utility icon displays, the ZyXEL AG-225H is installed properly.
  • Page 12 ZyXEL AG-225H Quick Start Guide 2.2. LED Display The following table describes the LEDs on the ZyXEL AG-225H (Adapter Mode). COLOR STATUS Blue LINK Blinking Blue DESCRIPTION The ZyXEL AG-225H is powered. The ZyXEL AG-225H is power off. The ZyXEL AG-225H is connected.

  • Page 13: Troubleshooting

    USB port and then restart your computer. Once the computer ZyXEL AG-225H. has restarted, check the status of the LEDs on the ZyXEL AG- 225H. Perform a hardware scan by clicking Start, Settings, Control Panel and then double-click Add/Remove Hardware. (Steps may vary depending on the Windows version).

  • Page 14: Customer Support

    ZyXEL AG-225H Quick Start Guide 4. Customer Support Please have the following information ready when you contact your local vendor. • Product model and serial number. • Warranty Information. • Date that you received your device. • Brief description of the problem and the steps you have taken.
