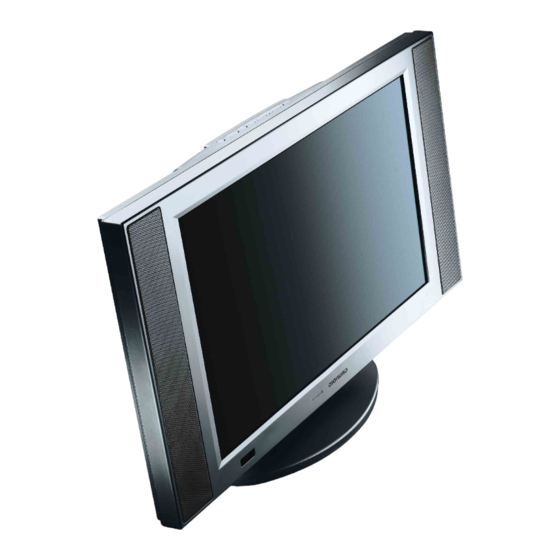

Grundig ARGANTO 23 LW 60-6410 TOP Service Manual

Grundig ARGANTO 23 LW 60-6410 TOP Service Manual

Advertisement

Quick Links

TV
Zusätzlich erforderliche Unterlagen für den Komplettservice
Additionally required Service Documents for the Complete Service
Service
Manual
Sicherheit
Safety
Materialnr./Part No.
720108000001
Materialnummer/Part Number 720100485000
Änderungen vorbehalten/Subject to alteration
H-S43 0804
• 8002/8012 oUKIRL, 8003/8013 oD, 8005/8015
http://www.grundig.com
• Printed in Germany ...
Service Manual
1. Ergänzung / Supplement 1
ARGANTO 23
LW 60-6410 TOP
GMK9100

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARGANTO 23 LW 60-6410 TOP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grundig ARGANTO 23 LW 60-6410 TOP

  • Page 1 Zusätzlich erforderliche Unterlagen für den Komplettservice Additionally required Service Documents for the Complete Service Service Manual Sicherheit Safety Materialnr./Part No. 720108000001 Materialnummer/Part Number 720100485000 Änderungen vorbehalten/Subject to alteration • Printed in Germany … H-S43 0804 • 8002/8012 oUKIRL, 8003/8013 oD, 8005/8015 http://www.grundig.com...
  • Page 2 GRUNDIG Service ARGANTO 23 LW 60-6410 TOP Es gelten die Vorschriften und Sicherheitshinweise The regulations and safety instructions shall be valid gemäß dem Service Manual "Sicherheit", Material- as provided by the "Safety" Service Manual, part nummer 720108000001, sowie zusätzlich die eventu-...
  • Page 3 GRUNDIG Service ARGANTO 23 LW 60-6410 Top Technische Daten / Technical Data ARGANTO 23 LW 60-6410 TOP Bild Display Activ Matrix TFT-LC-Display Bildschirmdiagonale / sichtbares Bild ca. cm 58 / 58 Bildseitenverhältnis 16:9 (Breitbild-Format) • 4 verschiedene Formatumschaltungen • Ansprechzeit ca.
  • Page 4 GRUNDIG Service ARGANTO 23 LW 60-6410 Top Service- und Sonderfunktionen Service and Special Funktions Tastenfunktionen Functions of the buttons MENU - Aufrufen des Service Menü ("Menu Screen") MENU - Call up the Service Menu ("Menu Screen") - Menü-Punkt aktivieren - Activate menu point.
  • Page 5 GRUNDIG Service ARGANTO 23 LW 60-6410 Top Fehlersuchdiagram Backlight & LEDs leuchten nicht Sind Spannungen an P803#10 = 5V & nein Netzteil prüfen P803#4 = 24V? (Netzteil) S. 2-2 Ist Spannung an Steckverbindungen nein L139 = 24V? P803 & P019 (Hauptplatte) prüfen...
  • Page 6 GRUNDIG Service ARGANTO 23 LW 60-6410 Top Kein Backlight, aber LED leuchtet Immer noch Steckverbinder kein V901 (Panel mit Inverter) In welcher Farbe P802 & P802A Grün Backlight (von Netzteil I019 (Scaler) leuchtet die LED? zum Inverter) prüfen prüfen Gerät ausschalten...
  • Page 7 GRUNDIG Service ARGANTO 23 LW 60-6410 Top Fault Finding Diagram No Backlight & No LED Is the Voltage of P803#10 = 5V & Check PB0112V P803#4 = 24V? (Power Module) (on Power Module) P. 2-2 Is the Voltage of L139 = 24V?
  • Page 8 GRUNDIG Service ARGANTO 23 LW 60-6410 Top No Backlight LED lights up Still no Check Backlight Check & Re-plug Green Which Colour U901 (Inverter) P802 & P802 A does LED light? (from Power to Inverter) I019 (Scaler) Press POWER key &...
  • Page 22 GRUNDIG Service ARGANTO 23 LW 60-6410 Top Hauptplatte PCB / Main Board PCB 2 - 14...
  • Page 23 GRUNDIG Service ARGANTO 23 LW 60-6410 Top Hauptplatte PCB / Main Board PCB 2 - 15...
  • Page 24 GRUNDIG Service ARGANTO 23 LW 60-6410 Top Scart-Platte / Scart PCB HB-1T1608-601JT L807 L812 HB-1T1608-601JT HB-1T1608-601JT L808 L813 HB-1T1608-601JT HB-1T1608-601JT L814 HB-1T1608-601JT L809 HB-1T1608-601JT L815 HB-1T1608-601JT L810 HB-1T1608-601JT L816 HB-1T1608-601JT L811 HB-1T1608-601JT L817 L802 HB-1T1608-601JT L804 HB-1T1608-601JT L805 L806 L801...
  • Page 25 GRUNDIG Service ARGANTO 23 LW 60-6410 Top Tuner-Platte / Tuner PCB 2 - 17...
  • Page 26 GRUNDIG Service ARGANTO 23 LW 60-6410 Top Bedienteil, IR-Emplänger / Control Board, IR Receiver 2 - 18...
  • Page 27 Explosionszeichnung und Ersatzteilliste Exploded View and Spare Parts List &...
  • Page 28 Ersatzteilliste NUR FÜR INTERNEN GEBRAUCH FOR INTERNAL USE ONLY Spare Parts List 7 / 2004 ARGANTO 23 LW 60-6410 TOP MATERIAL-NR. / PART NO.: 720126004400 BESTELL-NR. / ORDER NO.: GMK9100 POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION © POS. NO. FIG.
