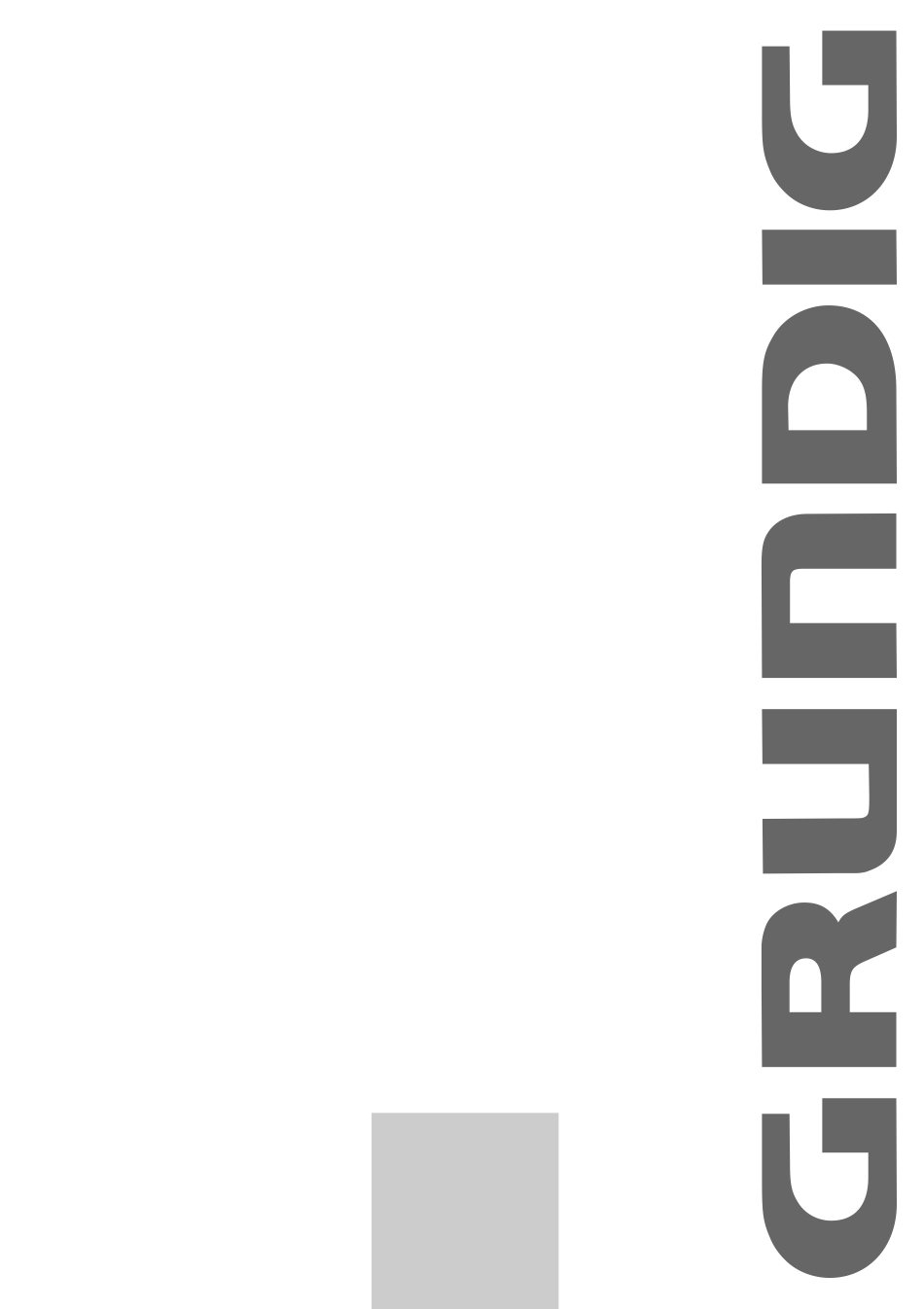

- Page 1 COLOR TELEVISION AMIRA 23 LW 60-7510 TOP AMIRA 26 LW 68-7510 TOP AMIRA 32 LXW 82-7510 TOP DEUTSCH ENGLISH FRANÇAIS ITALIANO NEDERLANDS TÜRKÇE POLSKI...
-
Page 2: Table Of Contents
Set-up and safety Connection/Preparation Connecting the antenna and the mains cable Inserting batteries in the remote control Adjusting the inclination of the screen (Amira 23) Overview Connections on the television (Amira 23) Connections on the television (Amira 26, Amira 32) -
Page 3: Set-Up And Safety
SET-UP AND SAFETY ___________________________ Please note the following information when setting up your television set. 20 cm This television set is designed to receive and display video and audio signals. Any other use is expressly prohibited. m i r a The ideal viewing distance is 5 times the screen diagonal. -
Page 4: Connection/Preparation
CONNECTION/PREPARATION __________ Connecting the antenna and the mains cable Amira 23 AV 3 AV 2 AV 1 VIDEO VIDEO ANT IN S-VHS DC 15V PC-IN AUDIO IN AV-4 AV OUT Plug the antenna cable of the rooftop antenna into the »ANT IN« anten- na socket on the television. -
Page 5: Inserting Batteries In The Remote Control
Find out about the legal regulations which apply in your area. Adjusting the inclination of the screen (Amira 23) m i r a Hold the television stand. Carefully tilt the screen forward or back. -
Page 6: Overview
OVERVIEW ____________________________________________ Connections on the television (Amira 23) AV 3 AV 3 AV 2 AV 2 AV 1 AV 1 DC 15V VIDEO VIDEO ANT IN S-VHS DC 15V PC-IN AV-4 AV OUT AUDIO IN ANT IN PC-IN AV 4 VIDEO L R... -
Page 7: Connections On The Television (Amira 26, Amira 32)
OVERVIEW ____________________________________________ Connections on the television (Amira 26, Amira 32) AV 3 AV 3 AV 2 AV 2 AV 1 AV 1 DVI-D PC-DVI VIDEO VIDEO ANT IN S-VHS PC-IN DVI-D AV-4 AV OUT AUDIO IN AC IN AC IN ANT IN PC-IN AV 4 VIDEO L R... -
Page 8: The Remote Control
OVERVIEW ____________________________________________ The remote control Switches off the television set (standby). Shows an inset picture; activates the double window function (two different TV programmes on separate halves of the screen); switches back to normal size. Switches between picture formats; page stop in teletext mode. Shows information on channel position;... -
Page 9: Controls On The Television
Selects various sound settings; selects a topic in teletext mode. VCR, SAT Switches to operating a GRUNDIG video recorder, a GRUNDIG satellite receiver or a GRUNDIG DVD player. Keep the appropriate button (»VCR«, »SAT«, »DVD«) pressed down. Then press the appropriate... -
Page 10: Settings
SETTINGS ______________________________________________ Setting television channels automatically The television set is equipped with an automatic channel search Sprache system. Deutsch Português Türkçe You start the search and can then sort the television channels into Dansk Svenska Eλληvικά Español Suomi Hrvatski your order of preference. Français âesky Pyccк... - Page 11 SETTINGS ______________________________________________ Sorting television channels In the »Program table« menu, select the channel to be moved Program table with with »P+«, »P-«, » « or » «. 01 ARD 17 ---- 02 ZDF 18 ---- Highlight the channel with » «...
-
Page 12: Picture Settings
SETTINGS ______________________________________________ Picture settings Press » « to open the »MAIN MENU«. Picture – The »MAIN MENU« appears. Brightness Contrast Select »Picture« with »P+« or »P-« and confirm with »OK«. Colour – The »Picture« menu appears. Sharpness Select »Default settings« with »P+« or »P-« and the setting Noise reduction Sharp Picture smart... -
Page 13: Stereo Width
SETTINGS ______________________________________________ Stereo / two channel, mono If the device receives two channel programmes, e.g. a film with the original sound on sound channel B (display: »Dual B «) and the dubbed version on sound channel A (display: »Dual A«), you can select the sound channel you desire. -
Page 14: Television Operation
TELEVISION OPERATION ___________________ Basic functions Switching on and off Switch on the television by pressing the »IO« button on the tele- vision set. – The device switches to standby mode. Switch the television on with »1…0« or »P+« or »P-«. Press the »... -
Page 15: Zap Function
TELEVISION OPERATION ___________________ Picture settings You can select four different picture settings. Select the desired picture setting from »User«, »Natural«, »Rich« or »Soft« with » «. – You can alter the »User« picture setting, see the ”Picture settings” chapter on page 12. Audio settings You can select six different audio settings. -
Page 16: Zoom Function
TELEVISION OPERATION ___________________ Zoom function This function enables you to enlarge the television or PC picture. Press » « to open the »MAIN MENU« menu. – The »MAIN MENU« menu appears. Select »Picture« with »P+« or »P-« and press »OK« to Picture confirm. -
Page 17: Changing The Picture Format
TELEVISION OPERATION ___________________ Changing the picture format The television automatically switches to the 16:9 format if this format is detected via the Euro-AV socket. Select the picture format with » «. The selected picture format, for example »16:9«, appears on the screen. –... -
Page 18: Pip Mode
TELEVISION OPERATION ___________________ PIP mode PIP (picture in picture) allows you to watch an inset picture from a second picture source in addition to the current channel. Other television stations, DVD players, video recorders or satellite receivers can be used as video sources. They must be connected to the input sockets on the back of the device. -
Page 19: Teletext Mode
TELETEXT MODE _______________________________ TOP text or FLOF text mode Press »TXT« to switch to teletext mode. You can directly select teletext pages with »1...0«. Note: At the bottom of the screen, you will see an information line consisting of a red, green and, depending on the station, yellow and blue text field. - Page 20 TELETEXT MODE _______________________________ Page stop A multiple page may contain several sub-pages, which are automa- tically scrolled by the transmitting station. Stop the sub-pages with » «. Press » « to quit the function. Calling up a sub-page directly If the selected teletext page contains further pages, the number of the current sub-page as well as the total number of pages is displayed.
-
Page 21: Convenience Functions
CONVENIENCE FUNCTIONS ______________ Convenience functions with the »Features« menu To open the »MAIN MENU« press » «. Select »Features« with »P+« or »P-« and confirm with »OK«. Note: Further operation is explained in the following sections. Child lock Features If the child lock is activated, the buttons on the television are not Parental lock VCR mode operable. -
Page 22: Using External Devices
USING EXTERNAL DEVICES _______________ Decoder or satellite receiver In order for the television to receive encoded programs from a privately operated station, a decoder is needed. Connecting a decoder or satellite receiver AV 3 AV 2 AV 1 VIDEO VIDEO PC-DVI ANT IN S-VHS... - Page 23 USING EXTERNAL DEVICES _______________ Using a video recorder, DVD player or SET-TOP box Switch on the video recorder, DVD player or SET-TOP box and select the function you wish to use. Press »AV«, select the channel »AV2« or » AV3« with »P+« or »P-«...
-
Page 24: Connecting Headphones
USING EXTERNAL DEVICES _______________ Selecting the signal for the Euro-AV (Scart) output With this setting you select whether the television channel or the audio/video will be transmitted via the Euro-AV socket AV3 or AV2. This enables you to transmit recordings from one external device (e.g. -
Page 25: Camcorder
USING EXTERNAL DEVICES _______________ Camcorder Connecting the camcorder Connect the yellow socket »AV4 Video« on the television and AV 3 the corresponding socket on the camcorder (VHS, Video 8) with AV 2 a cinch cable (picture signal) AV 1 VIDEO VIDEO ANT IN AV-4... -
Page 26: Pc Monitor Mode
PC MONITOR MODE __________________________ Connecting a PC AV 3 AV 2 AV 1 VIDEO VIDEO PC-DVI ANT IN S-VHS PC-IN DVI-D AV-4 AV OUT AUDIO IN AC IN Connect the socket »PC IN« or »DVI-D« (Amira 26, Amira 32) on the television to the corresponding socket on the PC using a VGA cable. -
Page 27: Special Settings
SPECIAL SETTINGS ______________________________ Setting television channels This setting is only necessary if a new channel comes on air and you do not want to change the order of your channels. The television channel can be set directly or using the search. Setting channels using the search Setup Press »... - Page 28 SPECIAL SETTINGS ______________________________ Fine tuning television channels The television automatically tunes itself to the best possible recepti- on. You may need to carry out manual fine tuning in areas where there is poor reception. Press » « to open the »MAIN MENU«. –...
-
Page 29: Re-Tuning All Television Channels
SPECIAL SETTINGS ______________________________ Re-tuning all television channels You can re-tune all the television stations, for example if you move Setup to another town. Press » « to open the »MAIN MENU«. Installation Program table Select »Setup« with »P+« or »P-« and confirm with »OK«. –... -
Page 30: Information
(Amira 23, Amira 32) 500cd/m (Amira 26) Max. resolution: WXGA 1280 x 768 (Amira 23, Amira 26) WXGA 1366 x 768 (Amira 32) Service information for dealers The television set may only be operated with the mains adapter sup- plied. -
Page 31: Troubleshooting
INFORMATION _____________________________________ Troubleshooting If the remedies given below do not work, please consult an authori- sed GRUNDIG dealer. Please bear in mind that malfunctions can also be caused by external devices such as video recorders or satel- lite receivers. Fault... -
Page 32: Additional Information For Units Sold In The Uk
INFORMATION _____________________________________ Additional Information for units sold in the UK. Units sold in the UK are suitable for operation from a 240V ac, 50Hz mains supply. The range of multi-system receivers is built to work in most European coun- tries. However, the mains plug and socket system for the UK differs from many European countries.
