Installation & Operation Manual
for Silver MD9 and MD9HT Series
Infrared Thermometers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Silver MD9 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Williamson Silver MD9 Series

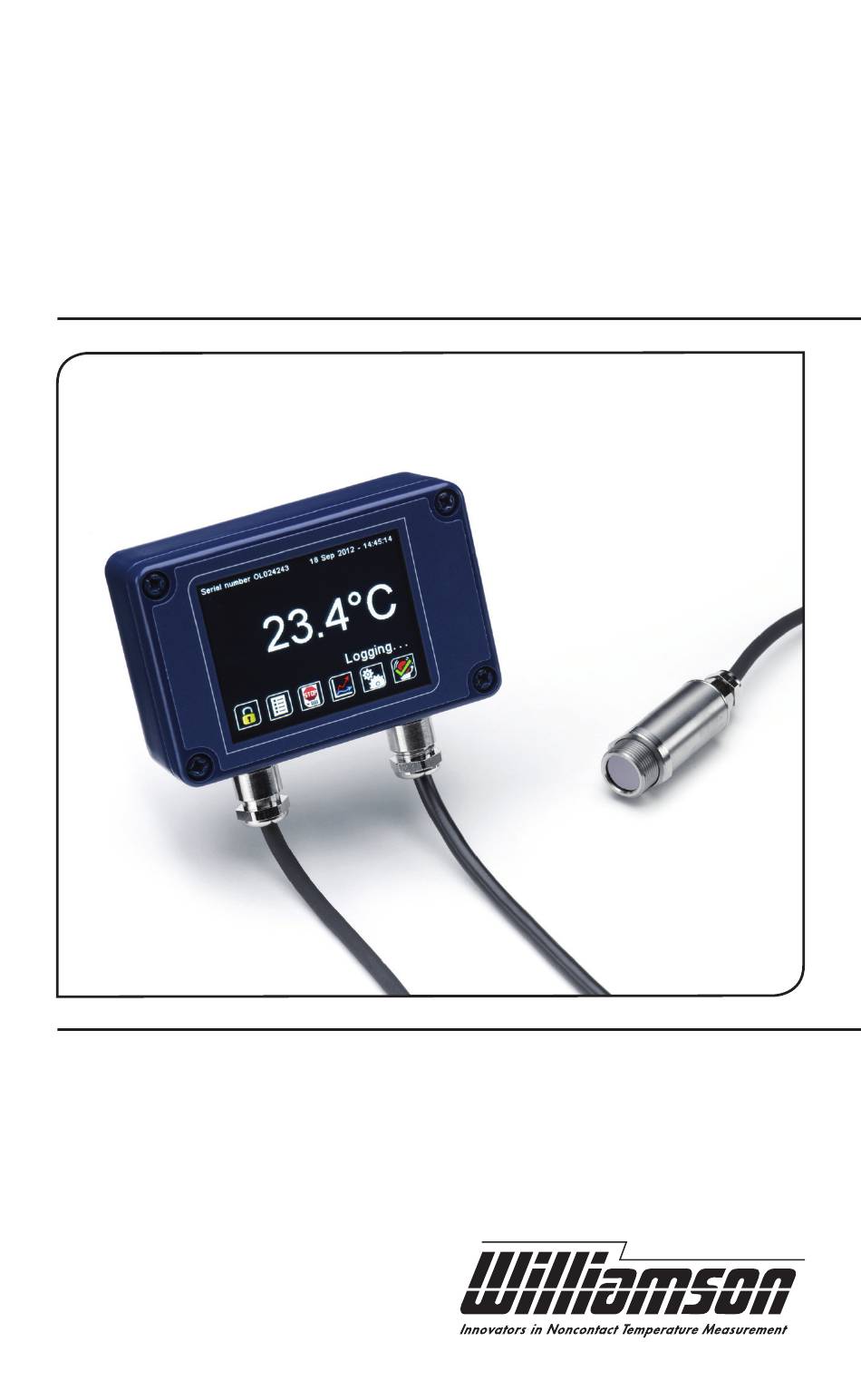

  • Page 1 Installation & Operation Manual for Silver MD9 and MD9HT Series Infrared Thermometers...
  • Page 2 The Silver MD9 Series is a range of miniature non-contact infrared temperature sensors with separate electronics modules. All models have an adjustable emissivity setting and are capable of measuring a wide variety of target materials, including food, paper, textiles, plastics, leather, tobacco, pharmaceuticals, chemicals, rubber, coal and asphalt.
  • Page 3: Model Numbers

    enVirOnMenTal Sensing Head Electronics Module Electronics Module (without touch (with touch screen) screen) IP65 (NEMA 4) IP65 (NEMA 4) – Environmental Rating See table of Model 0°C to 60°C 0°C to 60°C Ambient Temperature Range Numbers Maximum 95% Maximum 95% Maximum 95% Relative Humidity non-condensing...
  • Page 4: Field Of View

    sensinG head OperaTinG TeMperaTure ranGe MD9HA models: 0 to 180°C All other models: 0 to 60°C The high ambient temperature sensing head on MD9HA models is capable of withstanding temperatures of up to 180°C without cooling. It is available with 20:1 optics. There is no need to supply cooling air or water, and the miniature sensing head is much smaller than bulky, cooled sensors.
  • Page 5: Touchscreen Specifications

    exaMple: Md9hT-1-20-1-Ts Sensing Head Temperature Field of Output Touch Screen Operating Range View Interface Temperature Range (Optional) MD9HT Touch screen High Ambient Measurement 20:1 4-wire RS485 interface with two Temperature sensing temperature range divergent Modbus alarm relay outputs head (0°C to 180°C) -20 to 1000°C optics eMissiViTy adjusTMenT (MOdels WiThOuT TOuch screen)
  • Page 6 USeR inteRface (-tS MoDeLS) default View Temperature View Displays a large indication of the measured temperature. The background turns bright red when an alarm is activated. setting Press “°C” to switch to °F and vice versa. The units are changed throughout Temperature the interface.
  • Page 7 lock/unlock Prevents settings being changed via a four-digit numerical code. The default password is 1234. change password Enter, confirm and save a new four-digit code. Start/Stop Logging Manually begins or ends data logging (with MicroSD Card inserted). If Scheduled Start is enabled in Settings > Data Logging, then logging cannot be started manually.
  • Page 8 SettingS date & Time Change the date and time for data logging purposes. The clock is reset when the power is cycled unless a battery is fitted. Output processing averaging Set the time, in seconds, over which the measured temperature is averaged. period Note: averaging prevents the sensor from following rapid temperature changes.
  • Page 9 Enter the emissivity of the target. Target emissivity can be determined setting experimentally, or estimated using an emissivity table. For more information, contact Williamson. Minimum: 0.2. Maximum: 1.0. enable If enabled, compensates for errors caused by reflected energy from hotter or Reflected colder objects.
  • Page 10: Log Reset

    SettingS > aLaRMS alarm 1 and alarm 2 alarm set The temperature at which the alarm is triggered. Minimum: -20°C. Maximum: point 1000°C. hysteresis The temperature difference between the Alarm Set Point and the reset temperature. Hysteresis is only used when Automatic Reset is enabled. Please see the diagrams below for more information Minimum: 0°C (hysteresis disabled).
  • Page 11: Data Logging Specifications

    alarM OperaTiOn WiTh hysTeresis & auTOMaTic reseT Low Alarm with Automatic Reset High Alarm with Automatic Reset Temperature Temperature Alarm Set Point Hysteresis Hysteresis Alarm Set Point Time Time Alarm triggered Alarm reset Alarm triggered Alarm reset daTa lOGGinG (-Ts MOdels) The Silver MD9 can be used as a standalone data logger.
  • Page 12: Data Log Files

    inStaLLation of MicRoSD caRD anD BatteRy MicroSD Card battery (use 1 x bR 1225 3V) daTa lOG Files Data is saved to the MicroSD Card in .csv format. This file format can be opened or imported by spreadsheet software such as Microsoft Excel. A new folder is created on the MicroSD Card for each day that data is logged.
  • Page 13 The emissivity setting of the sensor should be adjusted to compensate for the presence of the window. This accessory is suitable for use in ambient temperatures of 0 to 100°C. For more information, please contact Williamson.. Model number: PWS Microsd card: Stores logged data.
  • Page 14: Installation

    inStaLLation The installation process consists of the following stages: Preparation Mechanical installation Electrical installation Please read the following sections thoroughly before proceeding with the installation. pRepaRation Ensure that the sensor is positioned so that it is focused on the target only. Sensor Target greater BEST...
  • Page 15 To minimise electromagnetic interference or ‘noise’, the sensor should be mounted away from motors, generators and such like. pOWer supply be sure to use a 24 V DC (100 mA) power supply. Mechanical insTallaTiOn All sensors come with a 1 m cable and a mounting nut as standard. Longer cables are available to order.
  • Page 16 eLectRicaL inStaLLation WiRing (aLL MoDeLS) Check the distance between the sensing head and the electronics module, and between the electronics module and the instrumentation. If necessary, the sensor can be ordered with a longer cable between the sensing head and the electronics module. The output cable from the electronics module should have an outer diameter between 3.0 and 6.5 mm, with conductors of size 28 to 18 AWG.
  • Page 17 address length description r/W/MW (words) 0x06 Unfiltered object temperature 0x08 Sensor temperature 0x0A Maximum temperature over hold period 0x0C Minimum temperature over hold period 0x0E Average temperature over hold period 0x10 Filtered object temperature 0x12 PCb temperature 0x14 Emissivity (1 LSb = 0.0001) Minimum 0.2000, Maximum 1.0000 0x16 Reflected temperature...
  • Page 18: Operation

    8-14 microns. The emissivity setting of the sensor should be adjusted to compensate for the presence of the window. Please contact Williamson for more information on using the sensor with a window. ›...
  • Page 19: Maintenance

    Contact our Service Department before returning any equipment. In many cases, problems can be solved over the telephone. If the sensor is not performing as it should, try to match the symptom below to the problem. If the table does not help, call Williamson for further advice.
