Summary of Contents for Williamson U2-1

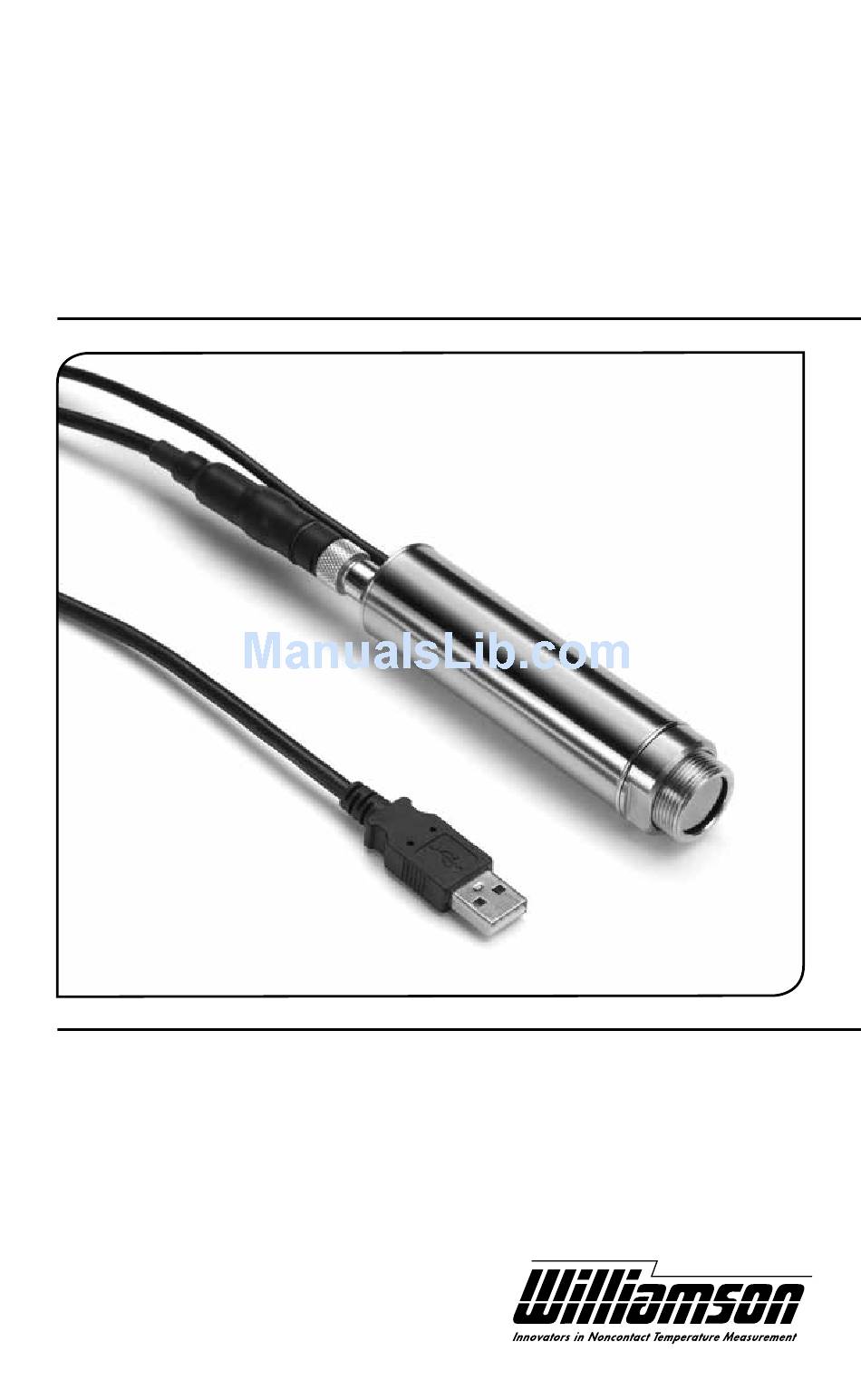

- Page 1 Installation & Operation Manual for SilverU2 Series Infrared Thermometer...
-
Page 2: Specification General
They are especially suited to low-emissivity targets such as steel rollers and other metal surfaces, even at low temperatures. Specification General U2-1: 45°C* to 300°C (U2-1-15-0 only) Temperature Range U2-2: 100 to 400ºC (U2-2-15-0 only) U2-3: 250°C to 1000°C U2-4: 450°C to 2000°C... -
Page 3: Optical Chart
acceSSorieS A range of accessories to suit different applications and industrial environments is available. These may be ordered at any time and added on-site. The accessories consist of the following parts . Fixed mounting bracket Adjustable mounting bracket Air purge collar Laser sighting tool optionS The following options are available. -
Page 4: Ambient Temperature
The sensor must be installed in a location where energy from lamps, heaters and sunlight cannot be reflected from the target into the lens. The use of shields may help in this respect. For further information and assistance contact Williamson. aMbient teMperature The sensor is designed to operate in ambient temperatures from 0°C to 70°C. -
Page 5: Electrical Interference
electrical interFerence To minimise electromagnetic interference or ‘noise’, the sensor should be mounted away from motors, generators and such like. WirinG Check the distance between the sensor and the indicating/controlling device. If necessary, the Silver U2 sensor can be ordered with a longer output cable attached. mecHanicaL inStaLLation All sensors come with a 1 m cable and a mounting nut. -
Page 6: Air Purge Collar
air purGe collar The air purge collar below is used to keep dust, fumes, moisture, and other contaminants away from the lens. It must be screwed in fully. Air flows into the 1/8” BSP fitting and out of the front aperture. Air flow should be no more than 5 to 15 litres/ min. -
Page 7: Installation
Power Supply Blue Display/ Controller Green Yellow Power Supply Blue Display/ Controller Green Yellow SiLverview Software systeM reQuireMents • SilverView software is designed to run under Windows. Suitable versions are Windows 2000, Windows XP, Windows Vista and Windows 7. • The recommended minimum computer specification is: Intel Pentium processor VGA display with 640x480 resolution... - Page 8 [Setup] → [Emissivity] Emissivity can then be set to a value between 0.1 and 1.0, or selected from a pre- set list of materials by selecting [Data]. MiniMuM Measurable TeMperaTure (U2-1-15-0 only) Graph showing the minimum measuarable object temperature (T ), determined by surface emissivity (ε) and...
-
Page 9: Operation
Blow off loose particles (if not using the air purge accessory) with an air ‘puffer’. Guarantee Williamson warrants each instrument it manufactures to be free from defect in mate- rial and workmanship under normal use and service for the period of two years from the date of purchase. - Page 10 ›...
