AMERLIFE 1006030025A Assembly Instructions Manual

Led bookcase
Hide thumbs

Advertisement

Quick Links

Download this manual

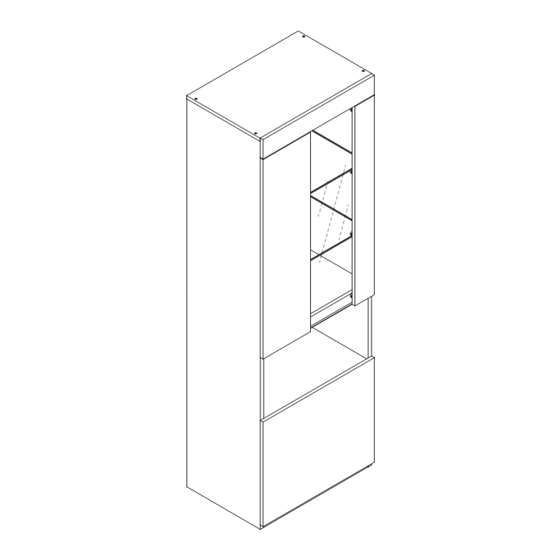

LED Bookcase
Assembly Instructions
NOTE:
Comes with TWO PACKAGES with TWO
TRACKINGS,may NOT be delivered at the
same time.
Dimensions
Width - 23.6inch
Depth - 16.1inch
Height - 70.9inch
Important
– Please read these instructions fully before starting assembly
- Please keep for future reference
1006030025A
1006030026A
Box A:
Box B:
Issue 3 -08/06/2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1006030025A and is the answer not in the manual?

Questions and answers

Related Manuals for AMERLIFE 1006030025A

Summary of Contents for AMERLIFE 1006030025A

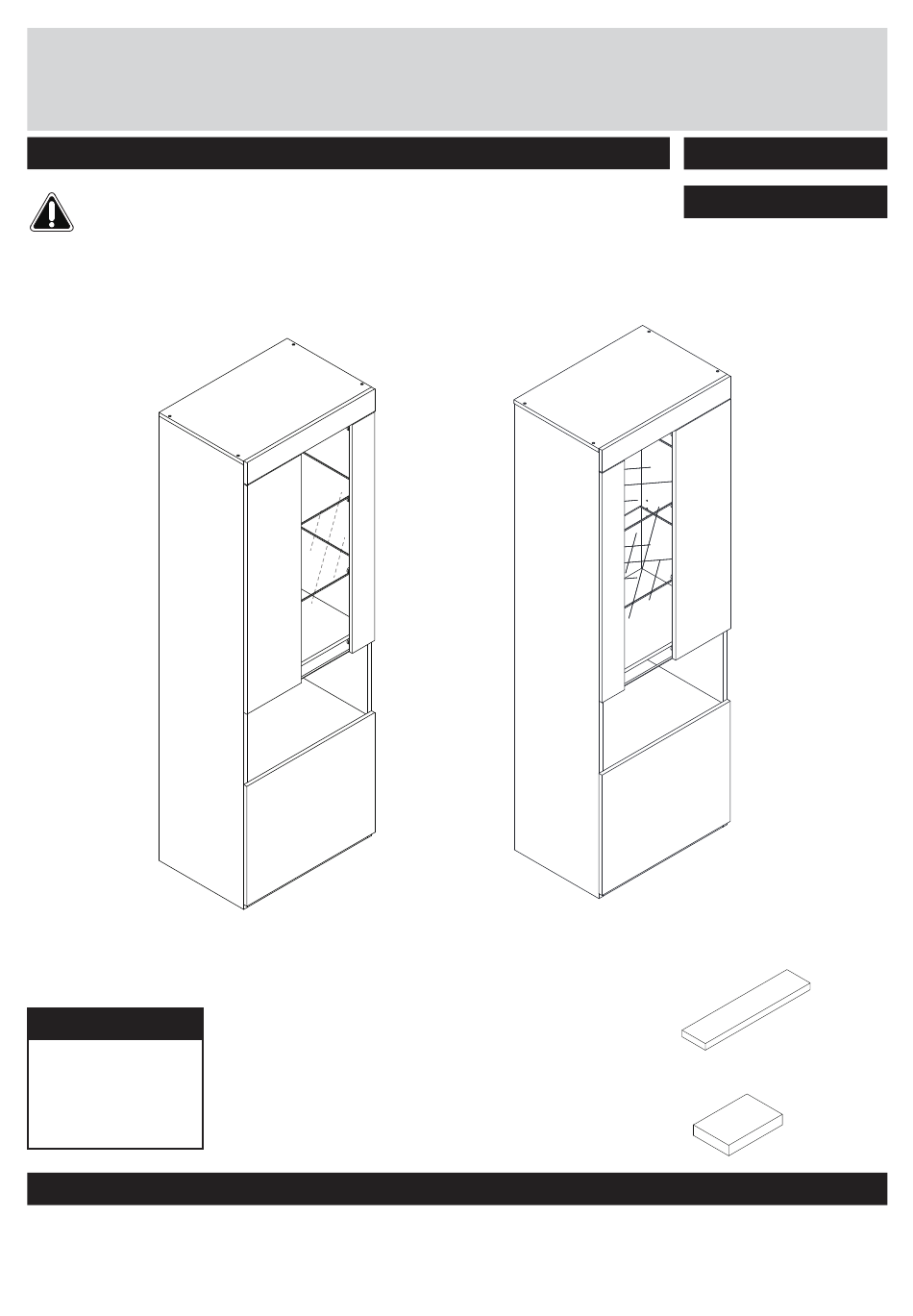

  • Page 1 LED Bookcase 1006030025A Assembly Instructions - Please keep for future reference 1006030026A NOTE: Comes with TWO PACKAGES with TWO TRACKINGS,may NOT be delivered at the same time. Dimensions Box A: Width - 23.6inch Depth - 16.1inch Height - 70.9inch Box B: Important –...
  • Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce components and tools listed on or put weight on the product, the likelihood of the following pages.
  • Page 3 Components - Panels Please check you have all the panels listed below Box A: (178.5 x 39.4 x 1.8cm) x 2 (178.5 x 39.4 x 1.8cm) x 2 (56.2 x 39.2 x 1.5cm) x 1 (56.2 x 37.7 x 1.5cm) x 1 (56.2 x 38.2 x 1.5cm) x 1 (97.3x 57.2 x 0.25cm) x 2 Box B:...
  • Page 4 Components - Fittings Note: may be supplied than are required. 8*30mm Wooden Dowel x 48 7*39mm Cam Bolt x 30 Cam Lock x 30 5*40mm Screw x 8 Wall attach bracket x 4 Protective Feet x 8 Glass Shelf Clamp x 16 3*16mm Back Panel Stiffener x 20 Hinge x 10 3.5*14mm Screw x 60...
  • Page 5 DO NOT OVER TIGHTEN. NE PAS SERRER EXCESSIVEMENT. Adjusting Hinges Hinge adjustment: a: To move the top panel up or down, loosen screws shown and move top panel to suit b.To move the top panel in or out, loosen screws shown and move top panel to suit.
  • Page 6 Assembly Instructions...
  • Page 7 Assembly Instructions Step 1 A x 40 CAM-LOCK Tighten until shoulder is flush with panel.Do not overtighten Shoulder or undertighten(see example below) NO GAP B x 24 Panel Panel Insert wooden dowel (A) into part (1, 2), and attach cam bolt (B) to part (1, 2).
  • Page 8 Assembly Instructions Step 2 A x 4 CAM-LOCK Tighten until shoulder is flush with panel.Do not overtighten Shoulder or undertighten(see example below) NO GAP B x 2 Panel Panel Insert wooden dowel (A) into part (3), and attach cam bolt (B) to part (3). Step 3 C x 2 Attach part (4) to part (3), then insert and secure cam lock (C) to part (4) to lock it.
  • Page 9 Assembly Instructions Step 4 L x 4 M x 1 Attach LED strip light to part (6) using LED mounting bracket (L). Step 5 C x 12 Edge Banding Here Attach part (3, 5, 6) to part (2), then insert and secure cam lock (C) to part (3, 5, 6).
  • Page 10 Assembly Instructions Step 6 Slide the back panel (7) into grooves. Step 7 C x 12 Attach part (1) to part (3, 5, 6), then insert and secure cam lock (C) to part (3, 5, 6).
  • Page 11 Assembly Instructions Step 8 F x 8 Insert protective feet (F) to part (1, 2). Step 9 Note: three cable outlets are on the same side. Slide back panel (8) into grooves.
  • Page 12 Assembly Instructions Step 10 D x 4 Attach wall attack bracket (D) to part (9) using screw (D). Ste p 11 E x 8 Attach part (9) to part (1, 2) using screw (E).
  • Page 13 Assembly Instructions Step 12 G x 20 Attach plastic wedge (G) to back panels and secure. Step 13 A x 4 CAM-LOCK Tighten until shoulder is flush with panel.Do not overtighten Shoulder or undertighten(see example below) NO GAP B x 4 Panel Panel Insert wooden dowel (A) to part (10), and attach cam bolt (B) to part (10).
  • Page 14 Assembly Instructions Step 14 C x 4 Attach part (10) to part (9), then insert and secure cam lock (C) to part (9) to lock it. Step 15 M x 1 Attach clip lamp to part (11)
  • Page 15 Assembly Instructions Step 16 H x 16 Attach glass shelf clamp (H) to part (1, 2). Step 17 Slide part (11) through glass shelf clamp (H), and tighten the clamp.
  • Page 16 Assembly Instructions Step 18 N x 16 Bolt Washer Attach glass (13) to parts (12, 14) using bolts and rubber washers with a screwdriver. Note: you may assemble all bolts loosely during assembly, once glass (13) and parts (12, 14) are attached should you fully tighten all the bolts.
  • Page 17 Assembly Instructions Step 19 J x 20 I x 10 Use screw (J) to secure hinge (I) to part (12, 15). Step 20 J x 40 K x 5 Use screw (J) to secure hinge (I) to part (1) with a screwdriver, and then attach door bumpers(K) to part (2).
  • Page 18 Assembly Instructions Step 21 J x 20 K x 5 Repeat the procedures from the last step on the second bookcase. Step 22 M x 1 Connect LED lights with the extended cable.
  • Page 19 Assembly Instructions Step 23 M x 1 Connect the extended cable with the power cable. Step 24 D x 4 Drill holes on the wall through wall attach bracket (D).
  • Page 20 Assembly Instructions Step 25 D x 4 Insert wall plugs into the wall and secure the bookcase to the wall using screw (D). Assembly is completed.
