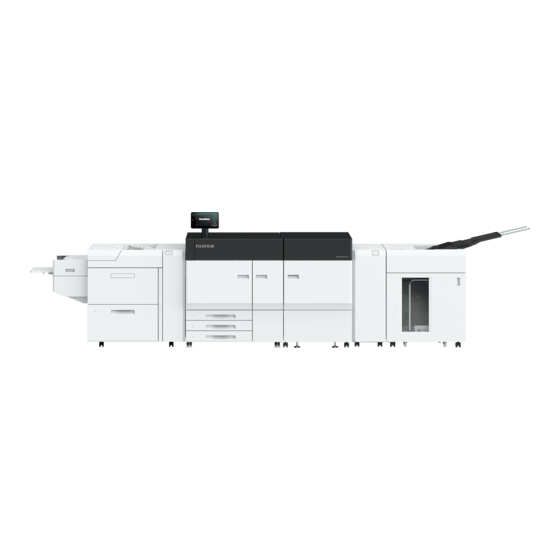

FujiFilm Revoria Press EC1100 Reference Manual

Main unit
Hide thumbs Also See for Revoria Press EC1100:
Table of Contents

Advertisement

Quick Links

Download this manual
Reference Guide
Main Unit
Revoria Press EC1100
May 2023 GM1772E7-1 Edition 1
FUJIFILM Business Innovation Corp.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Revoria Press EC1100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FujiFilm Revoria Press EC1100

Summary of Contents for FujiFilm Revoria Press EC1100

  • Page 1 Reference Guide Main Unit Revoria Press EC1100 May 2023 GM1772E7-1 Edition 1 FUJIFILM Business Innovation Corp.
  • Page 2 Other company names or product names are registered trademarks or trademarks of each company. FUJIFILM and FUJIFILM logo are registered trademarks or trademarks of FUJIFILM Corporation. Revoria, Revoria logo, and Revoria Press are registered trademarks or trademarks of FUJIFILM Business Innovation Corp.
  • Page 3 Notations in Manual The following symbols are used in this manual. Indicates important information you have to know or be reminded before Important operations. Indicates supplemental information useful for operations. Note Indicates reference destinations. Refer “ ” Names and inputs of folders, files, apps, and functions. Also reference pages of the manual.

  • Page 4: Before Using The Machine

    Before Using the Machine Device Components Front Component Function Power Switch Powers on/off the printer. Control Panel Buttons and touch screen to operate the printer. Refer For detailed information about the control panel, refer to “Reference Guide - Operations”. Left Cover Open this cover to clear paper jams.
  • Page 5 Inside The back side Component Function Main Power Switch Switches the main power of the machine on and off. Always follow the instructions by the system administrator. Important Always switch the power off before switching the main power off. Toner Cartridge Contains the toner (image forming powder).

  • Page 6: Control Panel

    Control Panel Refer For Control Panel, refer to the “Reference Guide - Operations”. Component Function Power Button The power switches on. Note When “Please wait...” is displayed, the machine is  warming up. The use of machine is not available during this time.
  • Page 7 Assured Image Area Assured Image Area is the area where FUJIFILM Business Innovation Corp. assures image quality. Note When an image with high area coverage is placed in the area described above, Fusing Unit jam may be ...
  • Page 8 Item Size Image printable area Maximum fed from Printer Unit Trays (1 - 3) 323 x 482 mm fed from High Capacity Trays / 326 x 482 mm Air Trays (6 - 9) Assured image area Maximum 317 x 482 mm Image Loss Area Front edge Paper type...

  • Page 9: Recommended Paper

    Paper Recommended Paper Standard paper Paper name Paper type setting for paper tray Paper weight (g/m J paper Uncoated Colotech Plus Uncoated OS Coat W Coated Colotech Plus Gloss Coat Coated Colotech Plus Gloss Coat Coated See the Recommended Paper List in the Media Library for non-standard papers supported by this printer.
  • Page 10 Size (short edge x long edge) 1 - 3 6 - 9 L6/L8       SRA3 (320 x 450mm)       A3 (297 x 420mm)        A4 (210 x 297mm) ...

  • Page 11: Paper Weight

    High Capacity Trays / Air Trays (6 - 9) Width: 98 to 330.2 mm Length: 148 to 488 mm Long Paper Tray (6 and 8) Width: 210 to 330.2 mm Length: 210 to 1,200 mm Inserter Tray (T1) Width: 182 to 330.2 mm Length: 148 to 488 mm Important For Bypass Tray, paper size 146 to 147.9 mm landscape or larger can be loaded but the image quality and...

  • Page 12: Paper Type

    Important Paper weight 52 to 400 g/m can be loaded for some of the types although they are not supported; In this  case the image quality and paper feed performance cannot be guaranteed. For coated paper, we only guarantee printing on paper weighing 72 g/m or heavier.

  • Page 13: Storing And Handling Paper

    Storing and Handling Paper Storing paper Follow the guidelines below since paper is susceptible to moisture in the air and easily deformed by impacts. Store paper in a place of low humidity. Paper that has absorbed moisture can create paper jams or ...

  • Page 14: Loading Paper

    Basic Operations of the Machine Loading Paper After loading the paper, be sure to set the information of the loaded paper in [Tray Settings] window on Media Library Manager. Important Do not place paper or other objects in the reserved space of the tray. It may cause paper jams or machine malfunction.
  • Page 15 Pinch the two Guide Clips, and adjust to the correct paper size. Fan a stack of paper, face the print surface down, and then load the paper with edges aligned according to the direction of the arrow. Important Do not load paper above the maximum fill line. It may cause paper jams or machine malfunction.

  • Page 16: Outputting Paper

    Outputting Paper Printed Side A printed side is the side of paper where an image is printed for 1-sided printing (or page 1 for 2- sided printing). Which printed side to be used is specified on your Print Server. For detailed information on how to regard the method of specification, refer to customer documentation supplied with Print Servers.

  • Page 17: Purge Function

    Offsetting Note This feature applies to Offset Catch Tray only. Long Catch Tray cannot be used to offset outputs. Each set of printed paper is staggered in the output tray so that you can separate the stack easily. Which offsetting to be used is specified on your Print Server. For detailed information on how to regard the method of specification, refer to customer documentation supplied with Print Servers.
  • Page 18 Banner Print Extension Kit Long paper can be housed in Long Catch Tray without letting the paper front ledge dangled. Paper size Tray capacity Width: 200 to 330.2 mm Up to 864 mm: 100 sheets Length: 488.1 to 1,200 mm Up to 1,200 mm: 10 sheets Note The values are based on Colotech+90.
  • Page 19 When not using the kit Hang the kit on the holder at the side. 3.2 Outputting Paper...

  • Page 20: Problem Solving

    Problem Solving Printing Troubles When paper jams or any other troubles with the printer unit occurs, follow the procedures shown in the touch screen. If the machine does not work properly after taking the procedure, contact your local representative. Troubles with the Printer Unit Symptom Cause Remedy...
  • Page 21 Does the loaded paper Load the corresponding paper and print the correspond with the media set job again. with Media Library Manager? Refer "Revoria Press EC1100 Media Library Manager Manual" Troubles with the Trays Symptom Cause Remedy Unable to insert or Did you open a cover or turn Do not forcibly insert or remove the Tray.
  • Page 22 Symptom Cause Remedy Tray bottom plate Is paper loaded correctly? First remove all the paper from the Tray, and does not move up then reload it correctly. Slide the long-side (High Capacity and short-side paper guides to just touch Trays) the edges of the paper.
  • Page 23 (problems in how Refer the paper is "Revoria Press EC1100 Media Library loaded) Manager Manual" Are the paper guides set Load the paper correctly, and align the correctly? paper guides with the paper.

  • Page 24: Image Quality Trouble

    There is a possibility of Specify each item for [Advanced transfer defect. Settings] on Media Library. Refer "Revoria Press EC1100 Media Library Manager Manual" The drum cartridge has Contact our local representative to deteriorated or is replace the Drum Cartridge.
  • Page 25 Symptom Cause Remedy Dirt appears at equal intervals. The paper path is dirty. Print a few pages to remove the dirt. The Fusing Module may Clean the Fusing Module on a regular be dirty. basis. The drum cartridge has Contact our local representative to deteriorated or is replace the Drum Cartridge.
  • Page 26 Symptom Cause Remedy White areas or white or colored The paper is damp. Replace paper. stripes appear. The paper is unsuitable. Load suitable paper. The entire output is faint. Multifeed (multiple Fan the paper well and load it again. sheets transferred simultaneously) occurs.
  • Page 27 Prints on the front and back Alignment (registration Create an alignment profile to correct side of the paper are off- adjustment) is not the misregistration. center. properly set. Refer "Revoria Press EC1100 Media Library Manager Manual" 4.2 Image Quality Trouble...

  • Page 28: Maintenance

    Maintenance Consumables Consumables recommended by our company are manufactured under the standards suitable for this machine. Using consumables not recommended by our company may affect print quality or performance provided by the product. Use consumables that our company recommends for this machine.

  • Page 29: Toner Cartridges

    Refer For information on toner cartridges and waste toner containers, refer to "Safety Notes" in the "User's Manual". Toner Cartridges Open the toner cover. Gently pull out the toner cartridge of the color displayed in the message, holding the bottom of the cartridge. Important Pull out the toner cartridge gently.

  • Page 30: Waste Toner Container

    Waste Toner Container The waste toner container collects residual toner left on the drum after printing. When it is time to replace a toner container, a message appears on the error message area telling you that the toner container should be replaced. Open the upper center cover, then the lower center cover.

  • Page 31: Touch Panel Display

    Outside the Main Unit Exterior Wipe the exterior with a soft, moistened, and tightly-squeezed cloth. When stains cannot be removed easily, wipe them lightly with the soft cloth slightly moistened with a thin neutral detergent solution. Wipe the moisture off with a dry soft cloth. Touch Panel Display Wipe lightly with a dry soft cloth.
  • Page 32 Grip lever [2] and gently pull out the transfer unit toward you until it stops. Cleaning Exit Chute Important Clean gently. If you perform with too much force, the ribs or the metal fingers for releasing paper might  be broken. Do not give damage on the roll near by.

  • Page 33: Paper Jams

    Paper Jams If there is a paper jam, the printing will be canceled. The Error Message area of the touch screen will show the affected area in red, along with the message. If the paper jams, remove the jammed paper following the on-screen instructions. Gently remove the paper being careful not to tear it.
  • Page 34 Grip lever [2] and gently pull out the Transfer Module toward you until it stops. Note If the paper is curled and caught in the Transfer Module, stop pulling when the jammed paper is visible, and then continue to pull it out while holding down the paper with a hand. Remove jammed papers.
  • Page 35 Area [2c] Remove jammed papers leftward. Important If you pull out the paper in the opposite way, smudge will remain inside. Note If you cannot see any jammed paper, check lever [2b] and [2d]/ [2e] as well. Lever [2d]/[2e] Open lever [2d] upward ( ) and lever [2e] to the right ).

  • Page 36: Paper Tray

    Push the transfer unit completely to the back ( ) and turn the lever [2] to the left ( Close the left cover, then the upper center cover. Paper Tray Follow the steps below to clear paper jams in Tray. Pull out the Tray where the paper jam occurred toward you until it stops.
  • Page 37 Open the right side cover of the High Capacity Feeder. Open lever [1d] upward ( ) and remove jammed papers Return lever [1d] to its original position. If you cannot see any jammed paper, open the cover on the lower right (the cover on the left side of the printer unit). Remove jammed papers.

  • Page 38: Cooling Unit

    Cooling Unit Follow the steps below to clear paper jams in the Cooling Unit. Open the right side cover of the printer unit. Turn the lever [4] to the right until it is horizontal. Grip lever [4] and gently pull out the cooling unit toward you until it stops.
  • Page 39 If you have difficulty in removing jammed papers, turn knob [4a] clockwise ( ), and remove jammed papers Note If you cannot see any jammed paper, check levers [4b] / [4d] as well. Lever [4b]/[4d] Open lever [4b] to the right ( ) and remove jammed papers ( If you have difficulty in removing jammed papers, open...

  • Page 40: Right Cover

    Return lever [4c] to its original position. Note If you cannot see any jammed paper, check lever [4d] as well. Push the cooling unit gently into the machine until it stops Turn the lever [4] to the left ( Close the right cover. Right Cover Follow the steps below to clear paper jams inside the right cover.
  • Page 41 If you have difficulty in removing jammed papers, turn knob [3b] clockwise ( ), and remove jammed papers rightward ( Note There may be extra sheets remaining in the printer unit. Be sure to turn the knob at least 3 times to check for extra sheets. Return lever [3a] to its original position.

  • Page 42: Output Area

    Lever [5c], Knob [5d] Open lever [5c] downward ( ) and remove jammed papers ( If you have difficulty in removing jammed papers, turn knob "5d" clockwise ( ), and remove jammed papers Return lever [5c] to its original position. Note If you cannot see any jammed paper, check lever [5a] as well.
  • Page 43 Long paper Long paper (lightweight paper, especially) can easily be torn during removal of the paper sheet. Be sure to cut the jammed paper sheet with scissors or a cutter before you can remove the cut sheets. When paper remains on the Paper Tray 5 (Bypass) of High Capacity Feeder Open the Upper Cover of the Paper Tray 5 (Bypass) and remove the jammed paper.
  • Page 44 When paper is jammed in delivery unit Note When long paper is jammed, the error indicator and/or message displayed on the details screen may be different from the actual jam state. For this reason, make sure to perform paper jam processing on all the devices in which paper may remain.

  • Page 45: Main Specifications

    Appendix Main Specifications This section lists the main specifications of the machine. Note that the specifications and the appearance of the product may change without prior notice. Note The specifications are not intended to guarantee the image quality performance and feeding performance of all papers.

  • Page 46: Offset Catch Tray

    Item Specification Paper Tray Capacity Maximum (sheets) 10,300 (Standard + Chained Air Suction Feeder C1-DS-R + Chained Air Suction Feeder C1-DS-L) Note This value applies if 90 g/m paper is used. Power supply AC 200-240V, 24A 50/60Hz Maximum power 5.76 kW consumption Dimensions (mm) Width 2,671 x Depth 834 x Height 1,370...
  • Page 47 Long Catch Tray Item Specification Paper size Standard Size Max: A3, 11 × 17" Min: A6 Custom Size 98 × 148 mm to 330 × 1,200 mm 52 to 400 Paper weight (g/m Paper Capacity (sheets) 300 (Paper length: up to 488 mm) 100 (Paper length: from over 488 mm to 864 mm) 10 (Paper length: from over 864 mm to 1,200 mm) Note...
