3. RJ45 Remote Cable Testing
This function is ideal for testing network cable runs. It is also useful for testing
connections between wall outlets and patch panels.
3.1. Connect the wall plate to the source RJ45 socket (2) on the transmitter unit
using the RJ45 adaptor provided (see Fig. A) and use an RJ45 patch lead to
connect the patch panel to the RJ45 socket (11) of the remote receiver unit (see
Fig. B).
3.2. Slide the test mode switch (3) on the side of the transmitter unit up one click
for standard speed testing. Slide the test mode switch (3) up another click for
fast testing.
3.3. Read the test result from the LED display on the remote unit.
4. RJ45 Local & Remote Cable Testing Results
The LED display on the remote unit will scan in sequence: 1, 2, 3, 4, 5, 6, 7, 8. If
the cable run is not correctly wired one or more lights will not light up or they will
light up out of sequence.
Computer
Network Cables
Telephone
Cables
Other Metal Connection Cables

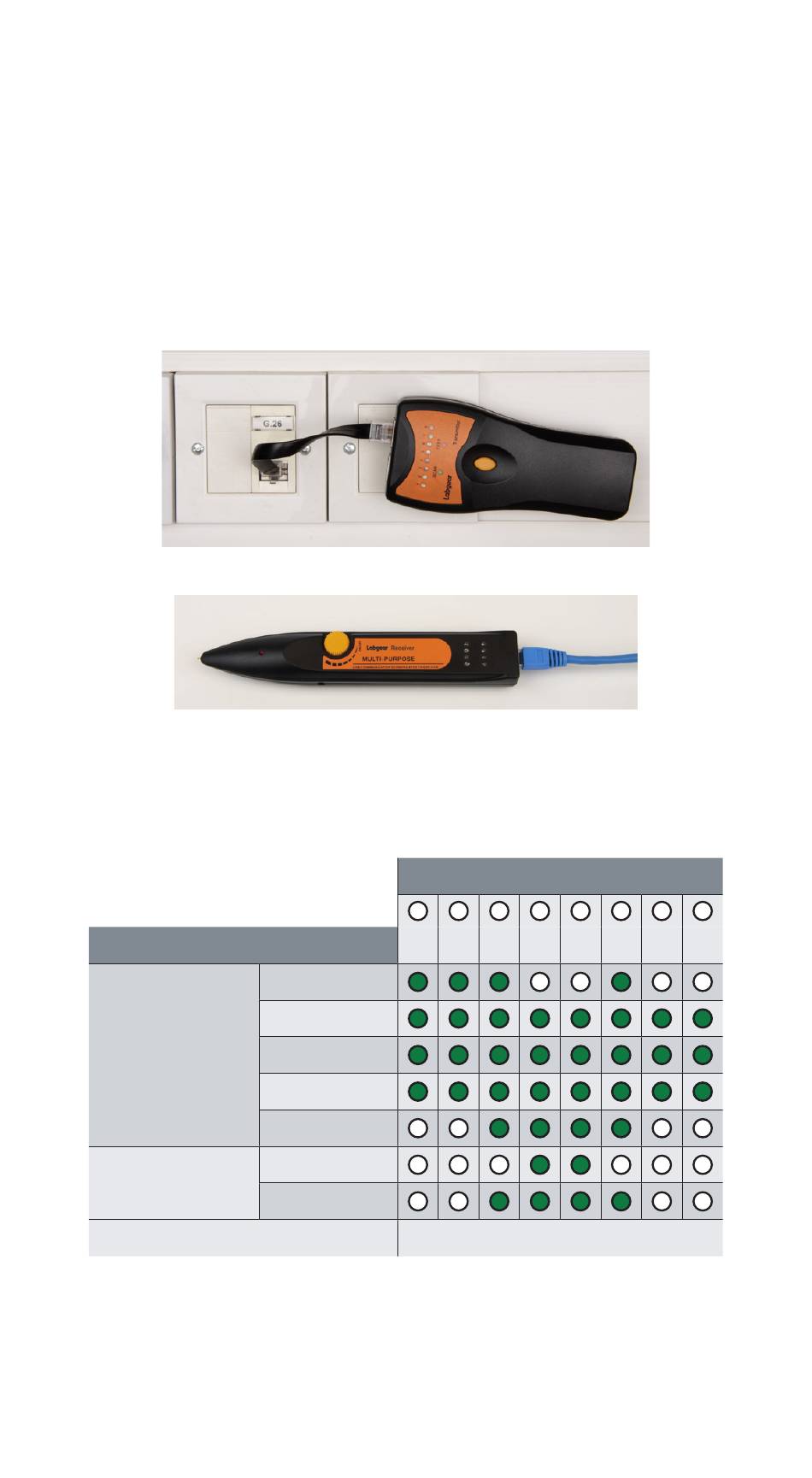

Fig. A
Fig. B
Cable Type
IEEE 10Base-T
EIA/TIA 568A
EIA/TIA 568B
AT&T 258A
TokenRing
2 Pin
4 Pin
Indicator Light Status
1 2 3 4
Decided by its detail situation.
5 6 7 8
