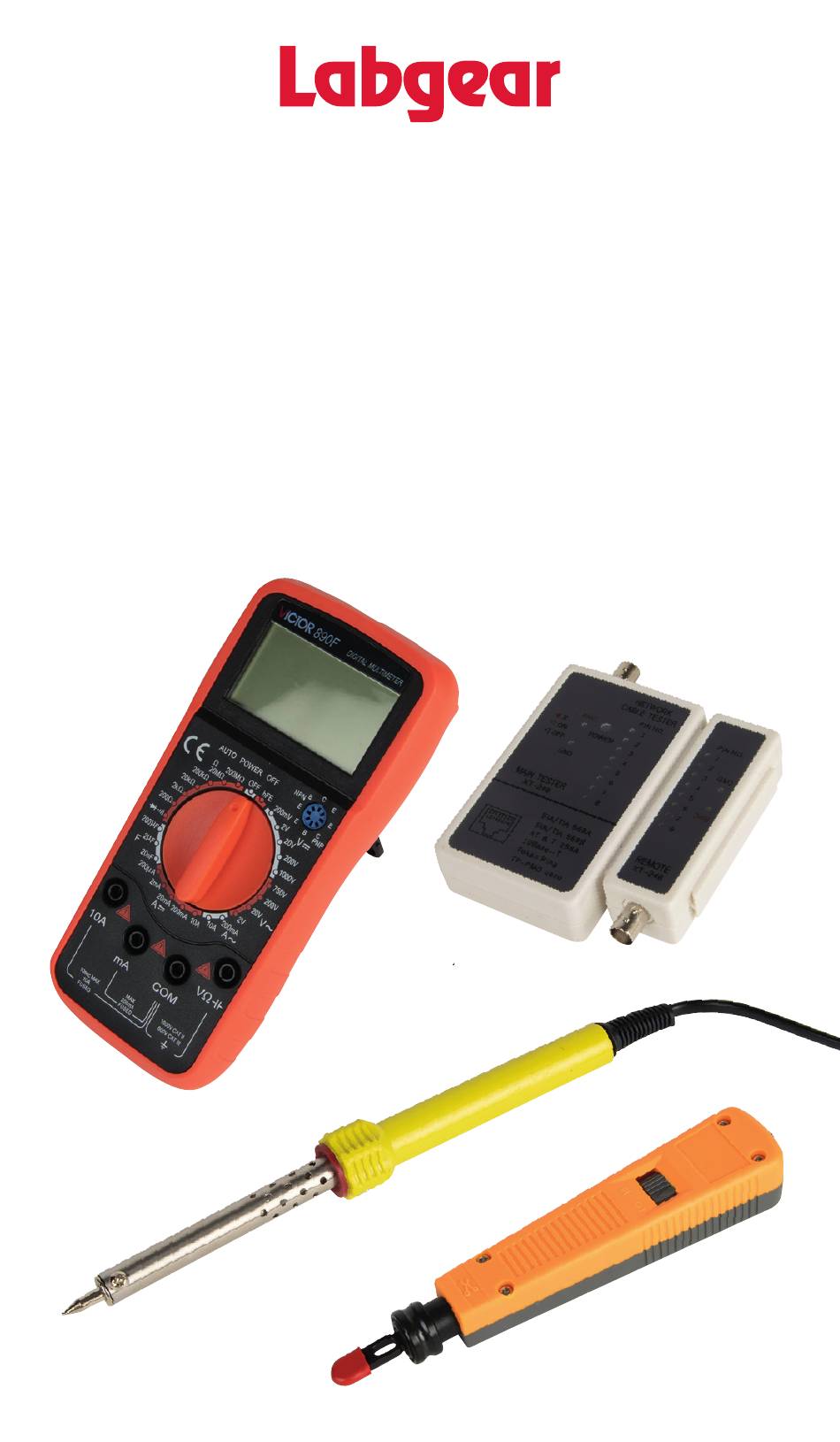

- Page 1 76615PI Telephone/Network Complete Tool Kit Multimeter/Cable Tester Punch Down Tool/Soldering Iron User Guide...
-
Page 2: Panel Layout
1. Overview This multimeter is characterized by a compact rugged construction with protective holster and stand. The 3½ digit LCD Screen with 23mm display gives clear readings. Features include dual slope A/D converter using C-MOS technology for auto-zeroing, polarity selection and over-range indication. Before use you will need to fit a 9V PP3 battery (not supplied) in the compartment located on the back of the meter. -
Page 3: Safety Warnings
3. Safety Warnings • Do not expose the device to water. Wipe it dry immediately if it should get wet. • If the unit is damaged in any way or malfunctions do not use. Consult a qualified service engineer. • Never apply more than 1000VDC or 700V AC between an input jack and Earth. - Page 4 5.1. 3 When setting the function switch, if the range is not known beforehand, always set the FUNCTION switch to the highest range and work down. 5.1. 4 When “0L” is displayed, this indicates overrange/overload and the FUNCTION switch must be set to a higher range. 5.2 DC Voltage Measurement 5.2.1 Connect the BLACK test lead to the “COM”...
- Page 5 Range Resolution Overload protection: 0.2A/250V fuse 1µA 10A/250 fuse 10A up to 15 seconds 20mA 10μA Note: [1] 10A range: not fused 200mA 100μA 10mA 5.5 AC Current Measurement 5.5.1 Connect the BLACK test lead to the “COM” socket (5) and the RED test lead to the “mA”...
- Page 6 Note: 1. Capacitors must be discharged before being connected to probes. 2. When testing large capacitance, note that there will be a certain time lag before the final indication. 3. Do not connect to an external voltage or charged capacitor (especially larger capacitors ) Range Resolution...
-
Page 7: Maintenance
Fuse 200mA/250V Fuse Battery Compartment Insert 1x 9V PP3 9. Accessories [1] Test Leads: Rating 1000V 10A [2] Fuses: F-200mA/250V and F-10A/250V - fitted [3] User Guide [4] Holster For further information or any queries please contact Technical Support: www.labgear.co.uk/support... -
Page 8: Main Features
Network Cable Tester Guide WARNING! • This cable tester should NOT be used to test powered cables. • If pin activity lights appear weak, replace the battery (1x PP3 9V battery, not included.). • Testing cannot be verified if connector ends are not fully inserted into the units. -
Page 9: Before Use
Introduction The tester has two main functions: 1) Testing individual leads RJ45 or BNC: Cables with both ends accessible can be quickly be tested without the need to separate the remote unit from the main unit. 2) Testing installed cables with RJ45 or BNC terminations: To test cables installed in ceilings or walls or in applications that prevent the ends from being in the same location, the remote can be detached from the main unit. - Page 10 110 Punch Down Tool Guide Introduction This punch down tool is designed for making secure IDC connections (and trim the conductor wire at the same time) for CW1308 telephone cable and CAT3, CAT5e, CAT6 & CAT6e network cable types. It is ideal for terminating IDC telephone sockets, RJ45 network sockets and IDC patch panels To prepare cables and make secure 110 Punch...
-
Page 11: Hazards And Safety Precautions
Soldering Iron Safety Guide Hazards and Safety Precautions Solder flux is irritating and sensitising, and may cause an allergic reaction. Wear gloves when handling solder and especially solder flux. Lead based solders are toxic as heavy metal poisoning is cumulative and irreversible. All solders are potentially hazardous, just because there is no lead does not make them completely safe. - Page 12 Check with your local authority for recycling advice. UK Distributor EU distributor: Philex Electronic Ltd., Philex Electronic Ireland Ltd., Kingfisher Wharf, Robwyn House, Corrintra, London Road, Bedford, Castleblayney, Co. Monaghan, MK42 0NX, United Kingdom A75 YX76, Ireland sales@labgear.co.uk © Philex Electronic Ltd. 2023. Vb1.1 www.labgear.co.uk...
