Magnetic Lock for Outdoor Use
Specifications
Dimensions
Holding Force
Voltage
Current
Applications
Operating
Temperature
Weight

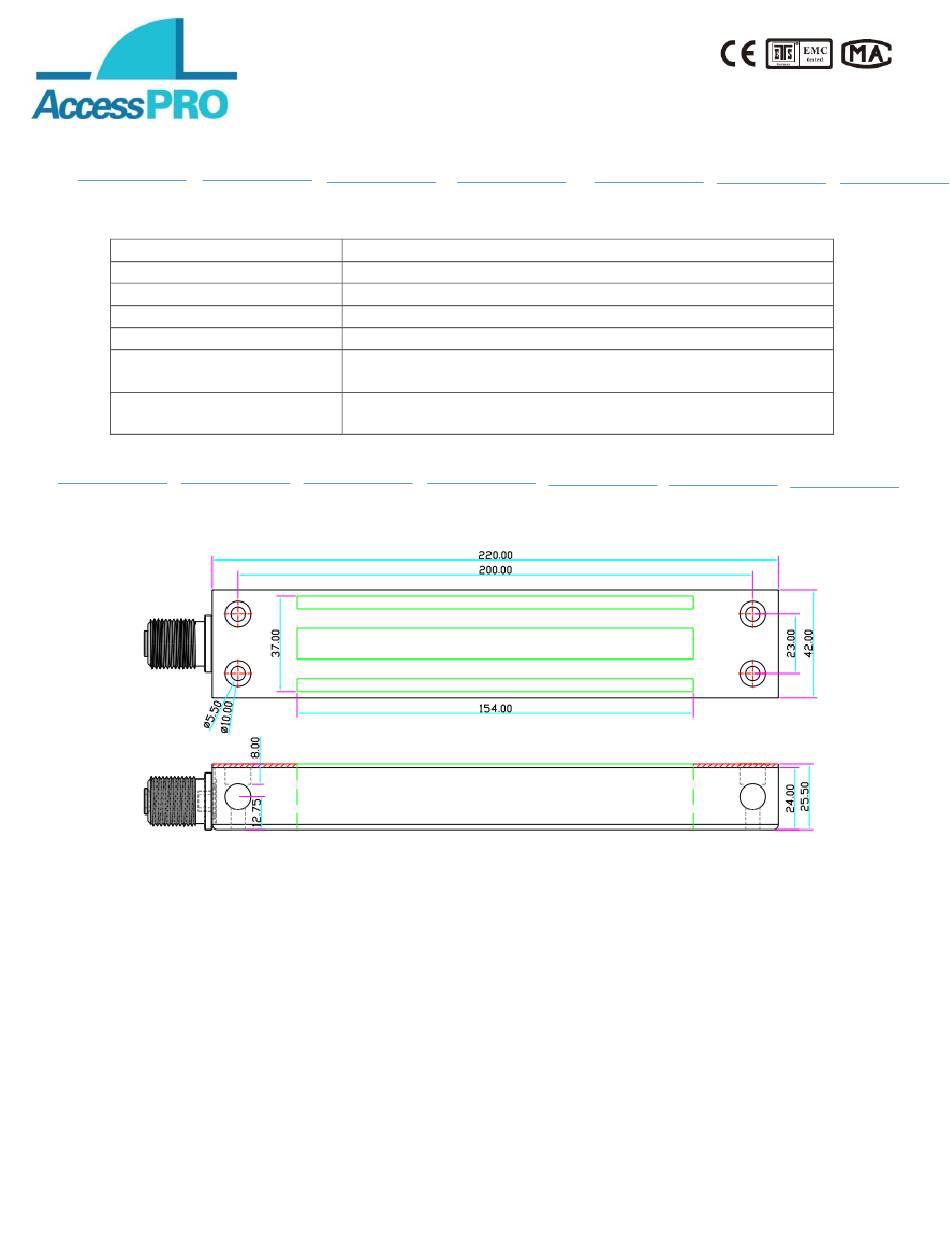

Diagram
Please read the following instructions before installation.
A. Handle the lock carefully. Any damage to the surface or armature plate will
reduce the magnetic force.
B. Attach the lock to the door frame and the plate to the door leaf.
C. Keep the door closed when drilling holes.
D. Tighten the lock screws.
E. The equipment's limit value is 0.5A / 30V DC. Do not overload.
F. Ensure that the plate can shake slightly when locked, so the rubber washer
has some room to adjust the position of the plate and the lock.
G. Select the correct wiring for the DC 12V or DC 24V input voltage.
Model: MAG600WS
220Lx42Wx25.5H (mm)
600Lbs (280Kg)
12V CD or 24V CD
12V/500mA or 24V/250 mA
Security Door, Iron Door, Aluminum Door.
14 ~ 131ºF (-10~+55℃)
4.63 lbs (2.1Kg)
Advertisement
Related Manuals for AccessPRO MAG600WS
Summary of Contents for AccessPRO MAG600WS
- Page 1 Magnetic Lock for Outdoor Use Model: MAG600WS Specifications Dimensions 220Lx42Wx25.5H (mm) Holding Force 600Lbs (280Kg) Voltage 12V CD or 24V CD Current 12V/500mA or 24V/250 mA Applications Security Door, Iron Door, Aluminum Door. Operating 14 ~ 131ºF (-10~+55℃) Temperature Weight 4.63 lbs (2.1Kg)
- Page 2 Cable Diagram B. 24VDC A. 12VDC - Power required: 0.25Amp (minimum). - Power required: 0.5Amp (minimum). - Connect the positive cable (+) from a 24VDC - Connect the positive cable (+) from a power supply to V+. 12VDC power supply to V+. - Connect the negative cable (-) from a 24VDC - Connect the negative cable (-) from a power supply to V-.
- Page 3 ZL Bracket Step 1: - There must be 2 metal washers and a rubber washer between the plate and the Z-shaped bracket. - Place the rubber washer between 2 metal washers. - Tighten the flat top screw in the center of the plate to the Z-shaped plate. Step 2: - Drill 5 holes for securing the Z-shaped plate to the door jamb.
