AccessPRO APEB100A Installation Manual

APEB100A Fail - safe Type Deadbolt Lock

Specifications

Power Supply
Current
Operation Delay Time 0sec. 2.5sec. 5sec. 9sec.
Signal Output
Face Plate
Strike Plate
Bolt
Safety Measures

Connections

Model
APEB100A ( 5 PIN )
Color
Brown - GND
Red +DC12V
Orange Push Button
Yellow Door Position Sensor(N.C.)
Green Door Position Sensor(COM.)

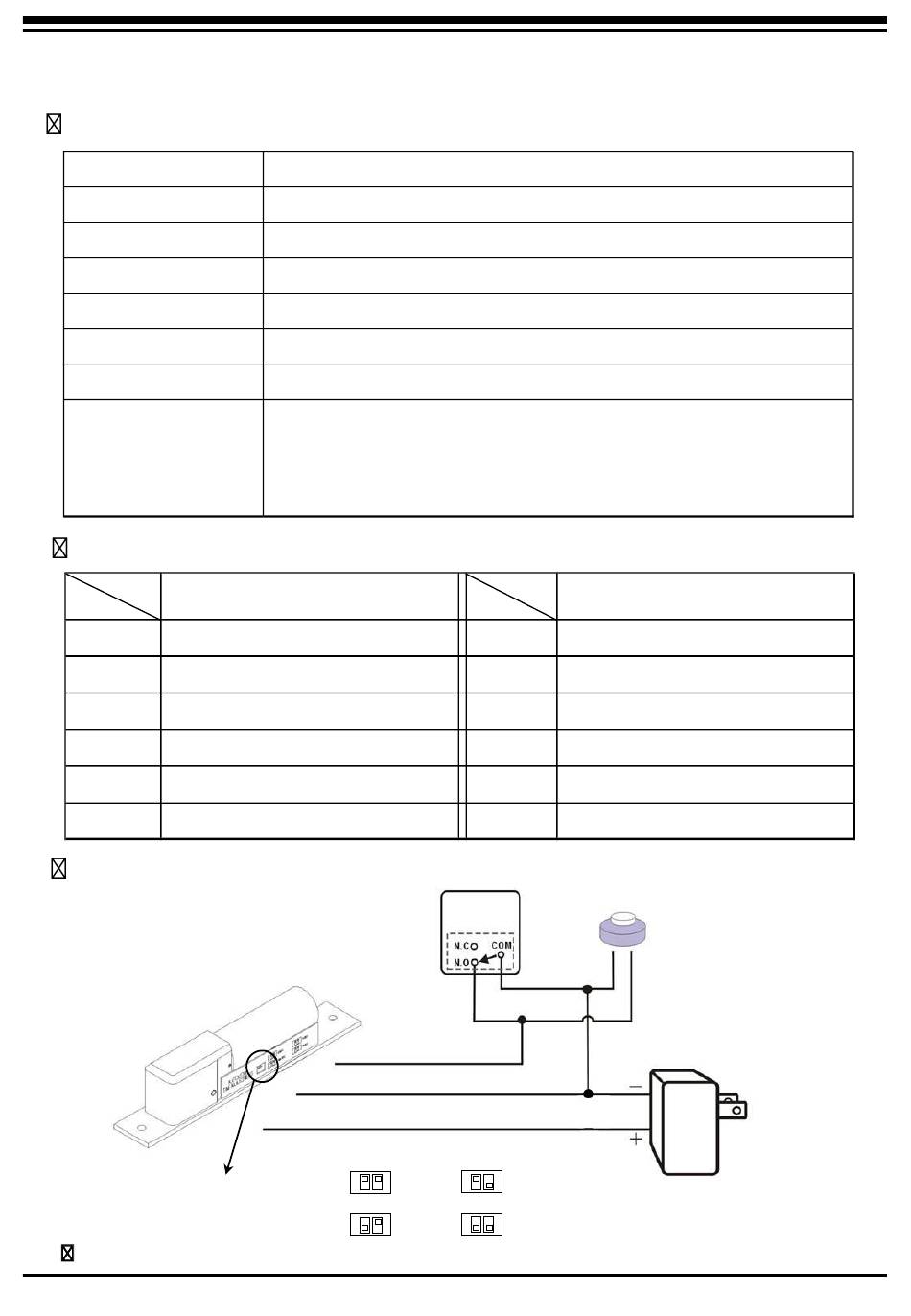

Wiring Diagram

SL-100
Setting door lock delay timer :
Please switch on the appliance again to validate any adjustment of DIP switch value
Installation Manual
1A@DC12V
Operation Current 900mA, Holding Current 360mA
Door Sensor(250mA)
200 (L) X 32 (W) X 40 (H) mm
90 (L) X 26 (W) X 2.5 (H) mm
16mm (Throw) X 15.5mm (Diameter)
(1)Fail-safe Type(Power to lock).
(2)Built-in photo couplers door open push button input contact.
Door will lock again automatically when door is not open
within 5 seconds.
ORANGE
BROWN
RED
0 SEC.
2.5 SEC.
Model
APEB100B ( 6 PIN )
Color
Brown - GND
Red +DC12V
Orange Push Button
Yellow Door Position Sensor(N.C.)
Green Door Position Sensor(COM.)
Bule Door Position Sensor(N.O.)
READER
PUSH BUTTON
5 SEC.
9 SEC.
DC
12V~24V
Page 1
VER 15.02.03
