ATTE APT-4-11 Instruction Manual

APT-4-11
Switch PoE 4 ports – LAN+PoE extender
10/100Mbps 1xPoE IN 802.3at/af/bt60 + 3xPoE OUT 802.3at/af
APT-4-11 is an unmanaged PoE network switch working as an extender (repeater) of the LAN
network and PoE power supply. Most often used as an "active splitter" in situations when we need to
run several network devices (e.g. several IP cameras) on one UTP cable or when an additional network
branch is necessary.
It is designed to work with any network devices, IP cameras and other devices powered by the
PoE 802.3 at/af standard.
The APT (Atte Power Tree) series devices provide compatibility with the IEEE 802.3 at/af/bt
standards as PoE power receivers and IEEE 802.3 at/af on all output ports. After connecting the device
to ports 2-4, the receiver is identified and if it is a PoE-powered device, power will be turned on in the
port.
The device has a very small size, which allows for easy installation in small spaces.
The APT (Atte Power Tree) product series allows you to connect system elements in a tree
topology. APT devices can be powered directly from PoE. Power transmitted over a single UTP cable
allows you to power several IP cameras.
ul. 3 Maja 5, 32-400 Myślenice, tel: +48 12 378 94 02, e-mail: support@atte.pl
INSTRUCTION MANUAL

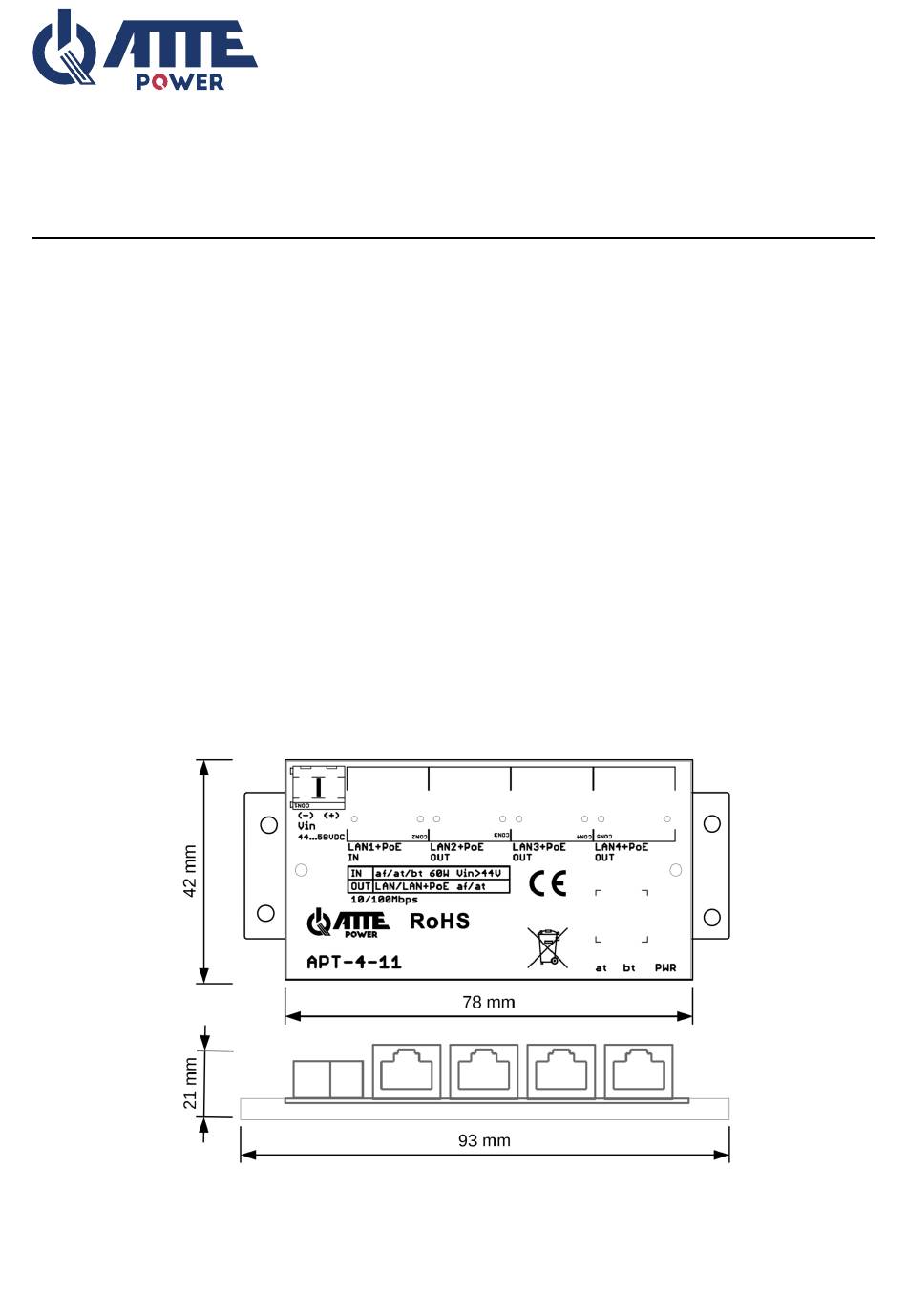

General view of the device
