ATTE APT-5-50 Instruction Manual

APT-5-50
Switch PoE 5 ports –gigabit LAN+PoE extender
1xPoE IN 802.3at/af/bt90 + 4xPoE OUT 802.3at/af/bt60
INSTRUCTION MANUAL
APT-5-50 is an unmanaged gigabit PoE network switch working as an extender (repeater) of the LAN
network and PoE power supply. Most often used as an "active splitter" in situations when we need to
run several network devices (e.g. several IP cameras) on one UTP cable or when an additional network
branch is necessary.
It is designed to work with any network devices, IP cameras and other devices powered by the PoE
802.3 at/af/bt standard.
The APT (Atte Power Tree) series devices provide compatibility with the IEEE 802.3 at/af/bt90
standards as PoE power receivers and IEEE 802.3 at/af/bt60 on all output ports. After connecting the
device to ports 2-5, the receiver is identified and, if it is a PoE-powered device, power will be turned on
in the port.
All ports provide a throughput of 1Gbps, which is important for connections in a bus topology.
The device has a very small size, which allows for easy installation in small spaces.
The APT (Atte Power Tree) product series allows you to connect system elements in a tree topology.
APT devices can be powered directly from PoE. Power transmitted over a single UTP cable allows you
to power several IP cameras.

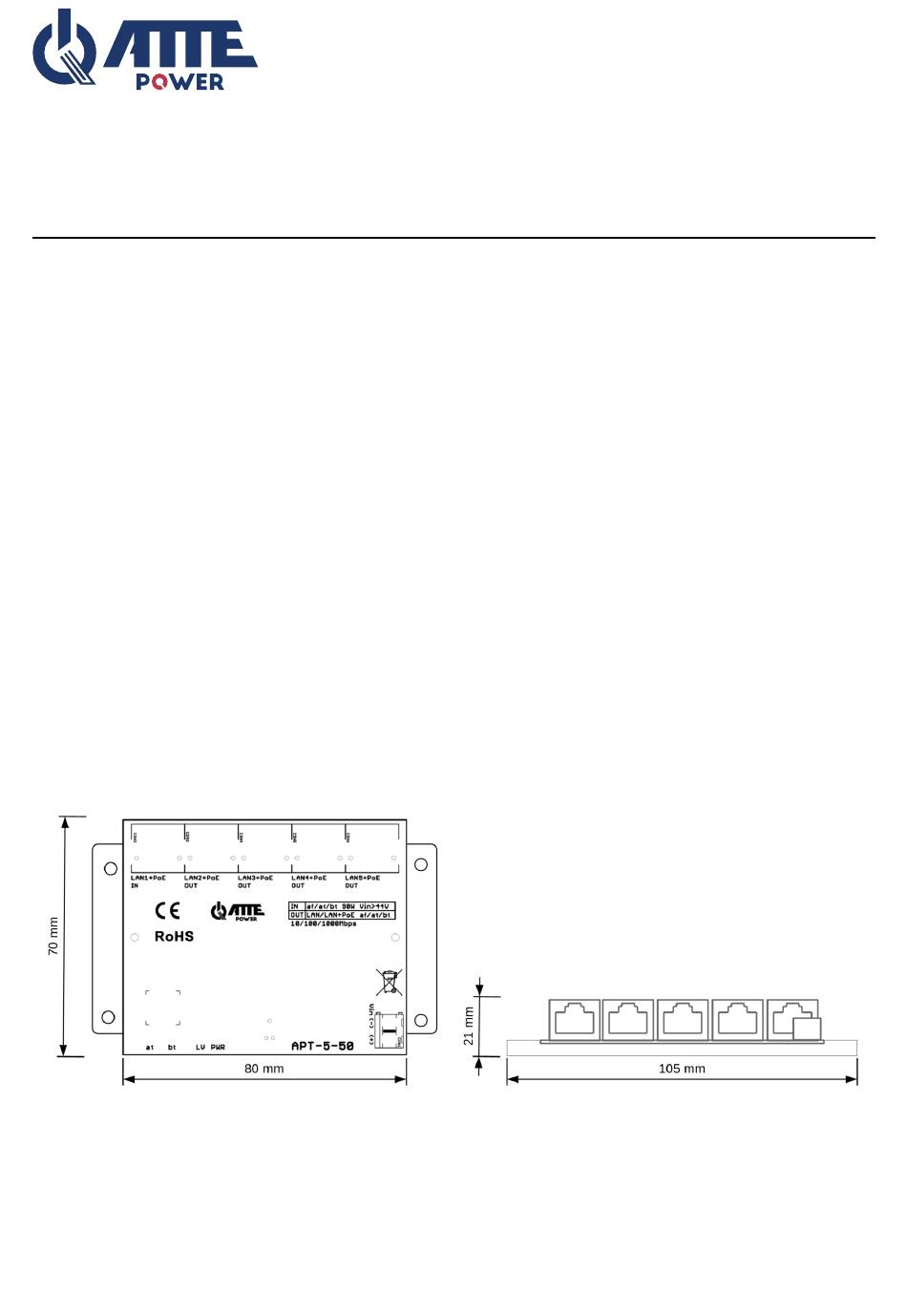

General view of the device
