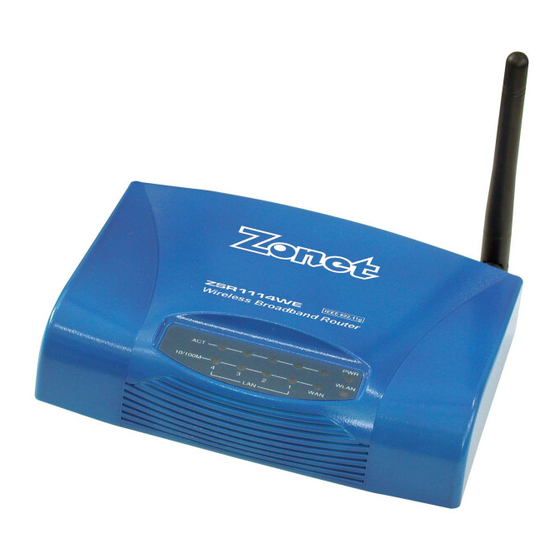

Quick Installation Guide of WLAN Broadband Router
※ To avoid users without access right through your WLAN Broadband
Router, suggest that use security mechanism like WEP, WPA or set
ID/password for web configuration login IP address 192.168.1.254.
Preparation
1
At lease one PC with IEEE802.11b/g WLAN client installed.
2
One straight-through Category 5 Ethernet cable, used to link WAN interface to xDSL or CM for
Internet connection.
3
WLAN Broadband Router.
Check package contents:
WLAN Broadband Router
DC 7.5V Power Adapter
User's manual CD-ROM
1.8M RJ-45 Cable Line
Collect Installation Information:
WAN configuration (Contact your ISP or network administrator for these information)
DHCP Client
Static IP
IP Address
Subnet Mask
Default Gateway
DNS Address
PPPoE
User Name
Password
PPTP
IP Address
Subnet Mask
Server IP Address
User Name
Password
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1 of 11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Zonet ZSR1114WE
Summary of Contents for Zonet ZSR1114WE
- Page 1 Quick Installation Guide of WLAN Broadband Router ※ To avoid users without access right through your WLAN Broadband Router, suggest that use security mechanism like WEP, WPA or set ID/password for web configuration login IP address 192.168.1.254. Preparation At lease one PC with IEEE802.11b/g WLAN client installed. One straight-through Category 5 Ethernet cable, used to link WAN interface to xDSL or CM for Internet connection.
- Page 2 Quick Installation Guide of WLAN Broadband Router LAN configuration IP Address Subnet Mask WLAN configuration SSID Mode Channel Number Parts and Functions of WLAN Broadband Router: Figure 1 – WLAN Broadband Router Front Panel LED Indicator 1. Power LED 2. WLAN LED 3.
- Page 3 Quick Installation Guide of WLAN Broadband Router 4. LAN LED 10/100M Fixed Antenna Reset Figure 2 – WLAN Broadband Router Rear Panel – Fixed Antenna interface. Data is transmitting or receiving on the LAN Flashing interface. No data is transmitting or receiving on the LAN interface.
- Page 4 Quick Installation Guide of WLAN Broadband Router SMA Antenna Figure 2.1 – WLAN Broadband Router Rear Panel – SMA Antenna Interfaces Description 1. Antenna The Wireless LAN Antenna. (Fixed / SMA) (Figure2 / Figure 2.1) 2. Reset Push continually the reset button 5 seconds to reset the configuration parameters to factory defaults.
-
Page 5: Installation
Quick Installation Guide of WLAN Broadband Router Installation Step One – Power On WLAN Broadband Router Connect DC 7.5V Power Adapter to WLAN Broadband Router and the wall power socket. Notice: It will take about 55 seconds to complete the boot up sequence after powered on the WLAN Broadband Router;... - Page 6 Quick Installation Guide of WLAN Broadband Router The following example is to configure router as “Gateway” mode that use factory default value. You may change those values if you think that is necessary. 2. Click “Setup Wizard” in submenu of Site contents 3.
- Page 7 Quick Installation Guide of WLAN Broadband Router 4. Configure Time Zone Setting configuration 5. Configure LAN Interface Setup 6. WAN Interface Setup 7 of 11 Click “Next>>” button to go next. IP Address: 192.168.1.254. Subnet Mask: 255.255.255.0. Click “Next>>” button to go next.
- Page 8 Quick Installation Guide of WLAN Broadband Router 7. Wireless Basic Settings 8. Wireless Security Setup 8 of 11 Band: 2.4GHz(G) Mode: AP Network Type: disabled SSID: MyWLAN Channel: 11 Enable Mac Clone: disabled Click “Next>>” button to go next. Encryption: None Options: WEP, WPA (TKIP), WPA2 (AES), WPA2...
- Page 9 Quick Installation Guide of WLAN Broadband Router Step Three – Connect WLAN client to WLAN Broadband Router wirelessly 9 of 11 On your wireless client PC: 1. Move your mouse to the Network icon on the Task bar and right click the mouse button to bring up the pop-up menu.
- Page 10 Quick Installation Guide of WLAN Broadband Router Ethernet Cable Ethernet cable xDSL/ CM Internet Power adapter The wireless network diagram of WLAN Broadband Router.. Reference Please consult the user’s manual of WLAN Broadband Router for detailed and complete operation guide. 10 of 11...
- Page 11 Quick Installation Guide of WLAN Broadband Router One Year Limited Warranty This device is guaranteed against manufacturing defects for one full year from the original date of purchase. This warranty is valid at the time of purchase and is non-transferable. This warranty must be presented to the service facility before any repair can be made.
