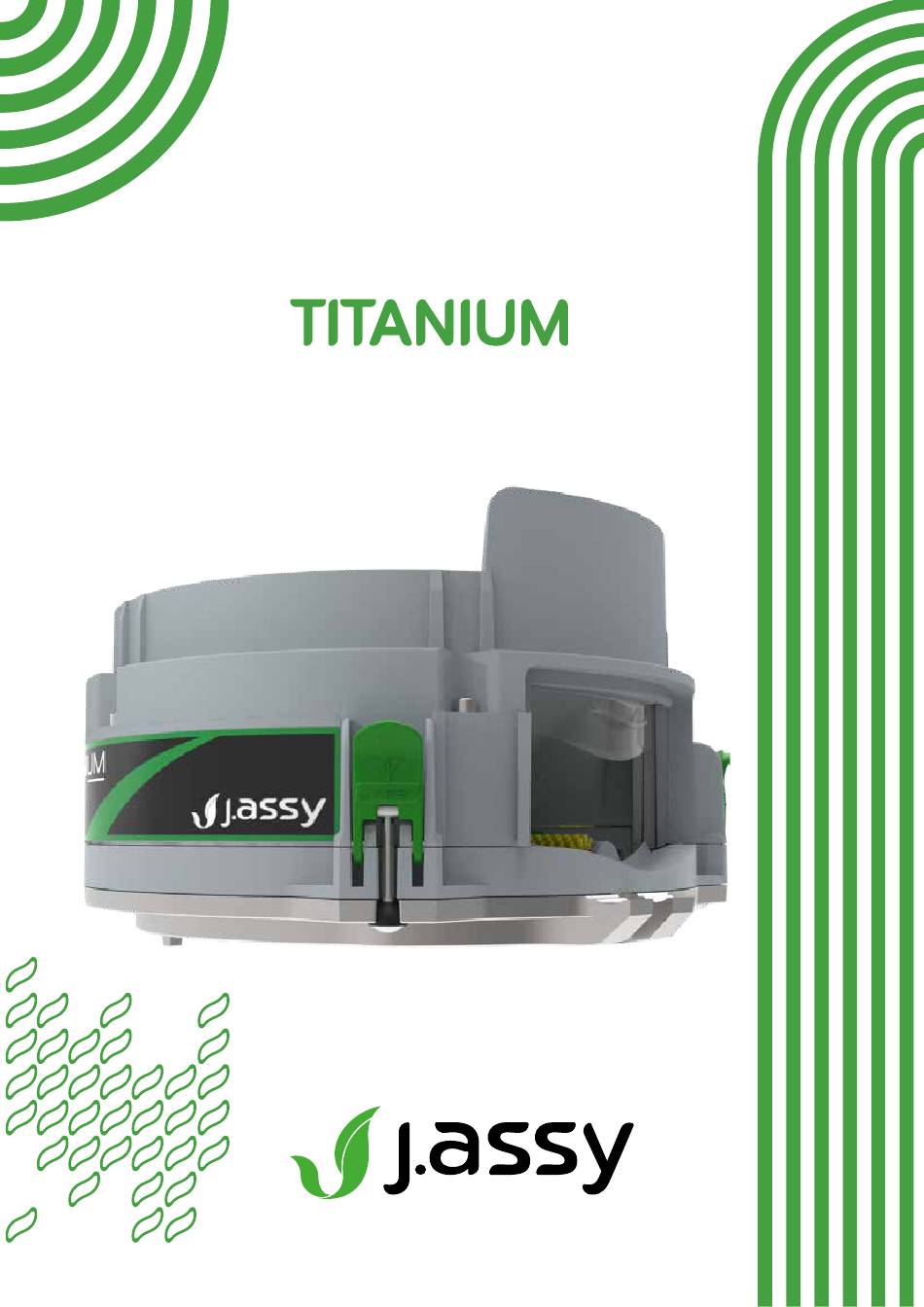

  • Page 1 OPERATOR’S MANUAL...
  • Page 2 Resolution 680 - Anatel: This equipment is not subject to protection against harmful interference and must not interfere with duly authorized systems. For more information visit Anatel’s website: www.anatel.gov.br 07768-20-04649 15359-22-04649...

  • Page 3: Table Of Contents

    Contents Introduction Titanium Components Seed Discs and Disc Runners Seed Discs and Disc Runners Chart Mounting Titanium onto Planter Installation of Seed Discs and Disc Runners Preparing for Planting Maintenance FAQ - Frequently Asked Questions Accessories Product Disposal...

  • Page 4: Introduction

    Presentation J. Assy’s TITANIUM mechanical seed meter offers a high rate of seed distribution and effectively reduces the presence of doubles and crop failures: Peanut Cotton Canola Beans Sunflower Soybean Corn Sorghum...
  • Page 5 VISOR Makes the unit’s seed disc visible while in motion, allowing operators to select the ideal disc and dosing ring, in addition to monitoring performance during planting. FLEXBRUSH ROLLER Dispenses seeds that do not exit the unit through the force of gravity. The Flexbrush’s point of contact is configured to reduce friction and mechanical damage to seeds.

  • Page 6: Titanium Components

    Titanium Components Weight Limiter 4x14 Bolt Visor Shield Shoulder Visor Base Latch Poliflow Wipers Flexbrush Roller Base Singulator Brush Center Bushing Central Adapter Washer Counter base...
  • Page 7 1050013 Weight Limiter 1050011 Visor Shield 1050002 Shoulder 1050010 Visor 1050009 Poliflow Wipers 1050007 Flexbrush Roller 1050006 Base Latch 1050008 Singulator Brush 1050001 Titanium 1050004 Base Central Adapter Kit...

  • Page 8: Seed Discs And Disc Runners

    Seed Discs and Runners Crop selection A unique seed disc kit is provided for each crop. Discs are fitted with Rampflow technology, through which undulated sections in hole ramps enhance the flow of the seeds, preventing the presence of doubles and equipment faults.

  • Page 9: Seed Discs And Disc Runners Chart

    Seed Discs and Disc Runners Chart CORN BEANS SOYBEAN 28-hole Seed Disc Thick. 4mm 50-hole Seed Disc Thick. 4mm ø9.0 Lilac Seed Disc Thick. 5.5 mm Light orange 15.5x11.5 FORMAT Black 11x16 FORMAT FORMAT FORMAT FORMAT 14.5x10.0 FORMAT 15x15 45 holes 64 holes 135 holes FORMAT...

  • Page 10: Mounting Titanium Onto Planter

    Mounting TITANIUM onto Planter In order to guarantee proper operation of the TITANIUM seed meter and a long service life, it is recommended that precautions be taken when regulating the pressure exerted on the seed box’s fastening latch. The TITANIUM must be well-fastened...

  • Page 11: Installation Of Seed Discs And Disc Runners

    Installation of Seed Discs and Disc Runners Use the following steps to ensure that the seed disc and runner unit are properly inserted into the seed meter: Place the seed meter into an upside down position and unlatch the unit. Latch 2.Disc Runner 1.Seed Disc...
  • Page 12 Check the TITANIUM’s counter base for dirt. Clean as indicated in the operator’s manual. Adjust latches in order to facilitate opening of the TITANIUM seed meter and allow the unit to be lightly fastened when closed. Do not leave latches loose, which may directly influence plantability due to gaps in the seed disc and runners.

  • Page 13: Preparing For Planting

    Preparing for Planting 1. SELECTING SEED DISCS AND RUNNERS Due to the wide range of available seed types and formats, J. Assy has developed seed disc and runner models that are specific to each crop. In order to ensure a high level of quality in planting, when selecting a disc, it is important to verify whether seeds: are securely positioned in the seed disc’s holes in order to ensure...
  • Page 14 Selecting the correct SEED DISC Example using CORN SEED DISC Seeds properly positioned. Seeds fit too tightly into holes in seed disc or are larger than the provided holes. Example using SOYBEAN SEED DISC Seeds properly positioned. Seeds fit loosely into holes and presence of doubles.
  • Page 15 Selecting the correct DISC RUNNER Example using CORN DISC RUNNER Seeds positioned near the edge Exposed seeds. of the unit. Example using SOYBEAN DISC RUNNER Seeds positioned near the edge Exposed seeds. of the unit. 2. PLANTING SPEED To prevent damage to the product and loss of planting efficiency, it is important that the planting speed recommended by the planter’s manufacturer be used.
  • Page 16 USE OF GRAPHITE The use of graphite is essential to proper operation of the system, as well as ideal distribution of seeds, which reduces the presence of doubles and faults, broken seeds and wear and tear on the system. ATTENTION. See recommendations from the graphite’s manufacturer in order to ensure that the correct amount of graphite is used.

  • Page 17: Maintenance

    REPLACING THE FLEXBRUSH ROLLER 1. The TITANIUM’S FLEXBRUSH must be replaced using a N. 2 Phillips head screwdriver . 2. Turn the FLEXBRUSH in a counterclockwise direction as shown in the above figure.
  • Page 18 Replacing the TITANIUM’s POLIFLOW WIPERS 1. The unit’s POLIFLOW WIPERS may be replaced manually or using universal pliers. Remove the weight limiter. Image of the unit’s Poliflow Wipers being removed. 2. Pull the POLIFLOW using your fingers or pliers. When placing a new POLIFLOW wiper into the unit, make sure it is properly positioned.
  • Page 19 Replacing the TITANIUM’s SINGULATOR BRUSH 1. Use universal pliers to replace the unit’s Singulator Brush, as shown in the image below: 2. Using a pair of pliers, lower the SINGULATOR BRUSH into the unit’s base and pull upwards until is firmly positioned.
  • Page 20 Replacing SEED DISCS and RUNNERS after each new planting cycle Operating the TITANIUM without graphite, improper seed disc/runner selection and service hours directly influence wear in the unit’s seed disc and runner. IMPORTANT In order to maintain a high level of excellence and efficiency in the TIT ANIUM seed meter, the unit’s seed disc...
  • Page 21 Replacing SEED DISCS and RUNNERS after each new planting cycle Example of wear in DISC RUNNER. Example of wear and tear. Visible wear in this area that may result in the presence of doubles (two seeds in the same disc hole).

  • Page 22: Faq - Frequently Asked Questions

    Yes. The application of oil-based treatments and liquid inoculants, directly into the seed box can greatly compromise the system's plantability. 3. Can I perform planting at higher speeds with the TITANIUM seed meter? No. The speed recommended by the planter’s manufacturer must always be used.

  • Page 23: Accessories

    Highly Resistant Design J. Assy’s Seed Reservoir is extremely durable and waterproof and made from the same raw materials used in the Titanium. The unit prevents rainwater 360º nozzle 360º nozzle and dust from entering the seed for use with3”...
  • Page 24 Align the Seed Hopper’s Open the Seed Hopper’s tabs with the recesses in the cover and position the Titanium’s bolts and place them two 4x14 Phillips bolts into a vertical position until they previously removed from snap into place, producing a the Titanium’s visor cover).

  • Page 25: Product Disposal

    Product Disposal Equipment must be forwarded to the nearest J.Assy reseller or the implement assembler at the end of its service life, if acquired through a direct purchase.
  • Page 26 J.Assy’s Quality Policy "Provide quality products and services that exceed our customer’s expectations to ensure compliance with legal and technical requirements and the development and manufacture of reliable products that can be considered true design masterpieces, through the use of innovative technological solutions, investment in research and personnel while guaranteeing a high level of productivity and continuous improvement."...
  • Page 27 After the contained in this manual have been completed, your TITANIUM seed meter will be ready for use in planting. PLEASE CONTACT A J. ASSY SALES REPRESENTATIVE OR RESELLER IN YOUR REGION WITH ANY QUESTIONS OR CONCERNS, OR ACCESS THE WEBPAGE:...
  • Page 28 www.jassy.ag...
