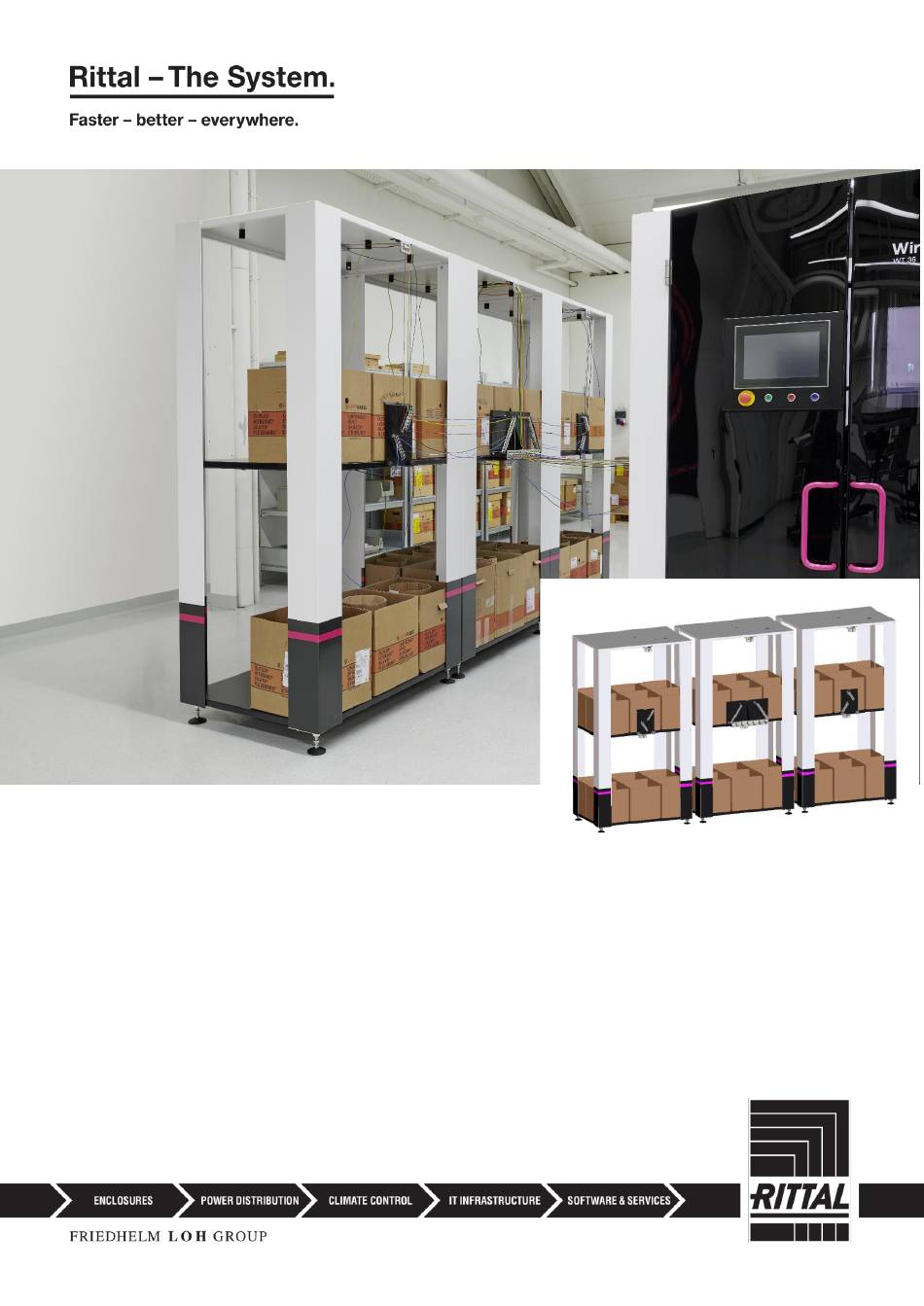

- Page 1 WT Wire Storage 4051.026 4051.027 WT Wire Storage XL 4051.037 4051.038 Assembly instructions...
-
Page 2: Table Of Contents
Table of contents Table of contents Notes on documentation ............3 Retention of documents.............. 3 Symbols used in this document ........... 3 Intended use................3 Assembly ................5 Overview.................. 5 Assembly procedure ..............5 Required tools .................14 Operation ................15 Annex .................. -
Page 3: Notes On Documentation
1 Notes on documentation Notes on documentation This documentation is mainly used for mounting the wire storage (XL). Retention of documents The assembly and operating instructions, together with all other applicable documents, are integral components of the product. They must be handed over to the persons dealing with the product and must always be available and on hand for operating and maintenance personnel. - Page 4 1 Notes on documentation Caution! Wear suitable work clothing without protruding parts to avoid being caught by moving wires, especially in the area of wire deflection. Do not wear rings, chains or other jewel- lery. Operating instructions in other languages can be found on our website: Click here! Wire Storage...
-
Page 5: Assembly
2 Assembly Assembly Note: The assembly/installation may only be carried out by appropri- ately trained specialist personnel. Overview Fig. 1: Structure Wire Storage Legend: WT Wire WT Wire Storage, ad- 4051.027 4051.026 Storage, ditional additonal central unit module central unit module deflection deflection... - Page 6 2 Assembly ◼ Check the entire shipment for completeness using the enclosed delivery note! When installing the product, please proceed as follows: Remove transport feet and position shelf: 1. Lif t the Wire Storage slightly with a lift truck Fig. 2: Lifting the Wire Storage 2.
- Page 7 2 Assembly Fig. 3: Loosening the screws and unscrewing the adjustable feet Wire Storage...
- Page 8 2 Assembly 3. Place the Wire Storage in the intended position. Fig. 4: Positioning the Wire Storage 4. Align the Wire Storage horizontally by adjusting the feet. Fig. 5: Horizontal alignment of the Wire Storage Loading the shelf: 1. First load the lower level. Fig.
- Page 9 2 Assembly 2. Then load the upper level. Fig. 7: Loading upper level Warning! Observe maximum permissible weights (see Technical data)! Thread in wires (upper level shelf): 1. Guide the wire straight up into the plastic tab. 2. Lead the wire to the f ront via the central deflection (only applies to the f our wire drums in the corners).
- Page 10 2 Assembly Fig. 8: Wire threading upper level of the additional module Wire Storage...
- Page 11 2 Assembly Thread the wires (lower level shelf): 1. Thread the wire straight up into the plastic tab. 2. Lead the wire over the central deflection to the front (only applies to the f our wire drums in the corners). 3.
- Page 12 2 Assembly Fig. 10: Mounting deflections additional module Wire Storage...
- Page 13 2 Assembly Fig. 11: Mounting deflections on Wire Storage Note: In order to guarantee a trouble-free operation of the system, it is important to ensure that wires do not cross at any position. This also applies to the feeding of the wires from the Wire Storage (XL) into the wire f eed magazine of the Wire Terminal.
-
Page 14: Required Tools
2 Assembly Required tools Designation Size Figure Allen wrench 1x 5 mm Open-end wrench 1x 24 mm Minimum length Pallet truck 120 cm Spirit level no specifications Tab. 1: Required tools Wire Storage... -
Page 15: Operation
3 Operation Operation The operation of the product is not changed by these accessories. Danger! Incorrect handling or incorrect loading increases the risk of tipping over and thus immediate danger to life and limb. Therefore: ◼ Only allow work to be carried out by trained personnel. ◼... - Page 16 3 Operation Warning! If any damage is found or evident, do not use the Wire Stor- age until it has been repaired. In order to ensure the longest possible and trouble-free operation, repair and maintenance work should be carried out at regular intervals. In particular: ◼...
-
Page 17: Annex
4 Annex Annex Scope of delivery Item Description Quantity Central unit pre-assembled Screw with handle 2 per shelf Central deflection (can be used for central unit and additional module) Tab. 2: Scope of delivery Technical data Information WT Wire Storage WT Wire Storage XL Unit Dimensions W x H x D... -
Page 18: Mounting Options
4 Annex Mounting options Designation Model no. Figure Additional mod- ule or additional 4051.027 module XL with deflection 4051.038 (can be used (XL) right and left) Tab. 4: Mounting options Wire Storage... -
Page 19: Warranty
5 Warranty Warranty The warranty conditions can be found in the current Rittal sales and delivery conditions. They can be found on our website. Note: Any intervention by third parties during the warranty period re- leases the manufacturer from its warranty obligations. Customer service addresses ◼... - Page 20 ◾ Enclosures ◾ Power Distribution ◾ Climate Control ◾ IT Infrastructure ◾ Software & Services You can find the contact details of all Rittal companies throughout the world here. www.rittal.com/contact RITTAL GmbH & Co. KG Auf dem Stuetzelberg · 35745 Herborn · Germany Phone +49 2772 505-0 E-mail : info@rittal.de ·...
