B680 Top & Bottom Skirt
Assembly Instructions

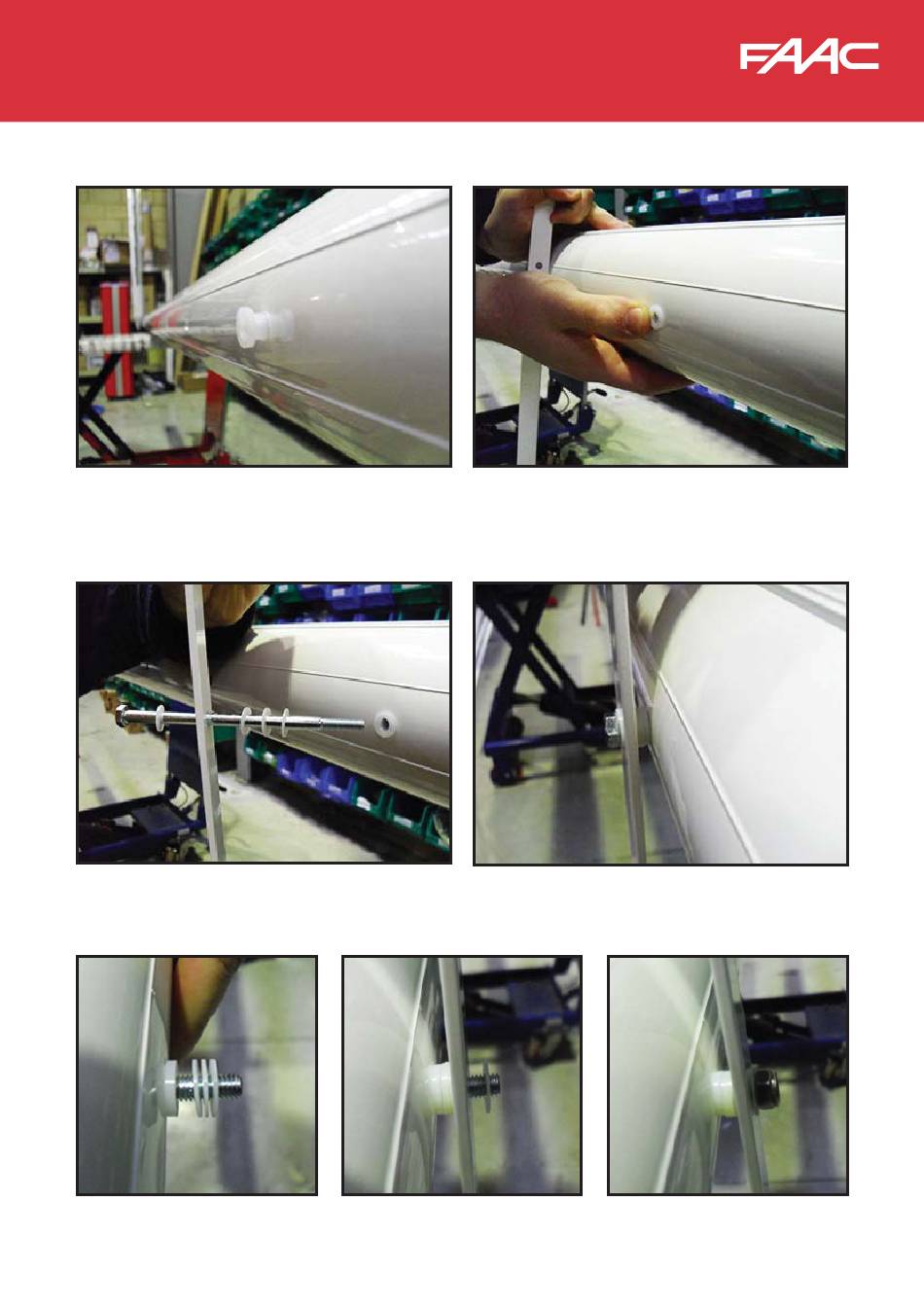

1. Push plastic inserts into 8mm holes on both sides of the beam.
2. Use M6 Hex bolts to secure vertical strips to the beam. Use 1 x plastic washer
under the bolt head and 3 x plastic washers between the vertical strip and the
beam to act as a spacer.
3. Repeat with another strip on the other side of the beam, ensure that both
vertical strips are orientated with their tips bending away from each other.
Unit 6, Hamilton Close, Houndmills Estate, Basingstoke, Hampshire, RG21 6YT
Tel: 01256 318100
Fax: 01256 318101
Tech helpline: 01256 318111
W: www.faac.co.uk
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FAAC B680
Summary of Contents for FAAC B680
- Page 1 B680 Top & Bottom Skirt Assembly Instructions 1. Push plastic inserts into 8mm holes on both sides of the beam. 2. Use M6 Hex bolts to secure vertical strips to the beam. Use 1 x plastic washer under the bolt head and 3 x plastic washers between the vertical strip and the beam to act as a spacer.
- Page 2 B680 Top & Bottom Skirt Assembly Instructions 4. Using the M5 bolts and nylon washers, bolt through the end of the fi rst vertical strip, then horizontal strip and then the second vertical strip. Repeat at the top and bottom of each vertical strip.
- Page 3 B680 Top & Bottom Skirt Assembly Instructions 6. To secure the barrier cover the in-fi ll strip needs to be shortened by cutting approximately 25mm from the lower edge. The cover and case are then secured by bolting through the in-fi ll strip and the centre hole in the bracket and into the threaded hole in the barrier structure.
- Page 4 B680 Top & Bottom Skirt Assembly Instructions B680 Top & Bottom Skirt dimensions 5000mm (max) 4600mm (max) 200mm 750mm 220mm 1500mm 180mm (approx) Road Width T&B Skirt Balancing Table Beam Length (No. Vert Strips) (24) (23) (22) (21) (20) (19)
