TS-BT
Button Temperature Sensor
Product Description
This document describes the hardware installation procedures for the TS-BT Button Temperature Sensor.
The Paintable Button Style Flush-Mount Thermistor Wall Sensors provide precision room temperature sensing for building automation systems. The sensor
drastically decreases the footprint of the traditional box sensor so that it becomes virtually invisible once it is painted to match the decor. The active sensing
element is made of a highly stable, precision thermistor material or platinum RTD. This design is intended for interior use only is bonded to a plastic
paintable housing.
General Installation Requirements
For proper installation and subsequent operation of each device, pay special attention to the following recommendations:
-
Upon unpacking the product, inspect the contents of the carton for shipping damages. Do not install damaged device.
-
Avoid areas where corroding, deteriorating or explosive vapors, fumes or gases may be present.
-
Ensure that all equipment is installed according to local, regional, and national regulations.
Personal injury or loss of life may occur if you do not follow a procedure as specified.
Equipment damage or loss of data may occur if you do not follow a procedure as specified.
Take reasonable precautions to prevent electrostatic discharges to the controller when installing, servicing or operating
the controller. Discharge accumulated static electricity by touching one's hand to a well-grounded object before working
with the controller.

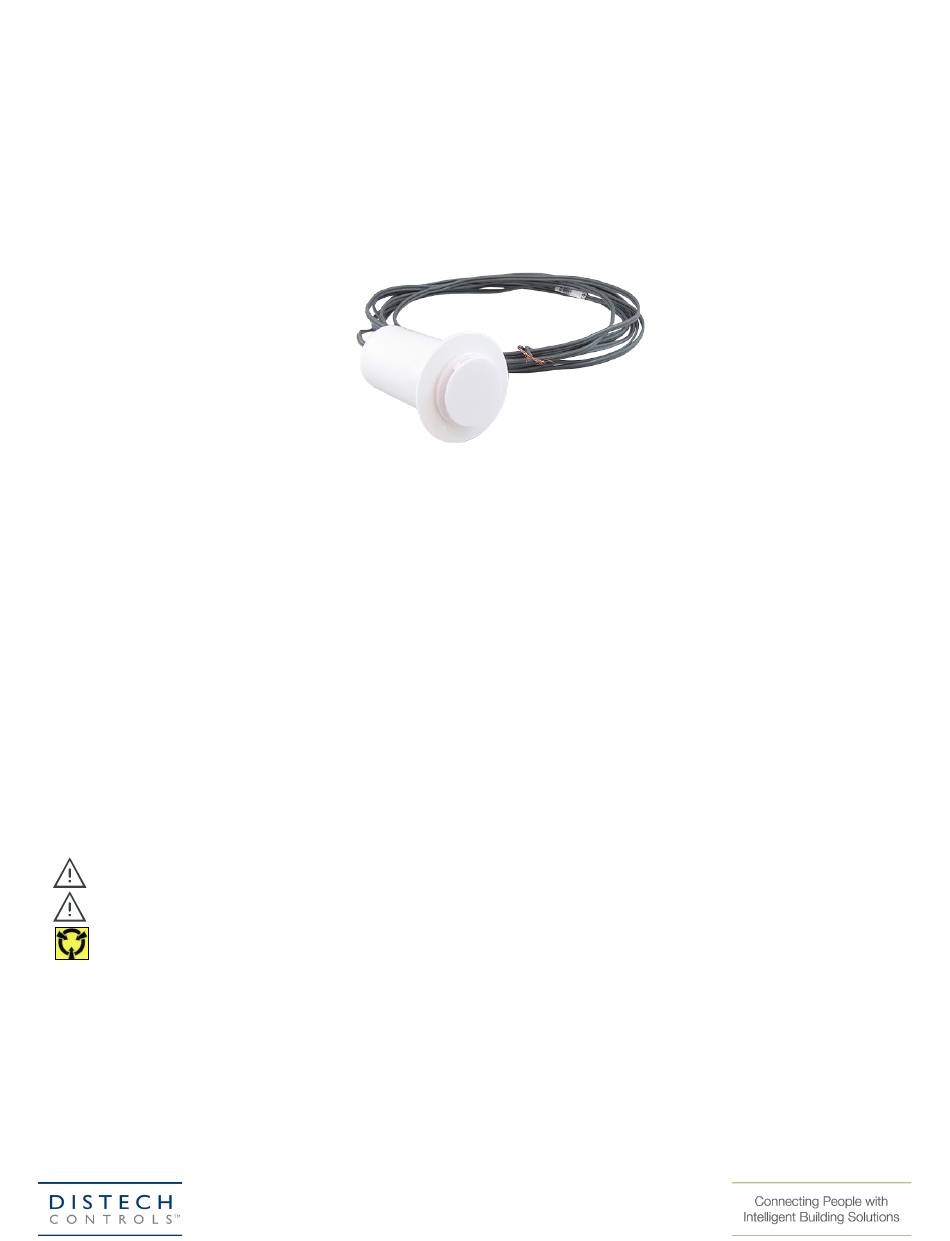

Figure 1: TS-BT Button Temperature Sensor
I n s t a l l a t i o n G u i d e
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Distech Controls TS-BT
Summary of Contents for Distech Controls TS-BT
- Page 1 Figure 1: TS-BT Button Temperature Sensor Product Description This document describes the hardware installation procedures for the TS-BT Button Temperature Sensor. The Paintable Button Style Flush-Mount Thermistor Wall Sensors provide precision room temperature sensing for building automation systems. The sensor drastically decreases the footprint of the traditional box sensor so that it becomes virtually invisible once it is painted to match the decor.
- Page 2 Mounting Instructions The temperature sensor installs directly into any wall. Select a suitable installation area in the wall. Do not place the device where the sensor may be subject to air stratification, vibrations, excessive moisture or rapid temperature changes. Once a suitable location is selected, drill a 25.4mm (1.0") for ceiling tiles or a 27mm (1.0625") hole for drywall mounting of the sensor. Remove the adhesive tape cover from the backside lip of the sensor to expose the adhesive.
- Page 3 ©, Distech Controls 2020 All rights reserved. While all efforts have been made to verify the accuracy of information in this manual, Distech Controls is not responsible for damages or claims arising from the use of this manual. Persons using this manual are assumed to be trained HVAC specialist / installers and are responsible for using the correct wiring procedures and maintaining safe working conditions with fail-safe environments.
