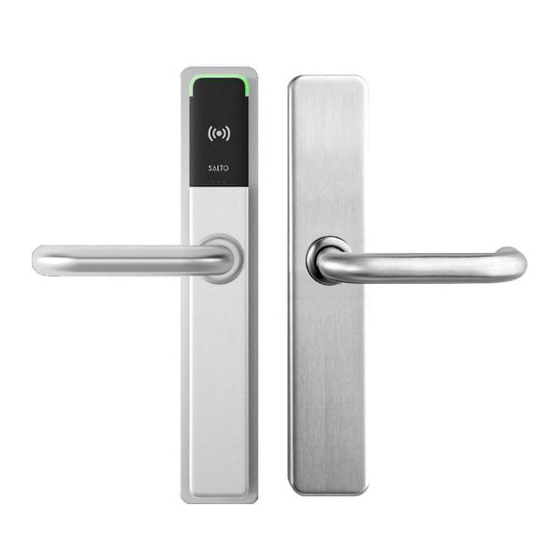

Salto XS4 One S Installation Manual

XS4 One S for USA mortise locks, cylindrical & tubular latches
Installation guide
Eng
Guía de instalación
E
Montageanleitung
D
Guide d'installation
F
Guida all'installazione
I
Guia de instalação
P
C US
R
LISTED
Only with UL listed
SALTO mortise lock or latch
TORX 20 (x2)
TORX 20 (x1)
TORX 20 (x4)
ALLEN 3 (x2)
Mortise Lock not
included
Cerradura de embutir no
incluida
* Required only for
Eng
doors that exceed
60mm [2-3/8"] thickness
E * Sólo para puertas de
espesor mayor de 60mm
[2-3/8"]
"A2" version has to be
installed always with the
SALTO LT2Lxx
SALTO LT2L tubular latch.
Tubular Latch
La versión "A2" solo se puede
instalar con el picaporte
tubular SALTO LT2L.
SALTO recommends the use of a mortise lock, with
a maximum 4º pre-turn.
SALTO recommande d'utiliser des serrures à
mortaiser avec un angle au repos de 4°
maximum.
SALTO recomienda utilizar cerraduras con un
pregiro máximo de 4º.
All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials.
Installation guide
2-5/8"
*
2-5/8"
(67) (67)
O
O
(
O
1-1/2"
O
( 38mm)
*
SALTO LT2Lxx
Tubular latch
With Ai6xx
Only!
© 2021 SALTO Systems S.L.
25/32"
(20)
9/16"
14mm)
To be used only with
SALTO compatible
escutcheons! O
A utiliser uniquement
O
avec les ensembles
plaques-béquilles
A2..
SALTO compatibles!
¡Utilizar solamente
con escudos SALTO
compatibles!
A i 9 xx series
50
Model: W61M
25
1"
226866-ED.-07/03/2023
