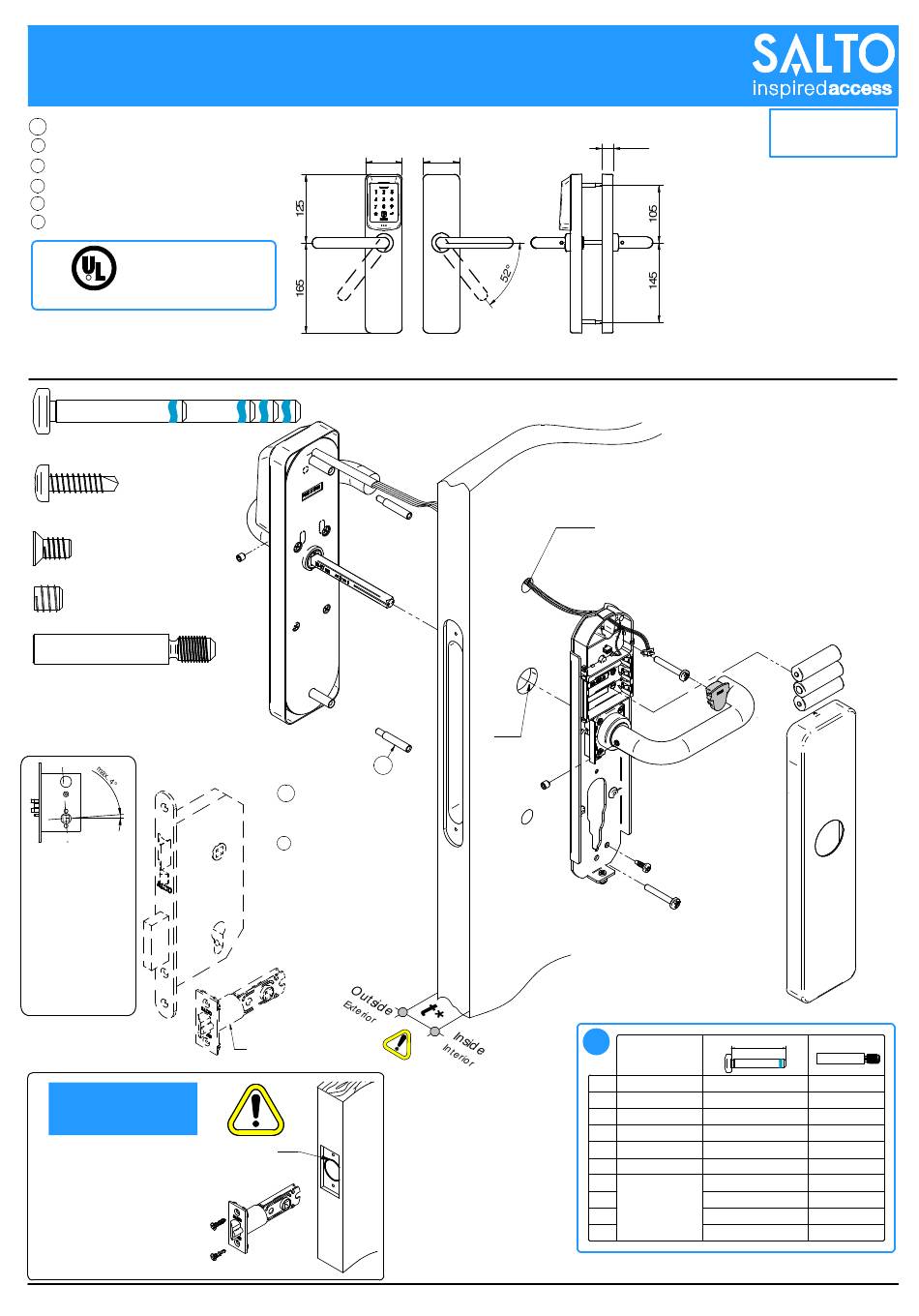

Salto XS4 One S Installation Manual

XS4 One S Keypad for European mortise locks
Installation guide
Eng
Guía de instalación
E
Montageanleitung
D
Guide d'installation
F
Guida all'installazione
I
Guia de instalação
P
Only with UL listed
C US
SALTO mortise lock or latch
R
LISTED
TORX 20 (x2)
TORX 20 (x1)
TORX 20 (x4)
ALLEN 3 (x2)
Mortise Lock not
included
Cerradura de embutir no
incluida
SALTO recommends the
use of a mortise lock,
with a maximum 4º
pre-turn.
SALTO recommande
d'utiliser des serrures à
mortaiser avec un angle
au repos de 4°
maximum.
SALTO recomienda
utilizar cerraduras con un
pregiro máximo de 4º.
SALTO LT2Lxx
Tubular latch
A2..
With Ei9xx Only!
To be used only with SALTO compatible
escutcheons!
A utiliser uniquement avec les
ensembles plaques-béquilles SALTO
compatibles!
¡Utilizar solamente con escudos
SALTO compatibles!
All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials.
Installation guide
67
*
*
* Required only for
Eng
doors that exceed
60mm [2-3/8"] thickness
E * Sólo para puertas de
espesor mayor de 60mm
[2-3/8"]
"A2" version has to be
installed always with the
SALTO LT2L tubular latch.
La versión "A2" solo se puede
instalar con el picaporte
tubular SALTO LT2L.
SALTO LT2Lxx
Tubular Latch
O
25
O
1"
67
O
14
O
25
© 2022 SALTO Systems S.L.
20
i
t
L
Door thickness
3 32 - 47mm 35 mm
4 45 - 60 mm 50 mm
6 60 - 75 mm 30 mm
7 75 - 90 mm 45 mm
9 90 - 105 mm 30 mm
1 105 - 120 mm 45 mm
35 mm
2
35 mm
A
32 - 53 mm
B 45 mm
5 45 mm
MODEL: ELECTRONIC INFO. W61MK
E i 9 xx series
50 K
-
-
x2
x2
x4
x4
-
-
-
-
227596-ED.-17/04/2023
