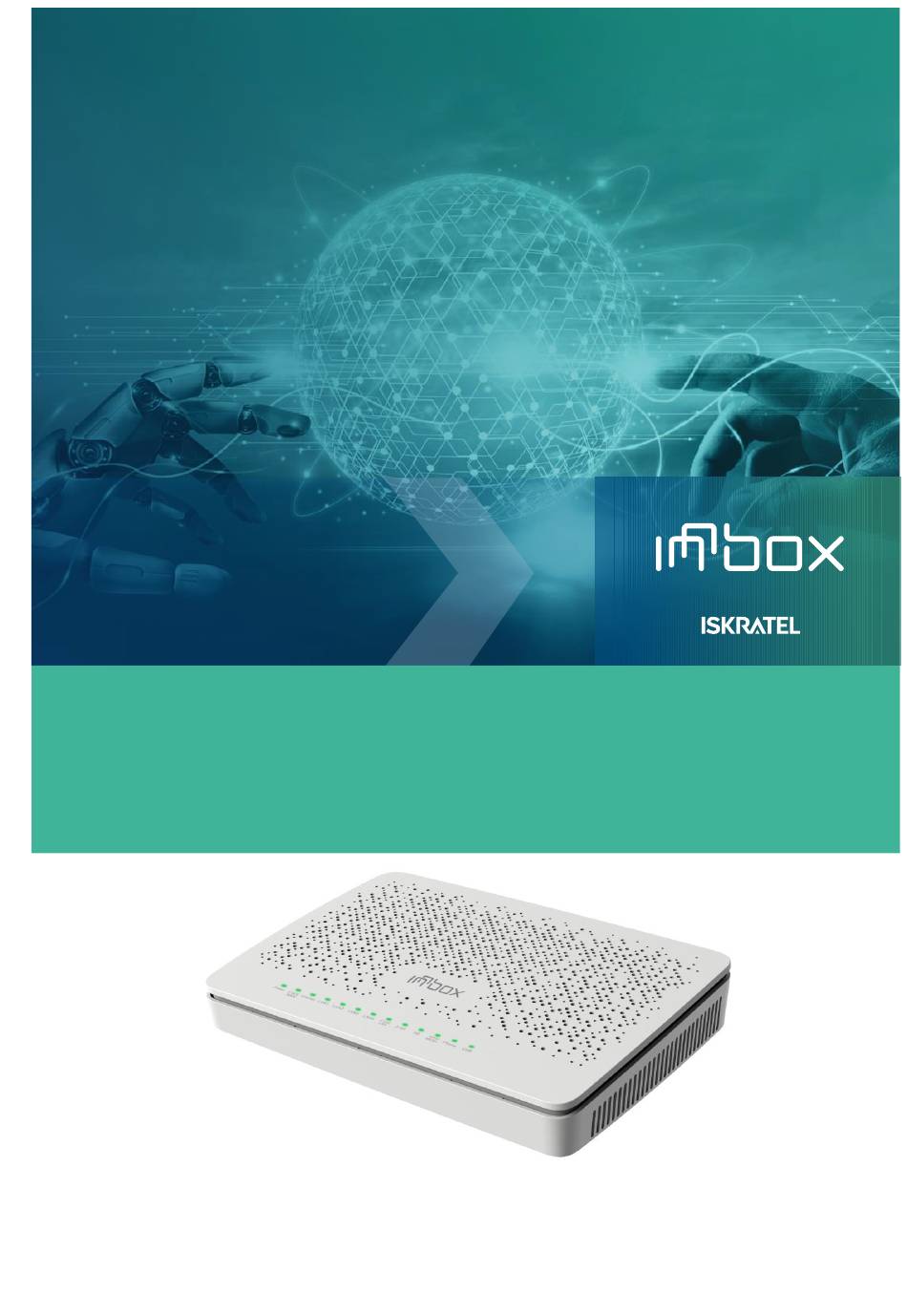

- Page 1 1/20 Innbox E94 Quick Start Guide powered by Ethernet Home Gateway Innbox E94 Quick Start Guide Kontron, March 2024 © 2024 Kontron. All rights reserved. Confidentiality: Public 4...
- Page 2 2/20 Innbox E94 Quick Start Guide Author: Iskratel Innbox CPE Team Agreed by: Approved by: Authorised by: Type of document: Manual Issuing date: 13 March 2024 Confidentiality level: Public 4 Official code: If a copy of the document is used, please check its compliance with the latest document release.
-
Page 3: Table Of Contents
Safety Precautions ................................4 FCC Statement ................................... 6 Waste Disposal ................................. 7 Package content ................................8 Description of the Innbox E94 ............................9 Top View ....................................9 Back View ..................................... 10 Bottom View ..................................11 Connecting to the Internet and Powering on ......................12 Connecting Your Devices ............................... -
Page 4: Safety Precautions
Innbox E94 Quick Start Guide Safety Precautions Congratulations for purchasing the Innbox E94 home gateway! To ensure the optimum performance of the device without damaging the equipment or endangering yourself and other users, please make sure to follow all safety precautions. - Page 5 5/20 Innbox E94 Quick Start Guide Do not look into the ends of optical fibers. Exposure to invisible LASER radiation may cause serious retinal damage or even blindness. Verify the optical source is disabled through the use of an optical power meter before handling optical fibеrs.
-
Page 6: Fcc Statement
6/20 Innbox E94 Quick Start Guide FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 7: Waste Disposal
7/20 Innbox E94 Quick Start Guide Waste Disposal Kontron is in compliance with European Directive 2012/19/EC on electrical and electronic equipment (WEEE). WEEE label indicates that this product must not be disposed of together with household waste at the end of its life span. -
Page 8: Package Content
8/20 Innbox E94 Quick Start Guide Package content The package contains: • Innbox E94 Home Gateway • Power supply adapter (12V DC / 2A) • Ethernet RJ-45 UTP cable • Quick start guide © 2024 Kontron. All rights reserved Confidentiality: Public 4... -
Page 9: Description Of The Innbox E94
9/20 Innbox E94 Quick Start Guide Description of the Innbox E94 Top View The top of the Innbox E94 home gateway is equipped with several light indicators that provide you with the status of the device. Indicator Colour Significance Power Green On –... -
Page 10: Back View
Green On – The USB device is connected. Off – No USB device is connected. Back View The back of the Innbox E94 home gateway is equipped with connectors and switches that allow you to connect your device. Item Purpose Power Connector for power supply via the provided power-supply adapter. -
Page 11: Bottom View
Innbox E94 Quick Start Guide Bottom View The bottom of the Innbox E94 home gateway is equipped with Safety label with Network name (SSID) and Security Key. IP address and password for accessing Graphical User Interface is also placed on bottom part of the home gateway. -
Page 12: Connecting To The Internet And Powering On
When you switch the home gateway on, pay attention to the light indicators. It takes about 90 seconds for the Innbox E94 home gateway to boot up; the POWER light indicators should be on uninterruptedly. © 2024 Kontron. All rights reserved Confidentiality: Public 4... -
Page 13: Connecting Your Devices
2. Plug the other end of the Ethernet cable to the Ethernet port on your computer. When the Innbox E94 home gateway is switched on and your computer connected, pay attention to the corresponding LAN light indicator. The light indicator should be on uninterruptedly or blinking. -
Page 14: Connecting A Computer Via Wps Function
Network. Connecting a Computer via WPS function What you need: ⬧ The Innbox E94 home gateway (included in the package); ⬧ A personal computer or a similar device (not included in the package). Steps to follow: Make sure that the Wi-Fi service is turned ON on your computer;... -
Page 15: Connecting A Set-Top Box
The transfer of the settings will be finished when 2.4G and 5G light indicators will be on interruptedly. Connecting a Set-Top Box What you need: ⬧ The Innbox E94 home gateway (included in the package); ⬧ An Ethernet RJ-45 UTP cable (included in the package); ⬧... - Page 16 2. Plug the other end of the Ethernet cable to the Ethernet port on your set-top box. When the Innbox E94 home gateway is switched on and your set-top box connected, pay attention to the LAN light indicator. The light indicator should be on uninterruptedly or blinking.
-
Page 17: Setting Up Internet Access On The Computer
Innbox E94 Quick Start Guide Setting up Internet Access on the Computer Once you have powered on the Innbox E94 home gateway and connected the computer to it, you are ready to access the internet. The internet connection should be established automatically. -
Page 18: Web Management
18/20 Innbox E94 Quick Start Guide Web Management The web management enables you to view or edit the settings of the Innbox E94 home gateway, or to configure the plethora of supported functions. Accessing the Web Management What you need: ⬧... -
Page 19: Getting Around The Web Management
Getting around the Web Management The user interface of web management is simple and intuitive. Top frame (navigation toolbar) lists main functions of home gateway Innbox E94. Left frame (navigation tree) lists the home gateway functions that you can change. The function names act as hyperlinks: when you click a link, the corresponding configuration page is displayed in the right frame. - Page 20 20/20 Innbox E94 Quick Start Guide Document issued by manufacturer Kontron, d. o. o., Ljubljanska cesta 24a 4000 Kranj, Slovenia T +386 4 207 20 00 F +386 4 207 2712 info@kontron.si www.kontron-slovenia.com © 2024 Kontron. All rights reserved Confidentiality: Public 4...
