Summary of Contents for Iskratel Innbox E80

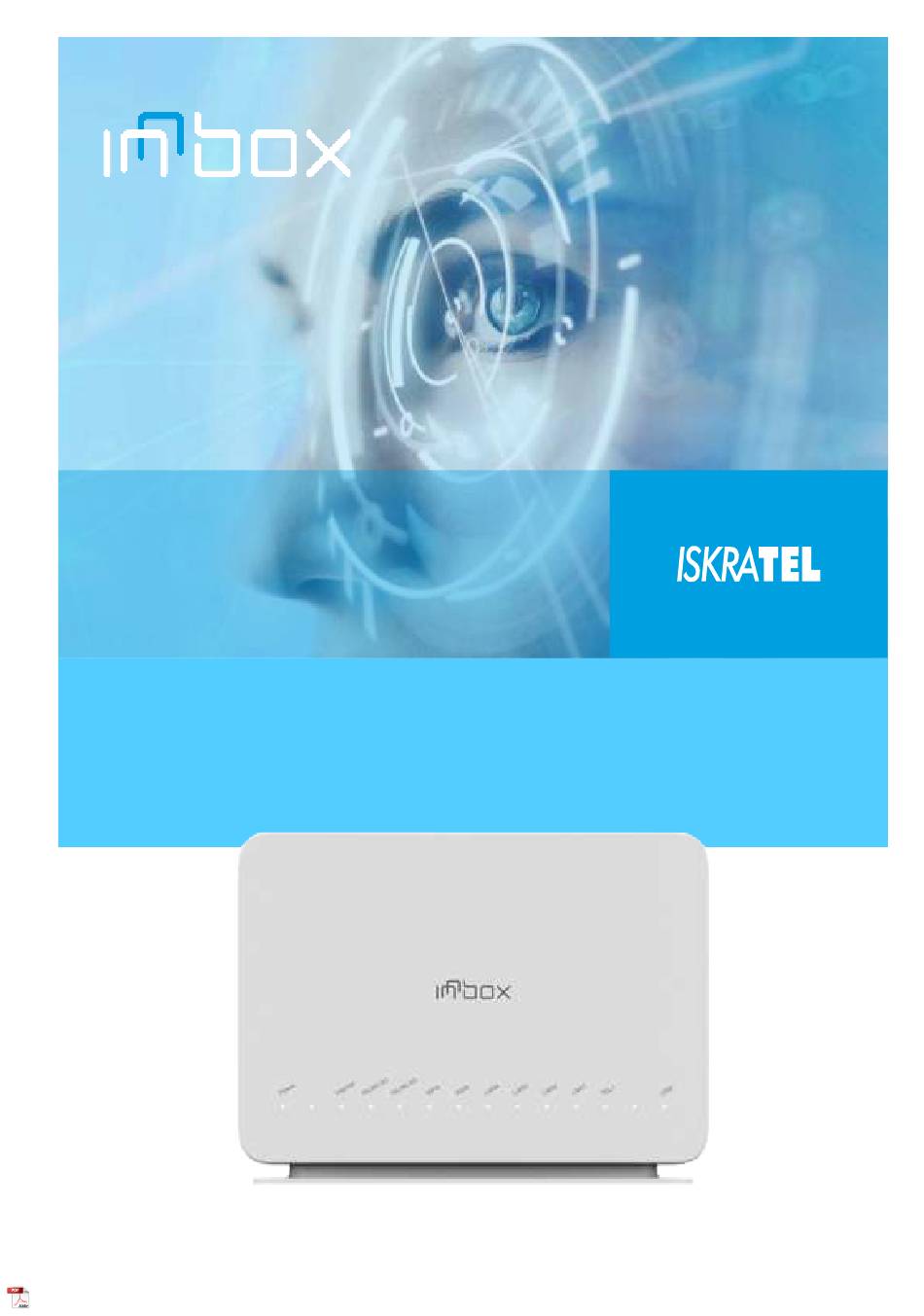

- Page 1 Ethernet Home Gateway Innbox E80 Quick Start Guide Iskratel, May 2020...
- Page 2 2/15 Innbox E80 Quick Start Guide © Copyright 2021 Iskratel. All rights reserved.
-
Page 3: Table Of Contents
Innbox E80 Quick Start Guide 3/15 Table of Contents Safety Precautions ......................4 Description of the Innbox E80 .................... 5 Front View ..........................5 Back View ........................... 6 Side View ............................ 7 Top View ............................. 7 Connecting to the Internet and Powering on ............... 8 Connecting Your Devices .................... -
Page 4: Safety Precautions
Innbox E80 Quick Start Guide Safety Precautions Congratulations on your purchase of the Innbox E80 home gateway! To ensure the optimum performance of the device without damaging the equipment or endangering yourself and other users, please make sure to follow all safety precautions. -
Page 5: Description Of The Innbox E80
Innbox E80 Quick Start Guide 5/15 Description of the Innbox E80 Front View The front panel of the Innbox E80 home gateway is equipped with several light indicators that provide you with the status of the device. Front panel light indicators Indicator... -
Page 6: Back View
On - The USB device is connected and recognized. Off - No USB device connected. Back View The back of the Innbox E80 home gateway is equipped with connectors and switches that allow you to connect your device. Back panel connectors... -
Page 7: Side View
Innbox E80 Quick Start Guide 7/15 Side View The side of the Innbox E80 home gateway is equipped with an USB connector that allows you to connect various USB devices. Side panel connector Item Purpose USB 2.0 Type-A connector for connecting external devices. -
Page 8: Connecting To The Internet And Powering On
8/15 Innbox E80 Quick Start Guide Connecting to the Internet and Powering on What you need: The Innbox E80 home gateway (included in the package) The power-supply adapter (included in the package) Ethernet RJ-45 cable Steps to follow: 1. -
Page 9: Connecting Your Devices
2. Plug the other end of the Ethernet cable to the Ethernet port on your computer. When the Innbox E80 home gateway is switched on and your computer connected, pay attention to the corresponding LAN light indicator. The light indicator should be on uninterruptedly or blinking. -
Page 10: Connecting A Set-Top Box
2. Plug the other end of the Ethernet cable to the Ethernet port on your set-top box. When the Innbox E80 home gateway is switched on and your set-top box connected, pay attention to the INTERNET light indicator. The light indicator should be on uninterruptedly or blinking. -
Page 11: Setting Up Internet Access On The Computer
11/15 Setting up Internet Access on the Computer Once you have powered on the Innbox E80 home gateway and connected the computer to it, you are ready to access the internet. The internet connection should be established automatically. Before you start using the internet, make sure that you have your PC set up to obtain the IP address automatically. -
Page 12: Web Management
12/15 Innbox E80 Quick Start Guide Web Management The web management enables you to view or edit the settings of the Innbox E80 home gateway, or to configure the plethora of supported functions. Accessing the Web Management What you need: ... -
Page 13: Getting Around The Web Management
Left frame (navigation tree) lists the home gateway functions that you can change. The function names act as hyperlinks: when you click a link, the corresponding configuration page is displayed in the right frame. Right frame (display area) displays a configuration page for the selected function. © Copyright 2020 Iskratel. All rights reserved. -
Page 14: Fcc Statement
2. this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. © Copyright 2021 Iskratel. All rights reserved. -
Page 15: Ic Statement
Document issued by –––––––––– (END OF DOCUMENT) –––––––––– Iskratel, d. o. o., Kranj Ljubljanska cesta 24a SI 4000 Kranj, Slovenia T +386 4 207 20 00 F +386 4 207 27 12 info@iskratel.si www.iskratel.com © Copyright 2020 Iskratel. All rights reserved.
