INSTALLATION INSTRUCTIONS
RGB Equipped Controllers

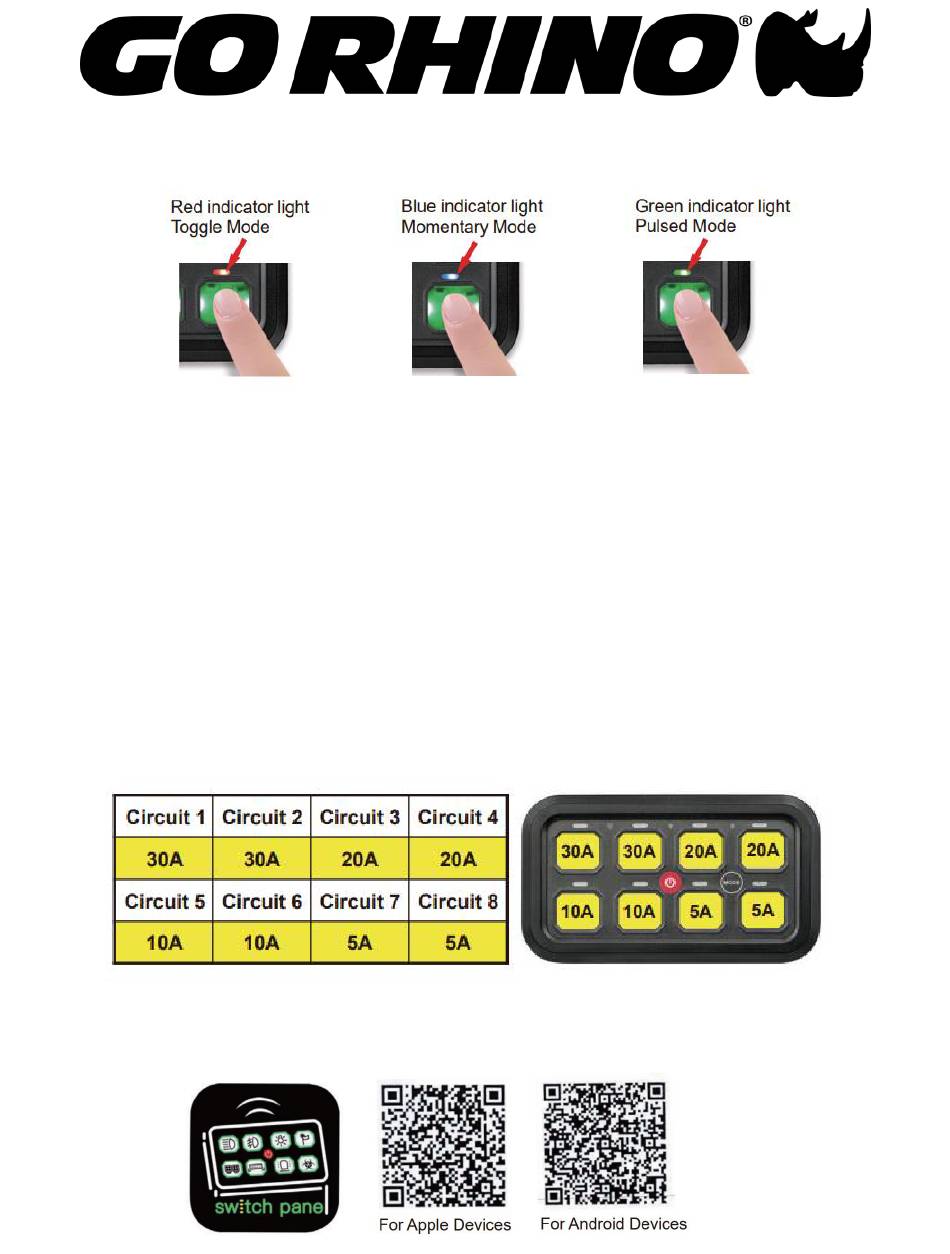

Accessory circuit 1-8 of the switch panel can be operated as Toggle or Momentary or Pulsed Mode. By default the
switch panel comes out of the box set for Toggle Mode. To enable or disable these three modes, please follow this
procedure.
Double click the MODE, all indicators will blink, then choose and click the button until its indicator shows the
mode you want: Toggle (indicator red), Momentary(indicator blue), Pulse(indicator green), click the MODE again
and your settings will be saved(If the setting is not saved within 12 seconds, all changes will be ignored)
Circuits
This switch panel control system has eight switch circuits, each has a maximum current rating. The total operating
amperage of the connected accessories can not exceed 60 amps (600 watts). You may have multiple electrical
devices or auxiliary LED lights connected that total more than 60 amps, but you can not have them turned on at
the same time. Otherwise, the control box will be damaged. The switch panel comes configured with the following
fuses:.
Mobile Phone App Control Available
Scan the QR code and download the App - Switch Panel, enjoy with more functions and performance from
controlling the switch panel via your mobile phone. Mobile phone App user guide will be come with the package.
