INSTALLATION INSTRUCTIONS
Locate the Circuit board mounting bracket. Secure the bracket to the desired location in an unobstructed
1.
area to safely route the wiring. Use the supplied hardware to secure.
Place the Circuit board onto the mounting bracket. Route the supplied positive and negative wiring,
2.
accessory switch wire and the switch panel wiring through the right side of bracket and the circuit board.
Connect the switch wire connector and the switch panel connector wires onto the circuit board.
3.
Connect the white wire to ACC / Factory dimmer switch and the red wire to a Positive power source.
4.
Connect the Positive and Negative wires to the circuit board. Remove the screw from the circuit board and
5.
place the wire onto the terminal, place the screw into the terminal and tighten using a Phillips head bit.
Install the circuit breaker in a accessible location. Secure using (2) of the supplied screws. Tighten using a
6.
Phillips bit driver.
Secure the positive cables on each terminal of the circuit breaker.
7.
Tighten using an 11mm socket. Place the clear cover over the circuit breaker.
8.
Connect the Positive and Negative wires to the battery.
9.
Secure the circuit breaker to the mounting bracket using (2) of the supplied nuts and bolts. Tighten using a
10.
Phillips head bit and an 10mm wrench.

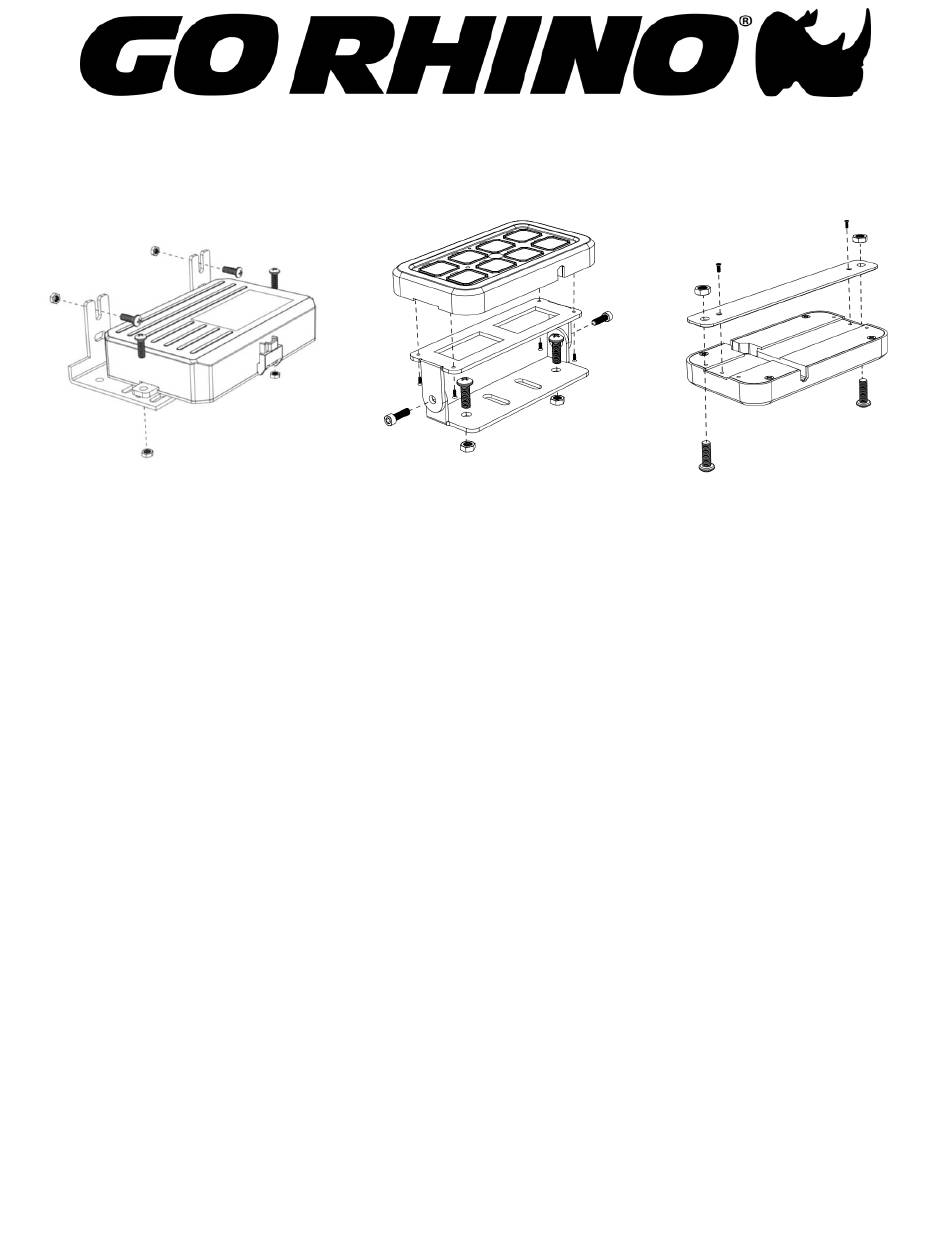

Locate the Switch panel and choose the mounting bracket that is best for your application and install the
11.
control panel using the supplied screws.
Mount the control panel into the desired location and connect the wiring harness together. Tighten the
12.
threaded nut to secure and seal the connectors.
Connect the wiring from the products that will be used by the switch panel. Choose from the fused 5A,
13.
10A, 20A, 30A slots for your application.
Press each button on the switch panel to confirm the switched product is working properly. Install the
14.
circuit breaker cover.
Choose the appropriate sticker for each switched application and apply onto the switch panel. Apply 8 of
15.
the stickers that closely matches the switched application onto the buttons of the switch panel.
