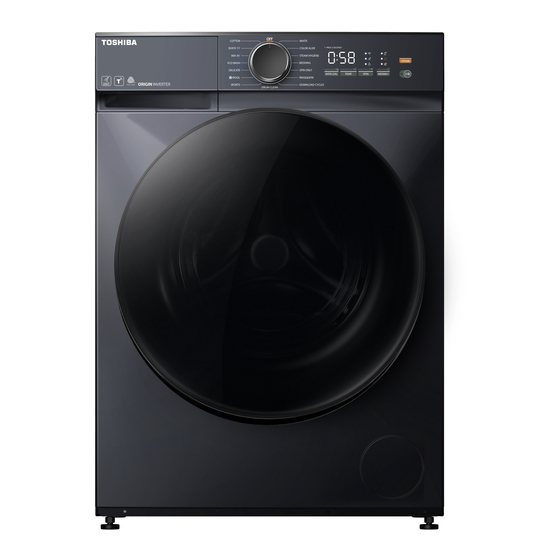

FRONT LOADING
WASHING MACHINE
OWNER'S MANUAL
MODEL :
TW-T21BU115UWM
TW-T21BU105UWM
TW-T21BU115UWS
TW-T21BU105UWS
Read This Manual
Read all instruction and explanation for the
instrallation before use. Follow the instructions
carefully. Keep the operation instructions handy
for later use. If the appliance is sold or passed
on, ensure that the new owner always receives
this operation instructions.
16138100A37557
6358034001
Advertisement
Table of Contents
Related Manuals for Toshiba TW-T21BU115UWM
Summary of Contents for Toshiba TW-T21BU115UWM
- Page 1 FRONT LOADING WASHING MACHINE OWNER’S MANUAL MODEL : TW-T21BU115UWM TW-T21BU105UWM TW-T21BU115UWS TW-T21BU105UWS Read This Manual Read all instruction and explanation for the instrallation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the appliance is sold or passed on, ensure that the new owner always receives this operation instructions.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions…………………………………… INSTALLATION Product Description …………………………………. Installation …………………………………..OPERATIONS Quick Start …………………………………………… Before Each Washing ………………………………… Detergent Dispenser ………………………………… Cotrol Panel ………………………………………… Option ……………………………………………… Other Functions ………………………………… Programmes …………………………………………... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed prevent property damage, personal injury or loss of life. Explanation of the symbols: Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided. - Page 4 SAFETY INSTRUCTIONS Before maintenance, unplug the appliance. This appliance must be grounded. In the event of Malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment -grounding conductor and grounding plug.The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
- Page 5 SAFETY INSTRUCTIONS RISK TO CHILDREN This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 6 SAFETY INSTRUCTIONS RISK OF EXPLOSION • Do not wash articles that have been cleaned in, washed in, soaked in , or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) This may result in re or explosion. •...
- Page 7 SAFETY INSTRUCTIONS INSTALLATIONS Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result. This appliance is equipped with a single inlet valve and can be connected to the cold water supply only. Mains plug must be accessible after installation. Before washing clothes for the rst time, the product shall be Before washing clothes for the rst time, the product shall be operated once throughout all the procedures without any clothes inside.
- Page 8 SAFETY INSTRUCTIONS WATER CONNECTIONS Check the connections of the water inlet hose, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by quali ed persons.
- Page 9 SAFETY INSTRUCTIONS OPERATION AND MAINTENANCE The washing machine is not to be used if industrial chemicals have been used for cleaning. Risk of explosion. Hands shall not be inserted into running drums. one round of the whole procedures without the clothes inside. The suggested program is "DRUM CLEAN".
- Page 10 SAFETY INSTRUCTIONS • Always unplug the appliance and close the water tap before cleaning and maintenance and after each use. • Never pour water over the appliance for cleaning purpose. Risk of electric shock! • Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 11 SAFETY INSTRUCTIONS ENVIRONMENT Disposal of old appliances For use in EU contries This appliance is labelled in accordance with the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). The directive provides the framework for the EU-wide take-back and recycling of waste equipment. The devices marked with this symbol must not be disposed of in household waste ! For use in other contries...
-
Page 12: Product Description
INSTALLATION Product Description Top cover Water inlet hose Control panel Power supply cord Detergent dispenser Drum Door Drain Pump Filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport Water inlet hose Drain hose... -
Page 13: Installation
INSTALLATION Installation Installation area Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W 20mm > Before installing the machine, the location characterized as follows shall be selected: 1.Rigid, dry, and level surface. - Page 14 INSTALLATION Levelling the washing machine Warning! • Check with the gradienter if the machine placement is balanced and steady. • If there is no gradienter, check the balance as per the following method. 1.If it’s balanced from left to right. •...
- Page 15 INSTALLATION Levelling the washing machine Warning! • The lock nuts on all four feet must be screwed tightly against the housing. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions and tighten the nuts. 2.Loosen the lock nut and turn the feet until it closely contacts with the floor.
- Page 16 INSTALLATION Connect the other end of water inlet hose to the inlet valve at the backside of product and fasten the hose tightly clockwise. water inlet hose water Inlet valve Drain Hose Warning! • Do not kink or protract the drain hose. •...
-
Page 17: Operations
OPERATIONS Quick Start Caution! • Before washing, please make sure it’s installed properly. • Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. The suggested program is “DRUM CLEAN”. 1. -
Page 18: Before Each Washing
OPERATIONS Before Each Washing • The working condition of the washer should be(0 -40 ).If used under 0°C,the °C °C inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water inlet hose and drain hose are not frozen before use. -
Page 19: Detergent Dispenser
OPERATIONS Detergent Dispenser Pre wash detergent Main wash detergent Softener Pull out the dispenser Caution! • To prevent powder detergent from remaining in the dispenser under low water pressure, add the poder detergent into the Container, then put it into the drum. •... -
Page 20: Cotrol Panel
OPERATIONS Control Panel Model:TW-T21BU115UWM / TW-T21BU105UWM / TW-T21BU115UWS / TW-T21BU105UWS Note! • The chart is for reference only, Please refer to real product as standard. Start/Pause Product is switched o . . Press the button to start or pause the washing cycle. - Page 21 OPERATIONS Option AROMA+ The function helps to modify the water flow mode and time. Then help the fibers to absorb softener more efficiently. As a result, with dosing the same amount of softener, we can achieve better fragrance left on the clohtes. DELAY END Set the Delay end function: 1.
- Page 22 OPERATIONS Option Programme Option DELAY END STEAM AROMA+ ○ ○ ○ COTTON QUICK 15’ ○ ○ MIX 45’ ○ ○ ○ ECO WASH ○ DELICATE ○ WOOL ○ ○ SPORTS ○ DRUM CLEAN ○ ○ DOWNLOAD CYCLES ○ RINSE&SPIN ○ SPIN ONLY ○...
-
Page 23: Other Functions
OPERATIONS Other Functions RELOAD Cloths can be added after strating washing process. Please follow the steps as bellow: 1. Press [ ] for 3 seconds. 2. Wait until the drum stops rotation. 3. The door is unlocked. 4. Add cloths into drum. 5. - Page 24 OPERATIONS SPIN SPIN Press the [SPIN] button to change the spin speed. Programme Default Spin Speed(rpm) Programme Default Spin Speed(rpm) 1000 COTTON RINSE&SPIN QUICK 15’ SPIN ONLY 1000 MIX 45’ BEDDING ECO WASH STEAM HYGIENE DELICATE COLOR ALIVE 1000 WOOL WHITE SPORTS JEANS...
- Page 25 OPERATIONS Instructions to Connection with the TSmartLife App Before you start, make sure that: 1. Your smartphone is connected to home Wireless Network,and you know the network password. 2. Make sure you are near the home appliance. 3. The 2.4GHz band wireless signal is enabled on your wireless router. Follow the below steps to enter the remote control state Download the TSmartLife App On an app market (Google Play Store, Apple App Store), search for...
- Page 26 OPERATIONS 4:If a message of "Smart devices discovered nearby" appears, click to add. 5:If no message appears, select " + " on the page and select your device in the list of nearby devices available. If your device is not listed, please add your device manually by the device category and device model.
- Page 27 OPERATIONS Wireless Network Status Light Waiting for connection Slowly ashing Connecting Quickly ashing Quickly ashing solid Connected to your wireless router Notes Make sure your devices are powered on. Keep your mobile phone close enough to your device when you are connecting network to your device.
-
Page 28: Programmes
Company for the washing of machine washable wool products provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M2203:TW-T21BU115UWM / TW-T21BU105UWM / TW-T21BU115UWS / TW-T21BU105UWS... -
Page 29: Washing Programmes Table
OPERATIONS Washing Programmes Table Model : TW-T21BU115UWM, TW-T21BU105UWM, TW-T21BU115UWS, TW-T21BU105UWS Programme Load(kg) Temp.(°C) Default Time 10.5 Default 10.5 1:18 COTTON Cold 0:15 QUICK 15’ 0:45 MIX 45’ 0:57 ECO WASH 0:50 DELICATE WOOL 1:07 SPORTS 0:45 DRUM CLEAN 1:18 DOWNLOAD CYCLES 10.5... -
Page 30: Maintenances
MAINTENANCES Cleaning And Care Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the dry cloth to wipe it off immediately. - Page 31 MAINTENANCES Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if water reduces than before. Washing the filter in the water inlet hose 1.Close the tap. 2.Remove water inlet hose from the tap. 3.clean the filter. 4.Reconnect the water inlet hose. Washing the filter in washing machine: Screw off the water inlet hose from the backside...
- Page 32 MAINTENANCES MAINTENANCES MAINTENANCES MAINTENANCES Cleaning The Drain Pump Filter Warning! • Be careful of the hot water! • Wait until the water cools down. • Unplug the machine to avoid electrical shock before maintenance. • Drain pump filter can filter the lints and small foreign matters from the washing.
- Page 33 MAINTENANCES Emergency Door Release In case of power failure or other circumstances and door cannot be opened. If it is necessary to open the door under this circumstances, please pull down the pull cord inside emergency door and restore the pull cord after opening the door.
-
Page 34: Trouble Shooting
MAINTENANCES Trouble Shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Description Reason Solution Washing machine Restart after the door is closed Door is not closed properly can not start up Check if the clothes is stuck... -
Page 35: Customer Service
Washing Dimension Rated Model Capacity (W*D*H mm) Weight Power TW-T21BU105UWM 9.5 kg 595*615*850 64 kg 1950W 64 kg 1950W TW-T21BU115UWM 10.5 kg 595*615*850 9.5 kg 64 kg 1950W TW-T21BU105UWS 595*615*850 10.5 kg 64 kg 1950W TW-T21BU115UWS 595*615*850 1 3 4...
