FRONT LOADING
WASHING MACHINE
OWNER'S MANUAL
MODEL:
TW-BK95GF4 Series
TW-BK105GF4
TW-BK115GF4
Read This Manual
Read all instructions and explanations for the
installation before use. Follow the instructions
carefully. Keep the operation instructions handy
for later use. If the appliance is sold or passed
on, ensure that the new owner always receives
this operation instructions.
Series
Series
Advertisement
Table of Contents
Related Manuals for Toshiba TW-BK95GF4 Series
Summary of Contents for Toshiba TW-BK95GF4 Series
- Page 1 FRONT LOADING WASHING MACHINE OWNER’S MANUAL MODEL: TW-BK95GF4 Series TW-BK105GF4 Series TW-BK115GF4 Series Read This Manual Read all instructions and explanations for the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the appliance is sold or passed on, ensure that the new owner always receives this operation instructions.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions…………………………………… INSTALLATION Product Description ………………………………… ………………………………………… Installation OPERATIONS Quick Start…………………………………………… Before Each Washing………………………………… Detergent Dispenser………………………………… Control Panel………………………………………… Option ……………………………………………… Other Functions ……………………………………… 23 Programmes ………………………………………… ………………………… Washing Programmes Table MAINTENANCES Cleaning And Care ………………………………… Trouble Shooting …………………………………… Technical Speci cations ……………………………... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it’s avoided. - Page 4 SAFETY INSTRUCTIONS • Before maintenance, unplug the appliance. • This appliance must be grounded. In the event of Malfunction or breakdown , grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. •...
- Page 5 SAFETY INSTRUCTIONS RISK TO CHILDREN • This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 6 SAFETY INSTRUCTIONS RISK OF EXPLOSION • Do not wash articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers,dry-cleaning solvents, kerosene, etc.) This may result in fire or explosion. •...
-
Page 7: Installation
SAFETY INSTRUCTIONS INSTALLATION Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result. This appliance is equipped with a single inlet valve and can be connected to the cold water supply only. Mains plug must be accessible after installation. Before washing clothes for the first time, the product shall be operated once throughout all the procedures without any clothes inside. - Page 8 SAFETY INSTRUCTIONS WATER CONNECTIONS • Check the connections of the water inlet hose, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak close the water tap and get it repaired.
- Page 9 SAFETY INSTRUCTIONS OPERATION AND MAINTENANCE • The washing machine is not to be used if industrial chemicals have been used for cleaning. Risk of explosion. • Hands shall not be inserted into running drums. • Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside.
- Page 10 SAFETY INSTRUCTIONS • Always unplug the appliance and close the water tap before cleaning and maintenance and after each use. Never pour water over the appliance for cleaning purpose. Risk of • electric shock! Repairs shall only be carried out by the manufacturer, its service •...
- Page 11 SAFETY INSTRUCTIONS ENVIRONMENT Disposal of old appliances For use in EU contries This appliance is labelled in accordance with the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). The directive provides the framework for the EU-wide take-back and recycling of waste equipment. The devices marked with this symbol must not be disposed of in household waste! For use in other contries...
-
Page 12: Product Description
INSTALLATION Product Description Top cover Water inlet hose Control panel Power supply cord Detergent dispenser Drum Door Drain Pump Filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Container(optional) Screw(optional) Transport... -
Page 13: Installation
INSTALLATION Installation Installation area Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W 20mm > Before installing the machine, the location characterized as follows shall be selected: 1.Rigid, dry, and level surface. - Page 14 INSTALLATION Levelling the washing machine Warning! • Check with the gradienter if the machine placement is balanced and steady. • If there is no gradienter, check the balance as per the following method. 1.If it’s balanced from left to right. •...
- Page 15 INSTALLATION Levelling the washing machine Warning! • The lock nuts on all four feet must be screwed tightly against the housing. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions and tighten the nuts. 2.Loosen the lock nut and turn the feet until it closely contacts with the floor.
- Page 16 INSTALLATION Connect the other end of water inlet hose to the inlet valve at the backside of product and fasten the hose tightly clockwise. water inlet hose water Inlet valve Drain Hose Warning! • Do not kink or protract the drain hose. •...
-
Page 17: Operations
OPERATIONS Quick Start Caution! • Before washing, please make sure it’s installed properly. • Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. The suggested program is “DRUM CLEAN”. - Page 18 OPERATIONS 1. Before Washing Main wash Prewash Softener Close door Plug in Open tap Load Add detergent Note! • Detergent only need to be added in "case I “after selecting pre-washing for machines with this function. 2. Washing Power On Select Programme Select function Start up or default...
-
Page 19: Before Each Washing
OPERATIONS Before Each Washing • The working condition of the washer should be 5 -40 . If used under 0°C, the °C °C inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water inlet hose and drain hose are not frozen before use. -
Page 20: Detergent Dispenser

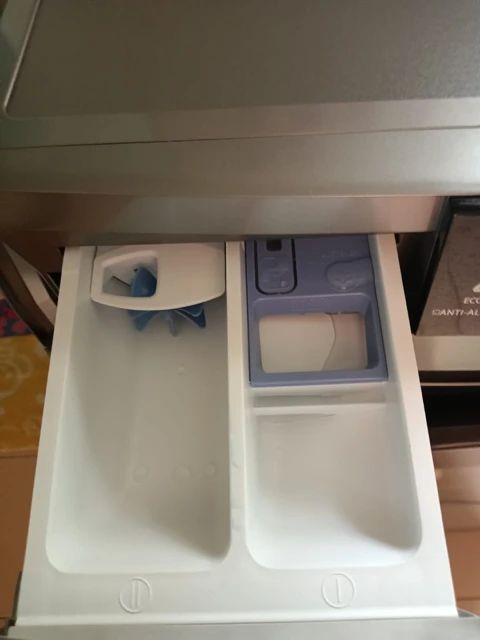

OPERATIONS Detergent Dispenser Pre wash detergent Main wash detergent Softener Container(optional) Pull out the dispenser Caution! • To prevent powder detergent from remaining in the dispenser under low water pressure, add the poder detergent into the Container, then put it into the drum. •... -
Page 21: Control Panel
OPERATIONS Control Panel Note! • The chart is for reference only, Please refer to real product as standard. On/O Start/Pause Product is switched on or o . Press the button to start or pause the washing cycle. Programmes Option Available according to the laundry type. This allows you to select an additional function and will light when selected. - Page 22 OPERATIONS Option PREWASH The Prewash function can get an extra wash before main wash,it is suitable for washing the dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it. EXTRA RINSE The laundry will under go extra rinse once after you select it. FAST WASH The function can decrease the washing time.
- Page 23 OPERATIONS Programme Option EXTRA STEAM DELAY FAST SOIL WASH PREWASH RINSE LEVEL ○ ○ ○ ○ ○ ○ COTTON ○ ○ ○ ○ ○ GREATWAVES ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ BEDLINEN ○ SPIN ONLY ○...
-
Page 24: Other Functions
OPERATIONS Other Functions RELOAD Cloths can be added after strating washing process. Please follow the steps as bellow: 1. Press [Start/Pause] for 3 seconds. 2. Wait until the drum stops rotation. 3. The door is unlocked. 4. Add cloths into drum. 5. - Page 25 OPERATIONS SPEED SPEED Press the [SPEED] button to change the spin speed. Programme Programme Default Speed(rpm) Default Speed(rpm) 1000 COTTON ANTI-ALLERGY 1000 GREATWAVES ECO WASH 1000 WOOL 1000 BEDLINEN WASH 45’ 1000 SPIN ONLY QUICK 12’ DRUM CLEAN TEMP. TEMP. Press the button to regulate the temperature(Cold,20°C,30°C, 40°C,60°C,90°C) The display show "--"...
- Page 26 OPERATIONS Instructions to Connection with the TSmartLife App Before you start, make sure that: 1. Your smartphone is connected to home WiFi network,and you know the network password. 2. Make sure you are near the home appliance. 3. The 2.4GHz band wireless signal is enabled on your wireless router. Follow the below steps to enter the remote control state Download the TSmartLife App On an app market (Google Play Store, Apple App Store), search for...
- Page 27 OPERATIONS 4:If a message of "Smart devices discovered nearby" appears, click to add. 5:If no message appears, select " + " on the page and select your device in the list of nearby devices available. If your device is not listed, please add your device manually by the device category and device model.
- Page 28 OPERATIONS WiFi Status Light Slowly flashing Waiting for connection Connecting Quickly flashing Quickly flashing solid Connected to your wireless router Notes Make sure your devices are powered on. Keep your mobile phone close enough to your device when you are connecting network to your device. Connect your mobile phone to the wireless network at home, and make sure you know the password of the WiFi.
-
Page 29: Programmes
OPERATIONS Programmes Programmes are available according to the laundry type. COTTON Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Mixed load consisting of textiles made of cotton and synthetics. GREATWAVES Can wash brightly colored clothes,it can protect the colors better. Lower temp. -
Page 30: Washing Programmes Table
OPERATIONS Washing Programmes Table °C Programme Load(kg) Temp. Default Time 10.5 Default 10.5 COTTON 1:18 GREATWAVES 3:47 10.5 1:10 10.5 BEDLINEN 1:48 10.5 SPIN ONLY 0:12 DRUM CLEAN 1:18 ANTI-ALLERGY 4:31 ECO WASH 0:55 WOOL 1:07 WASH 45’ 0:45 QUICK 12’ Cold 0:12 Note! -
Page 31: Maintenances
MAINTENANCES Cleaning And Care Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the dry cloth to wipe it off immediately. - Page 32 MAINTENANCES Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if water reduces than before. Washing the filter in the water inlet hose 1.Close the tap. 2.Remove water inlet hose from the tap. 3.clean the filter. 4.Reconnect the water inlet hose. Washing the filter in washing machine: Screw off the water inlet hose from the backside...
- Page 33 MAINTENANCES Cleaning The Drain Pump Filter Warning! • Be careful of the hot water! • Wait until the water cools down. • Unplug the machine to avoid electrical shock before maintenance. • Drain pump filter can filter the lints and small foreign matters from the washing.
-
Page 34: Trouble Shooting
MAINTENANCES Trouble Shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Description Reason Solution Washing machine Restart after the door is closed Door is not closed properly can not start up Check if the clothes is stuck... -
Page 35: Technical Speci Cations
MAINTENANCES Technical Specifications Power Supply 220-240V~,50Hz MAX.Current 0.05MPa~1MPa Standard Water Pressure Model Washing Dimension Rated Capacity (W*D*H mm) Weight Power 69kg 8.5kg 595*615*850 1900W TW-BK95GF4 Series 71kg 9.5kg 2000W TW-BK105GF4 Series 595*615*850 10.5kg 72kg 2000W TW-BK115GF4 Series 595*615*850 10 34...
