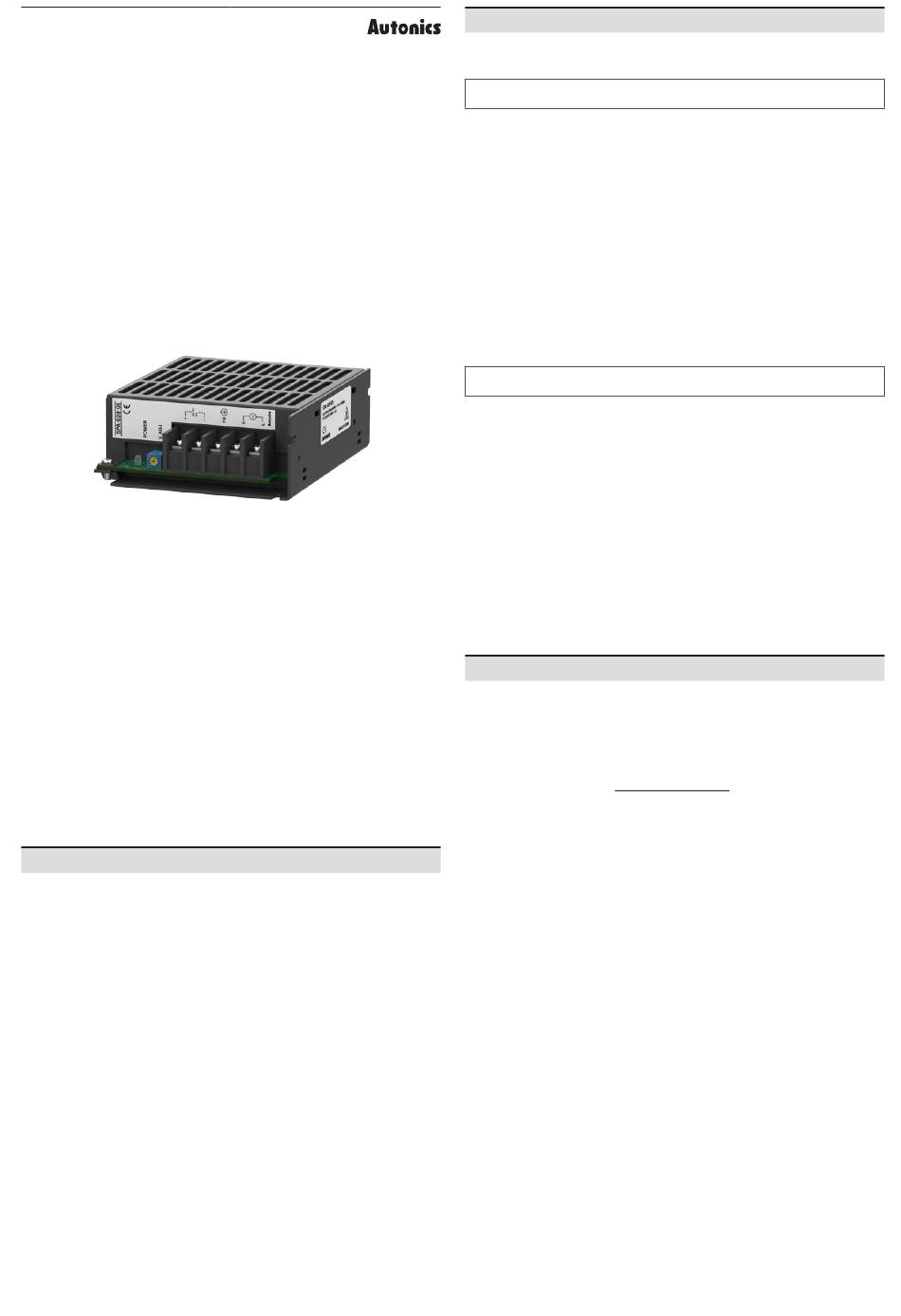

Autonics SPA Series Product Manual

TCD210171AA_MODI
Panel Mount SMPS
SPA Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
Major Features
• Stable power supply with minimal noise and ripple
• Built-in overcurrent protection circuit, output short-circuit protection circuit, overheat
protection circuit, and overvoltage protection circuits (overvoltage protection: SPA-
075/100 only)
• EN 60950 (Safety of information technology equipment) compliant
• EN 50178 (Electronic equipment for use in power installations) compliant
• EN 61000-6-2 (EMC: Immunity for industrial environments) compliant
• EN 61000-6-4 (EMC: Emission standard for industrial environments) compliant
• Output voltage: 5 VDCᜡ, 12 VDCᜡ, 24 VDCᜡ
• Output power: 30 W, 50 W, 75 W, 100 W
ᜢ ᜫ
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss. (e.g. nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime/disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use the unit in the place where flammable/explosive/corrosive gas,
high humidity, direct sunlight, radiant heat, vibration, impact, or salinity
may be present.
Failure to follow this instruction may result in explosion or fire.
03. Install on the device panel, and ground to the F.G. terminal separately.
Failure to follow this instruction may result in fire or electric shock.
04. Do not connect, repair, or inspect the unit while connected to a power
source.
Failure to follow this instruction may result in fire or electric shock.
05. Check 'Wiring Diagram' before wiring.
Failure to follow this instruction may result in fire.
06. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire or electric shock.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. When connecting the F.G. terminal, use AWG 14 (2.1 mm
tighten the terminal screw with a tightening torque of 0.7 to 0.9 N•m.
Failure to follow this instruction may result in fire or malfunction due to contact
failure.
02. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire, product damage or shortening
the life cycle of the product.
03. Use dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in electric shock or fire.
04. Keep the product away from metal chip, dust, and wire residue which flow
into the unit.
Failure to follow this instruction may result in fire or product damage.
05. Do not touch the product during operation or for a certain period of time
after stopping.
Failure to follow this instruction may result in burns.
06. Upon occurrence of an error, disconnect the power source.
Failure to follow this instruction may result in fire or product damage.
Cautions during Use
• Follow instructions in 'Cautions during Use' . Otherwise, it may cause unexpected
accidents.
• Do not connect the output voltage neither in serial nor in parallel.
• Since there is no harmonic suppression or power factor correction circuit, install the
circuit separately if necessary.
• Since using the condenser input method, power factor is in the range of 0.4 to 0.6.
When using distribution board or transformer, check the capacity of the input voltage.
Output active power (W)
Input apparent power (VA) =
Power factor×Efficiency
• Even though a noise filter is installed inside the product, the product can be affected
by noise depending on the installation location or wiring.
• If the internal fuse is damaged, please contact our A/S center.
• To ensure the reliability of the product, install the product vertically on the panel or
metal surface.
• Install the unit in the well ventilated place.
• Do not use near the equipment which generates strong magnetic force or high
frequency noise.
) cable or over and
