NETZSCH NM038BY02S12B Operating And Maintenance Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

NM038BY02S12B
D488511-488512
43014775/0030
13.10.2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NM038BY02S12B and is the answer not in the manual?

Questions and answers

Nay Myo
March 4, 2025

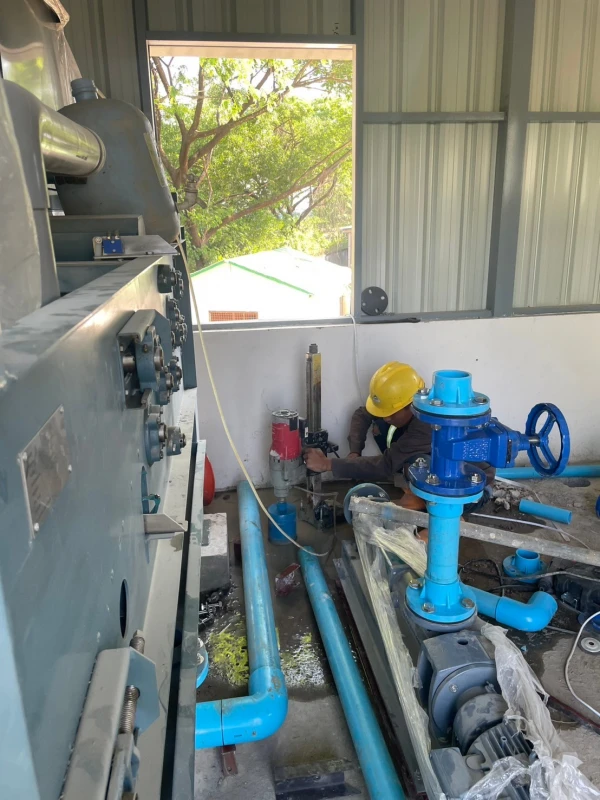

Hi, please advice me on the installation of MEMO pump. We have to install the one pump for the sludge feeding to belt press system in wastewater treatment system. Please find the following point; - underground tank(Sludge storage) depth is 3.5 m, so pump suction would be 3.3m depth - Although i have downloaded and read the instruction, i couldn't see this matter. Could you please clarify the following point; - maximum suction head (HS) of this pump type - which is the suction or discharge - Installation method

User image 67c6b4e07b2ad
0
2 comments:
Nay Myo
March 4, 2025

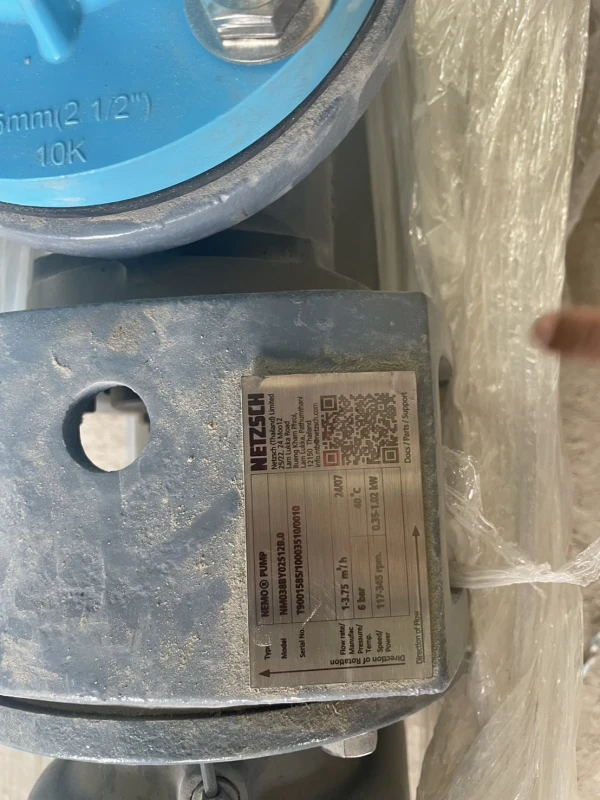

Please share the reference photos of installation and guidance

User image 67c6b58879bc4
0
Mr. Anderson
May 14, 2025

The maximum suction head (HS) for the NETZSCH NM038BY02S12B pump is not explicitly stated in the provided context. However, the pressure on the suction connection at maximum capacity is 0.10 bar. The installation methods for suction and discharge are not detailed in the provided context.

This answer is automatically generated

0

Related Manuals for NETZSCH NM038BY02S12B

Summary of Contents for NETZSCH NM038BY02S12B

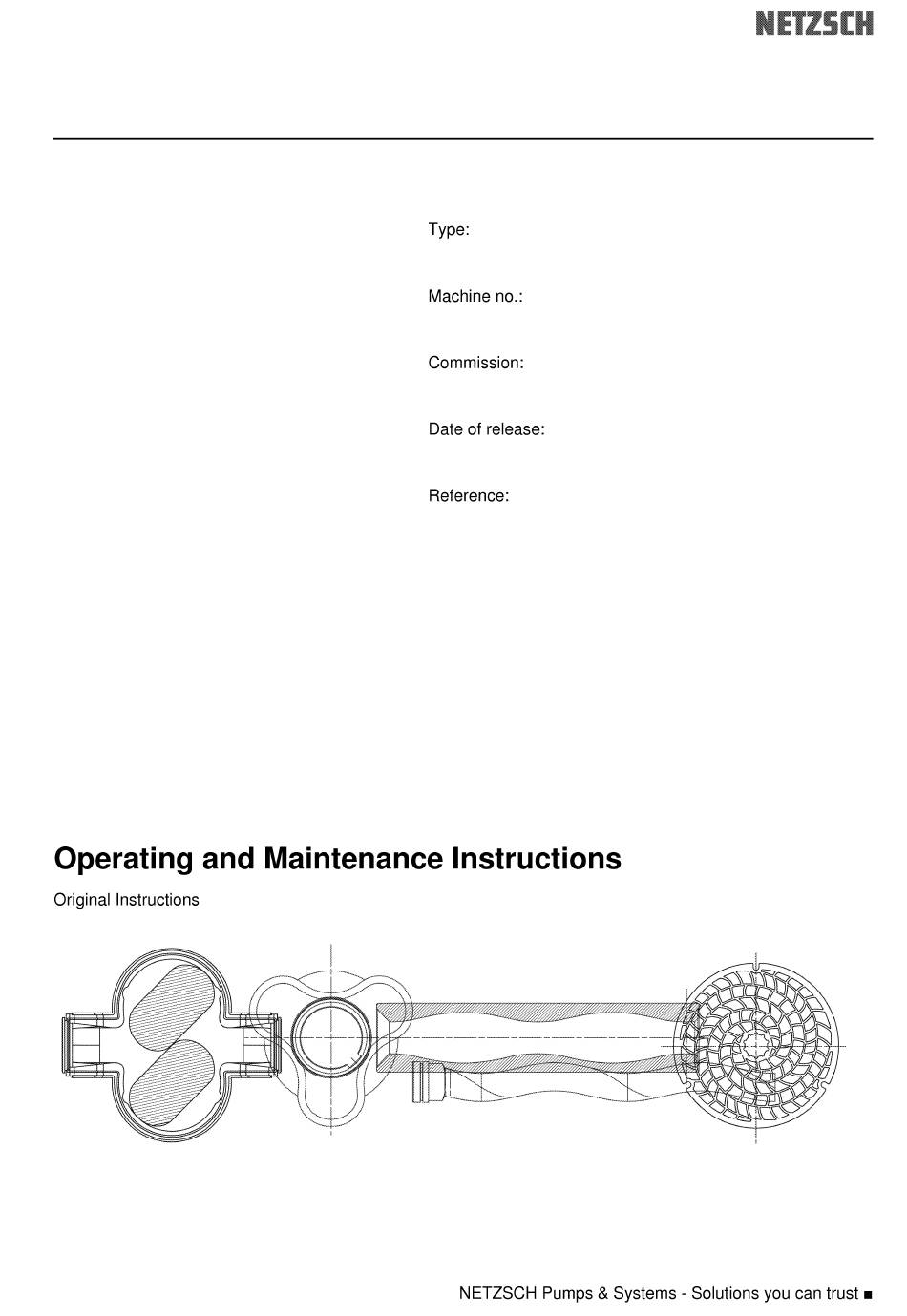

  • Page 1 NM038BY02S12B D488511-488512 43014775/0030 13.10.2015...
  • Page 129 NM038-12 3000 statorA 5172482 NM038--02S NEMOLAST®O62L 3001 stator housing 5190266 12-Kant; NM038--02S/01L Alu(6060 T5) 3002 stator housing 5190267 12-Kant; NM038--02S/01L Alu(6060 T5) 3003 closure 5190271 Drm.20mm; M10 NM038--02S/01L 1.4301 Model Commission-Nr. Product: NEMO® pump AG310 43014775/0030 Type: NM038BY02S12B 00156957 00...
  • Page 130 AFM30 8015 O-ring 516528 85x3 B DIN3770 NBR70 8060 O-ring 516653 43x3 B DIN3770 8235 SM®-pin joint seal 879898 NM038/NL30A 1.4401/FPM 9500 helical geared motor 5130354 SK20-90LH/4 -F(AL) T Model Commission-Nr. Product: NEMO® pump AG310 43014775/0030 Type: NM038BY02S12B 00156957 00...
  • Page 131 Gültigkeit für Wasser (1 cP) bei 20 °C. Toleranzen nach VDMA 24284 (+10%/-5%). Valid for water (1 cP) at 20 °C (70 °F). Tolerances are in accordance with VDMA 24284 (+10%/-5%). Rev.: 03/2007 Technische Änderungen vorbehalten. / Technical changes reserved. www.netzsch-pumpen.de...
  • Page 133 (Q-max): 53,24 Nm operating temperature (Q-min): 5 °C operating temperature (Q-max): 40 °C Execution: installation pump aggregate: horizontal general conditions: Installation area: in building NM038BY02S12B - D488511-488512 - 43014775 - 0030 - AG310 - 00156957 - 00 - 003.ETL36357...
  • Page 134 CrNiMo17-12-2 stator: stator material: NEMOLAST® O62L stator bolt material: 1.4301 Helical-Geared Motor Make/type: manufacturer: Nord type: SK20-90LH/4 type addendum: -F(AL) TF F Execution: drive construction: NM038BY02S12B - D488511-488512 - 43014775 - 0030 - AG310 - 00156957 - 00 - 003.ETL36357...
  • Page 135 F, used in accordance w.B thermal monitoring: wind.prot.3PTCi w/o tripping Forced Ventilations: forced ventilation voltage (V): protect.type f.forced ventila.: IP66 number of phases forced vent.: NM038BY02S12B - D488511-488512 - 43014775 - 0030 - AG310 - 00156957 - 00 - 003.ETL36357...
  • Page 143 NM038BY02S12B 2015 D488511-488512 43014775/0030 13.10.2015...
  • Page 145 NM038BY02S12B 2015 D488511-488512 43014775/0030 13.10.2015...
  • Page 147 Intelligent Drivesystems, Worldwide Services B1000 Operating and Assembly Instructions for DRIVESYSTEMS Gear Units and Geared Motors...

  • Page 149: Table Of Contents

    Contents Notes ..........................4 General information ......................4 Safety and information symbols ..................4 Correct use ........................4 Safety information ......................5 Other documents......................6 Disposal .......................... 6 Description of gear units ....................7 Type designations and gear unit types ................7 Name plate ........................

  • Page 150: Notes

    1. Notes Notes 1.1 General information Read the Operating Manual carefully prior to performing any work on or putting the gear unit into operation. Strict compliance with the instructions in this Operating Manual is essential. Getriebebau NORD accepts no liability for damage to persons, materials or assets as a result of the non-observance of this Operating Manual, operating errors or incorrect use.

  • Page 151: Safety Information

    1. Notes 1.4 Safety information All work including transportation, storage, installation, electrical connection, commissioning, servicing, maintenance and repair must be performed only by qualified specialist personnel. It is recommended that repairs to NORD Products are carried out by the NORD Service department.

  • Page 152: Other Documents

    1. Notes 1.5 Other documents Further information may be obtained from the following documents: - Gear unit catalogues (G1000, G2000, G1011, G1012, G1034, G1035) - Operating and maintenance instructions for the electric motor - if applicable, operating instructions for attached or supplied options 1.6 Disposal Observe the current local regulations.

  • Page 153: Description Of Gear Units
