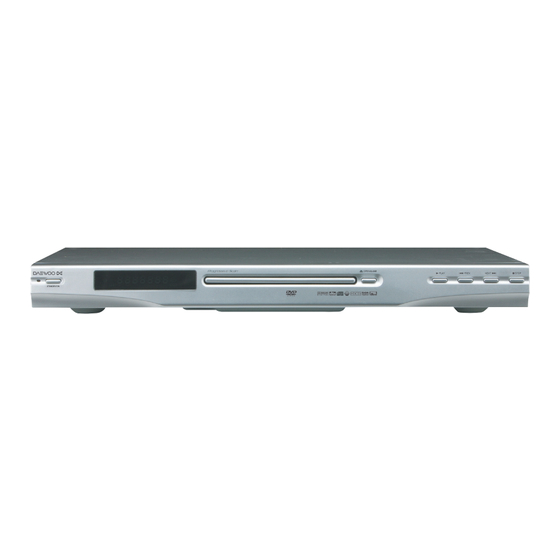

DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` a
D D V V D D
D D V V D D
D D V V D D
D D V V D D
D D V V D D
D D M M - - K K 5 5 0 0 2 2
INSTRUCTION MANUAL
P P L L A A Y Y E E R R
P P L L A A Y Y E E R R
P P L L A A Y Y E E R R
P P L L A A Y Y E E R R
P P L L A A Y Y E E R R
Progressive Scan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM-K502 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo DM-K502

Summary of Contents for Daewoo DM-K502

  • Page 1 DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` a D D V V D D D D V V D D P P L L A A Y Y E E R R P P L L A A Y Y E E R R...

  • Page 2: Table Of Contents

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 1 TABLE OF CONTENTS IMPORTANT SAFETY PRECAUTIONS ..2 PLAYING A DESIRED SCENE....19 To skip scenes in a disc........19 FEATURES ..........5 Directly moving to a desired title (DVD/VCD) . 19 ABOUT DISC .........

  • Page 3: Important Safety Precautions

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 2 IMPORTANT SAFETY PRECAUTIONS The lightning flash with arrowhead symbol, CAUTION within an equilateral triangle, is intended to alert the user to the presence of uninsulated RISK OF ELECTRIC SHOCK “dangerous voltage” within the product’s...
  • Page 4 DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 3 IMPORTANT SAFETY PRECAUTIONS This set has been designed and manufactured to assure should be moved with care. Quick stops, excessive personal safety. Improper use can result in electric shock or force, and uneven surfaces may cause the video product fire hazard.
  • Page 5 DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 4 IMPORTANT SAFETY PRECAUTIONS This will prevent damage to the unit due to lightning and F. When the unit exhibits a distinct change in power line surges. performance-this indicates a need for service.

  • Page 6: Features

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 5 FEATURES OUTSTANDING SOUND QUALITY Dolby Digital system developed by Dolby Laboratories and DTS developed by DTS Inc., features high quality surround sound which can be played in DVD or CD disc at home, to reproduce high quality sound effects.

  • Page 7: About Disc

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 6 ABOUT DISC PRINCIPLES FOR WRITING This manual mainly introduces how to use buttons on the remote control. You may operate the unit if the buttons on the unit have the same or similar names as or to those on the remote control.
  • Page 8 DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 7 ABOUT DISC CHAPTER It is smaller than title among the units of a DVD. A title is made up of several chapters , and each chapter has a number for search. But some discs may not have numbered chapters.

  • Page 9: Before Operation

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 8 BEFORE OPERATION SECURITY • Before operation, check if the voltage of the unit is in line with the local voltage. • Hold the plug to disconnect it from the mains outlet. Do not pull the power cord.
  • Page 10 DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 9 BEFORE OPERATION CHECK ACCESSORIES Check if you have all the accessories after the carton is opened. Remote control AAA batteries Video/Audio cord Instruction manual USE REMOTE CONTROL 1 Open the battery compartment.

  • Page 11: Preparations Before Operation

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 10 PREPARATIONS BEFORE OPERATION FRONT PANEL $ % ^ & ! STANDBY/ON button To switch the unit On or Off when connected to AC power outlet @ OPEN/CLOSE button To open or close the disc tray.

  • Page 12: Rear Panel

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 11 PREPARATIONS BEFORE OPERATION REAR PANEL & ! AUDIO OUT (L/R TRACK) Two phone sockets for analogue 2 Channel audio in order to a TV or stereo amplifier. @ VIDEO OUT Connects composite video signal to input AV or PHONE sockets of TV or monitor to achieve high fidelity colour reproduction.

  • Page 13: Vfd

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 12 PREPARATIONS BEFORE OPERATION & MP3 PBC ! Recognized DISC TYPE indicator 2 PBC indicator : DVD This indicator is lit up in selecting PBC ON while this indicator disappears in @ PLAY indicator selecting PBC OFF.

  • Page 14: Names And Layout Of Remote Controls

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 13 PREPARATIONS BEFORE OPERATION NAMES AND LAYOUT OF REMOTE CONTROLS * After setting the mode by using SETUP menu (for example, NTSC select in NTSC/PAL/AUTO setup), the setting is kept though you switch the unit off and turn it on.

  • Page 15: Connections

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 14 CONNECTIONS Turn off all equipment before operation. The unit has many kinds of output modes like A/V output, S-VIDEO output and digital signal output (COAXIAL, OPTICAL). You may select as you need.

  • Page 16: Basic Operations

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 15 BASIC OPERATIONS PLAY DISCS Press "POWER" button on the TV and audio system, Press "TV/VIDEO" button on the TV, select VIDEO mode (TV). Select S-Video mode if using an S-VIDEO connection. TV/VIDEO N ote: Select the correct audio input on the amplifier.

  • Page 17: System Setting

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 16 BASIC OPERATIONS SYSTEM SETTING According to the system of the TV to be connected, set the system of the unit to make it match the TV. Press SYSTEM button on the remote control, then choose TV TYPE.

  • Page 18: Fast Play

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 17 BASIC OPERATIONS FAST PLAY When playing disc, you may play it forward fast or reverse it fast to find what you need. N ote: Press to play forward fast. Each Press PLAY to play...

  • Page 19: Select Audio Language

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 18 BASIC OPERATIONS SELECT AUDIO LANGUAGE You can choose the language according to your choice when playing mulit- language DVD. Press “AUDIO” button, select different languages. N ote: AUDIO 1. Different disc has different languages 2.

  • Page 20: Playing A Desired Scene

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 19 PLAYING A DESIRED SCENE TO SKIP SCENES IN A DISC Press √ √ to move to the next chapter (or track). The current chapter (or track) moves to the next chapter (or track).

  • Page 21: Playing A Disc Containing Mp3 Files

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 20 PLAYING A DESIRED SCENE PLAYING A DISC CONTAINING MP3 FILES When a MP3 disc is loaded, MP3 menu screen is displayed automatically depending on MP3 disc’s folder structure. Use the direction button to select the folder you want to play and press the [PLAY] button.

  • Page 22: Repeating A Defined Period From A To B

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 21 PLAYING A DESIRED SCENE REPEATING A DEFINED PERIOD FROM A TO B You may press A-B to enjoy some parts repeatedly when playing a disc. 1. Press “A-B” to set a starting point A.

  • Page 23: Searching

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 22 PLAYING A DESIRED SCENE SEARCHING SEARCHING D SEARCHING D VD WITH A TITLE/CHAPTER NUMBER OR A TIME VD WITH A TITLE/CHAPTER NUMBER OR A TIME You may directly enter a title or chapter number to search fast on a disc.

  • Page 24: Play Discs In Various Ways

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 23 PLAY DISCS IN VARIOUS WAYS SELECT ANGLE Some discs have images with different screen angles, you may select among N ote: them. For example, when you watch a running train, you may select to watch it from the front, the left window or the right window without stopping it.

  • Page 25: Book Mark

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 24 PLAY DISCS IN VARIOUS WAYS Book Mark Press MARK button , the screen will N ote: show the following frame: If you erase a book mark function, press “RETURN” button. Moving direction button to select the saving position on the screen.

  • Page 26: Program Play (Dvd)

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 25 PLAY DISCS IN VARIOUS WAYS PROGRAM PLAY (DVD) You may program the title and chapter on a disc and play them in the programmed order. N ote: Press "PROGRAM" button, the screen...

  • Page 27: Program Play (Vcd)

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 26 PLAY DISCS IN VARIOUS WAYS PROGRAM PLAY (VCD) You may program the track on a disc and play them in the programmed order. Press "PROGRAM" button, the screen 1 _ _ 6 _ _...

  • Page 28: Digest Play (Dvd)

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 27 PLAY DISCS IN VARIOUS WAYS DIGEST PLAY (DVD) SELECT DIGEST TYPE : TITLE DIGEST Push "INTRO" button when the unit is CHAPTER DIGEST playing disc, the screen shows : TITLE INTERVAL CHAPTER INTERVAL...

  • Page 29: Digest Play (Vcd)

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 28 PLAY DISCS IN VARIOUS WAYS DIGEST PLAY (VCD) SELECT DIGEST TYPE : TRACK DIGEST Push "INTRO" button when the unit is DISC INTERVAL playing disc, the screen shows : TRACK INTERVAL Push direction button to select the INTRO digest type.

  • Page 30: Play Mp3, Jpeg Or Picture Cd

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 29 PLAY DISCS IN VARIOUS WAYS PLAY MP3, JPEG OR PICTURE CD SELECT TRACKS 00:00 00:00 Kbps STOP The screen will display as right after the 001/013 disc is loaded CD 01 CD 02...

  • Page 31: Function Setting

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 30 FUNCTION SETTING MENU SETTING According to the recorded information and external equipment, set the following functions for DVD to obtain the best playing status. Press "SETUP" button to set the main menu.
  • Page 32 DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 31 FUNCTION SETTING BASIC NAVIGATION To navigation through the setting on the screen, use the direction buttons to scroll through the list of settings and use “PLAY” button to select the high lighted function.

  • Page 33: Table Of Language And Their Abbreviations

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 32 FUNCTION SETTING LANGUAGE OSD LANG. N ote: “OSD” means When select a language, the screen show this language. “On Screen For example, if you select ENGLISH, the OSD is in English. Display”.

  • Page 34: Video

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 33 FUNCTION SETTING VIDEO TV DISPLAY NORMAL/PS This is selected when the unit is connected with a normal TV. Wide-screen images are shown on the screen, but with some parts cut automatically. NORMAL/LB This is selected when the unit is connected with a normal TV.

  • Page 35: Audio

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 34 FUNCTION SETTING CAPTIONS The hidden subtitle is shown or turn off. SCREEN SAVER Start the screen saver, the screen saver image appears when the unit stops or the image is motionless for a few seconds. This saver can keep the screen from being damaged.
  • Page 36 DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 35 FUNCTION SETTING DUAL MONO This is the output mode of the L and R signals of the set audio output. If it is set to "MIX MONO", the function only works when the DVD being played is 2.0-channel.

  • Page 37: Preference

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 36 FUNCTION SETTING PREFERENCE PASSWORD Select "PASSWORD" in PREFERENCE SETUP Old PWD New PWD menu to setup password, input a password. Confirm PWD Enter a password according to the screen. N ote: • The password is 3308 when the unit is turned on initially or you forget the password.

  • Page 38: Others

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 37 OTHERS TROUBLESHOOTING If you experience the following problems while using the unit, this troubleshooting guide can help you. • NO SOUND - Check if the unit is connected securely. - Make sure you operate the TV or amplifier correctly.

  • Page 39: Technical Specifications

    DM-K502 (GB) 2006.3.16 10:37 AM ˘ ` 38 OTHERS TECHNICAL SPECIFICATIONS Laser wavelength 650nm Video PAL/AUTO/NTSC Frequency response 20Hz ~ 20kHz (±1dB) ≥ 90dB Signal/noise ratio ≥ 85dB ( 1kHz) Channel separation Dynamic range ≥ 80dB ( 1kHz) output level : 2.0 + 0/-0.2Vrms Analog (Load impedance : 1,0kΩ)
