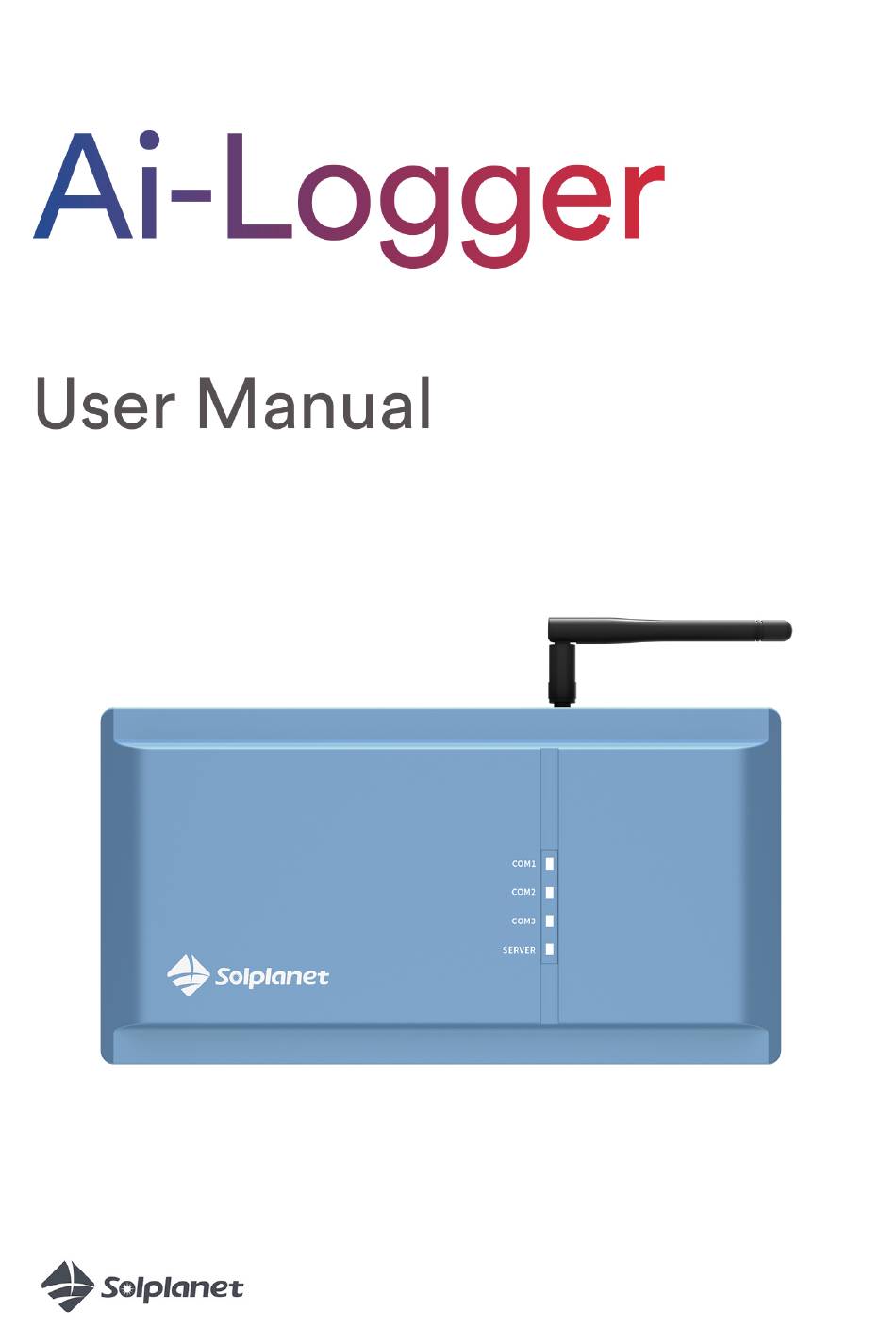

Solplanet Ai-Logger User Manual

Hide thumbs Also See for Ai-Logger:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ai-Logger and is the answer not in the manual?

Questions and answers

Related Manuals for Solplanet Ai-Logger

Summary of Contents for Solplanet Ai-Logger

  • Page 2: Table Of Contents

    Choose an installation location ......9 Decommissioning the product ....... 43 Installation tools ..........10 Disconnecting all the communication cable ..43 Install Ai-Logger 1000 ........11 Remove the rail from the wall ......43 5.3.1 Installing antenna ..........11 Remove the antenna ........44 5.3.2 Wall-mounted installation .......

  • Page 3: General Information

    You will find the latest version of this document and further information on the product in PDF format at www.solplanet.net. It is recommended that this document is stored in an appropriate location and be available at all times.

  • Page 4: Safety Warning Symbols Guide

    1.4 Safety warning symbols guide DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Indicates a situation which, if not avoided, can result in property damage.

  • Page 5: Safety

    2 Safety 2.1 Intended use The product is a highly integrated device dedicated for monitoring and managing the PV power system. It converges ports, converts protocols, collects and stores data, and centrally monitors and maintains devices in the PV power system. The product is only suitable for indoor use.

  • Page 6: Unpacking And Storage

    The product can be only used in door. 3 Unpacking and storage 3.1 Scope of delivery Check the scope of delivery for completeness according to the packing list.The following items should be included. Name Number Ai-Logger 1000 Antenna Document package Power adapter 1 (optional) Terminal (3 pin) Terminal (10 pin) 3.2 Product storage...

  • Page 7: Product Description

    4 Product Description 4.1 Appearance Ai-Logger 1000 is a special device for PV system monitoring and management platform, with functions such as interface aggregation, protocol conversion, data acquisition, data storage, centralized monitoring and centralized maintenance for each PV system device.

  • Page 8: Dimensions

    COM3 The communication of the devices connecting to COM3 port is Blinking interruption, or there is any device connecting to COM3. The communication between Ai-Logger 1000 and the Cloud Solid on Server is operating normally. SERVER The communication between Ai-Logger 1000 and the Cloud Blinking Server is interruption.

  • Page 9: Interfaces And Functions

    The product is equipped with two digtal signal output port. Those ports can be used to provide a control signal to the external device. USB port The product is equipped with a USB port. This port can be used to upgrade firmware and export data of Ai-Logger 1000 or inverter by inserting a USB stick. UM0033_Ai-Logger_EN_V01_0923...

  • Page 10: Communication Overview

    4.5 Communication overview Ai-Logger 1000 is connected to computer directly: Ai-Logger 1000 is connected to Internet through the router: UM0033_Ai-Logger_EN_V01_0923...

  • Page 11: Device Installation

    5 Device installation 5.1 Choose an installation location Choose an appropriate location and install Ai-Logger 1000 to ensure that Ai-Logger 1000 can work normally and efficiently. Please take the following into consideration when selecting an installation location: With the ingress of protection IP20, the Ai-Logger 1000 can be installed only indoors.

  • Page 12: Installation Tools

    5.2 Installation tools Installation tools include but are not limited to the following recommended ones. If necessary, use other auxiliary tools on site. Tools Reference picture User Impact When wall-mounted, it is used to punch holes in the wall. drill Diagonal plier Cut the cable ties.

  • Page 13: Install Ai-Logger 1000

    5.3 Install Ai-Logger 1000 5.3.1 Installing antenna Install the antenna on the thread of the Ai-Logger and screw it in clockwise. After installation, the antenna can be bent 90° and rotated 360°. 5.3.2 Wall-mounted installation DANGER Damage to cable lines can cause personal injury! The walls may be covered with power cords or other lines ( for example, gas or water).
  • Page 14 Use a pistol drill (φ6 drill bit is recommended) at the marked place to drill a depth of 24-25mm. Clean up follows. The thickness of the head is 2mm, and the diameter is φ6-10. Finally, hang the Ai-Logger 1000 on the debris in the hole, then install the expansion coil and screw on the wall.

  • Page 15: Rail Installation

    Ai-Logger 1000 to make the rail contact the two rail clips on the Ai-Logger 1000, then press the Ai-Logger 1000 to make the rail completely snap into the rail clips. If it is difficult to snap into place, use a flat-blade screwdriver and gently move the clip down through the hole, then the rail can be easily snapped into place.
  • Page 16 Step 4： Fix the end brackets on the rail at both ends to prevent the Ai-Logger 1000 from moving on the rail. Step 5： Check to make sure the Ai-Logger 1000 is securely installed. UM0033_Ai-Logger_EN_V01_0923...

  • Page 17: Electrical Connection

    6 Electrical connection When making electrical connections, make sure all cables are securely connected to prevent loosening.  Ai-Logger 1000 does not have a power-on button, please do not connect the power adapter until the electrical  connection is completed.

  • Page 18: Com Ports Connection

    6.2.1 RS485 cable connection Ai-Logger 1000 is equipped with three seperate RS485 interfaces. They are marked as COM 1, COM 2 and COM 3. Those ports can connect to Solplanet inverter and the other third party device with the standard MODBUS-RTU protocol.

  • Page 19: Connect To Multiple Inverters Or Weather Station

    6.2.2 Connect to multiple inverters or weather station. Multiple inverters and Weather station are connected to the Ai-Logger 1000 in the RS485 daisy chain manner. There are three separate RS485 interfaces, each of RS485 interface can connect up to 30 devices, but the total devices can be connected is 80.

  • Page 20: Connect To A Smart Meter

    It is recommended that the cable length should not exceed 100 meters.  Ai-Logger 1000 can be connected to Ethernet switches, routers and other devices through the standard Ethernet cable, and can also be connected to the Ethernet electrical port of a PC directly or through a Hub.

  • Page 21: Digital Signal Input Interface Connection

    The digital input signal terminal of Ai-Logger 1000 can be used to connect the Ripple Control Receiver or Demand Response Enabling Device (DRED), as shown in the figure below.

  • Page 22: Connect To Ripple Control Receiver

    Step 3： Insert the terminal block into the digital signal input port. 6.4.2 Connect to Ripple Control Receiver Ripple Control Receiver normally have four dry contacts. The digital input signal interface of the Ai-Logger 1000 can be connected to Ripple Control Receiver as shown in figure below.

  • Page 23: Connect To Demand Response Enabling Device (Dred)

     Ai-logger 1000 is equipped with two dry contact output port. Those ports can be used to provide a control signal to the external device. Those ports can only be connected to a circuit that the voltage is lower than 24 Vdc and the current is lower than 2 Adc.
  • Page 24 Procedure: Step 1： Strip the cable jacket and insulation layer with a wire stripper by about 15mm and 8mm to 10mm respectively. Step 2： Use a slotted screwdriver press the yellow button, and then insert the conductors into the hole, take out the screwdriver and then the conductor is locked.

  • Page 25: Install Mico-Sim Card

    6.7 Power supply connection The recommended power-on sequence is: Inverter > Ai-Logger 1000 > Computer. The power supply of the Ai-Logger 1000 is form the external power adapter. Plug the connector of the adapter to the soket, but don’t power on the adapter.

  • Page 26: Commissioning

    WEB of Ai-Logger 1000, please refer to 8.5.3.3 Set Demand Response Enabling Device (DRED) parameter for details. The addresses of all devices on each daisy chain must be within the address range set by Ai-Logger 1000, and there ...

  • Page 27: Web Interface

    If Ai-Logger 1000 is connected to computer directly or through Hub, both the IP addresses of the computer and  HUB need to be set in the same network segment as Ai-Logger 1000. The default IP address of the Ai-Logger 1000 is 160.190.0.1.
  • Page 28 After logging into the WEB interface, if the page is blank, or if you click any menu page without jumping, you can clear the cache, refresh the page or log in again to solve the problem. It is recommended to update the password regularly and remember the changed password to keep your account safe. Long-term use of the password will increase the risk of theft and cracking.

  • Page 29: Overview

    8.3 Overview 8.3.1 Plant operation information Click “Overview > Plant Overview” to enter the overview information. And click “Systerm power”, “Energy daily”, “Energy monthly” and “Energy yearly” to find the more details. 8.3.2 Fault warning Click “Overview > Fault&Warning” to enter the fault information. The key words can be fill in to search the information. 8.3.3 System power generation Click“Overview >...

  • Page 30: Performance Data

    According to the hourly storage (daily power generation), it can be stored for 30 days.  According to the daily storage (monthly power generation), it can be stored for 1 year.  According to the monthly storage (annual power generation), it can be stored for 10 years. ...

  • Page 31: Device Monitoring

    8.4 Device Monitoring 8.4.1 Ai-Logger Click “Device > Ai-Logger” to enter the related information of Ai-Logger 1000. 8.4.2 Inverter Click “Device > Inverter” to enter the inverter list. Click the series number in the list to enter the more details information of one of the inverters. Click “Running data”, “Fault&Warning”, “Performance data”, “Energy”, “Safety settings”...

  • Page 32: Smart Meter

    Since different vendors have different protocol points, the parameters must be properly configured on the WEB of Ai- Logger 1000 according to the protocol points provided by the vender in order to get smart meter information properly. The parameters need to be set manually through the embedded WEB of Ai-Logger 1000, please refer to 8.5.4.3 Device Management.

  • Page 33: Weather Station

    Since different vendors have different protocol points, the parameters must be properly configured on the WEB of Ai- Logger 1000 according to the protocol points provided by the vender in order to get Weather Station information properly. The parameters need to be set manually through the embedded WEB of Ai-Logger 1000, please refer to 8.5.4.3 Device Management.
  • Page 34  records. Please do not arbitrarily change the time zone and system time. If Ai-Logger 1000 is connected to the Internet, it will automatically synchronize with the cloud server. So there is no  need to set the “Date and Time".

  • Page 35: Communication Parameters

    Then fill in the yield factor as the revenue per kilowatt-hour and the CO2 reduction factor, and then click “Submit” to finish setting. 8.5.2 Communication parameters 8.5.2.1 Set network parameter Click “System settings > Communication settings > Network settings” to set IP address of the Ai-Logger 1000. UM0033_Ai-Logger_EN_V01_0923...

  • Page 36: Energy Scheduling

    8.5.2.2 Set RS485 parameter Click “System settings > Communication settings > RS485 settings” to set the RS485 ports of the Ai-Logger 1000. Click the drop-down menu for the device type to choose the device that will be connected to this port. Click the drop-down menu for the baud rate to choose the baud rate.
  • Page 37  Ai-Logger 1000 provides a simple active power limited method according to the grid company plan. The time period and the power generation as the percent of the plant rated power can be set here. And then click “Submit” to finish setting. The active power will be limited automatically according to different time periods of the day.
  • Page 38 Export active power limit  The export active power control solution measures the active power at the point where the customer’s installation is connected to the distribution system (point of grid connection) and then uses this information to control the inverter’s output active power in order to prevent the export active power to the distribution system from exceeding the agreed export capacity.
  • Page 39 8.5.3.2 Reactive power schedule Click “System settings > Energy scheduling > Reactive power schedule” to set the reactive control method. Click the drop- down menu for mode to choose the different method. 8.5.3.3 Set Demand Response Enabling Device (DRED) parameter Click “System settings >...

  • Page 40: Maintenance

    Inverter firmware upgrade  Click “Maintain > Firmware upgrade > Inverters” to update the firmware of the inverters that are connected to the Ai-Logger 1000. Click “Browse Files” to upload the firmware document, and then click “Broadcast” to choose the RS485 port, and then click “Submit”...
  • Page 41 Ai-Logger 1000 firmware upgrade  Click “Maintain > Firmware upgrade > Datalogger” to update the firmware of the Ai-Logger 1000. Click “Browse Files” to upload the firmware document, and then click “Upgrade” to start update the firmware of the Ai- Logger 1000.
  • Page 42 8.5.4.2 Security Settings Click “Maintain > Security settings” to change the login password. 8.5.4.3 Device Management Click “Maintain > Device management” to manage the devices that are connected to the Ai-Logger 1000. Automatic search for inverters  Click “Auto search” to choose the RS485 port, and then click “Submit” to automatically search the devices that are connected to the Ai-Logger 1000.
  • Page 43  If the Weather Station or the Smart Meter is connected to the Ai-Logger 1000, the device should be added by manual. Click “Add device” to choose the information for the Weather Station or Smarter Meter. Fill in the communication address and click “Submit”...
  • Page 44 Only the types that are approved by Solplanet can be connected to Ai-Logger 1000 and can be chosen from the drop- menu for device type. Before manually adding a Modbus meter or DL/T645 meter, you need to set the RS485 parameters correctly on the meter.

  • Page 45: Decommissioning The Product

    9 Decommissioning the product 9.1 Disconnecting all the communication cable Procedure: Step 1： Disconnect the external power adapter of the Ai-Logger 1000. Step 2： Pull out the Micro-SIM card. Step 3： Disconnect the dry contact output interface connection. Step 4： Disconnect the digital signal input interface connection.

  • Page 46: Remove The Antenna

    9.3 Remove the antenna Rotate the antenna counterclockwise and remove. UM0033_Ai-Logger_EN_V01_0923...

  • Page 47: Technical Data

    10 Technical data Ai-Logger 1000 Communication Number of devices managed Communication ports RS 485 interface 3, Modbus-RTU Ethernet 1×RJ45, 10/100Mbps Digital input 8, max. 24V Digital output 2, max. 24V Wireless communication WLAN communication 802.11 b/g/n, 2.400 GHz ~ 2.497 GHz...

  • Page 48: Troubleshooting

    11 Troubleshooting When the Ai-Logger 1000 does not operate normally, we recommend the following solution for quick troubleshooting. Item Fault Possible causes Suggested solutions number Check the power adapter, plug the DC output into the “ Power ” port of the Ai-Logger.
  • Page 49 3. The baud rate of the weather weather station is set correctly. station is not set to 9600 The Ai-Logger is not connected to the Check whether the Ethernet port of able to communicate PC , or the cable connection is loose...

  • Page 50: Maintenance

    12 Maintenance To ensure the Ai-Logger 1000 can run well for a long time, it is recommended to perform routine maintenance according to the descriptions in this document. Make sure that no strong electromagnetic interference devices are placed around the Ai-Logger 1000.

  • Page 51: Service And Warranty

    If these conditions are not met, Solplanet has the right to refuse to provide with the relevant warranty service.
  • Page 52 Ai-Logger can only be operated by trained professional electrical technicians. Operators should be quite familiar with the composition and working principle of the entire grid-connected PV system, as well as the relevant standards of the country/region where the project is located.

This manual is also suitable for:

Ai-logger 1000
