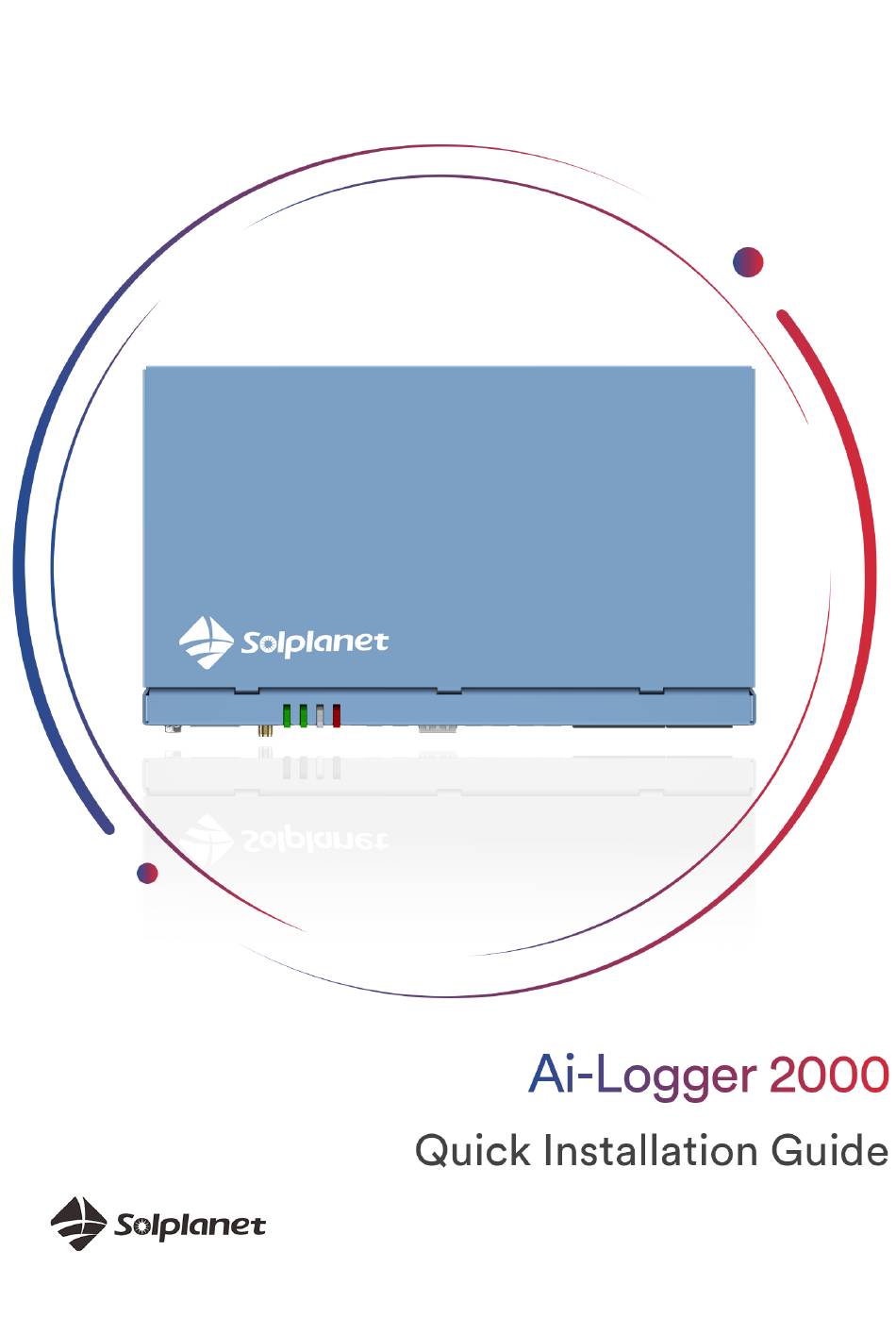

- Page 1 Quick installation guide Original version ...
-
Page 3: General Information
The contents of this guide may be updated or revised due to on-going product development and continuous improvement. The information in this guide is subject to change without notice. The latest version of this document and the user manual for installation, commissioning, configuration and decommissioning are to be found in PDF format at www.solplanet.net. 2 Safety Intended use The device is a compact solution for monitoring and managing multi-model composite systems. -
Page 4: Eu Declaration Of Conformity
137/10, March 31,2015) (RoHS) AISWEI Technology Co., Ltd. confirms herewith that the product described in this manual are in compliance with the fundamental requirements and other relevant provisions of the above mentioned directives. The entire EU Declaration of Conformity can be found at www.solplanet.net. Ai-Logger 2000_EN_V01... - Page 5 4 Overview Name Name 100 Gigabit Ethernet ports (LAN1/2/3/4) LED indicators Mounting brackets Digital signal output port DIN rail mounting bracket 12 V power output port Additional Grounding Screw PT temperature sensor port (PT100/1000) ABUS communication port Analog signal input port Wi-Fi antenna port Digital Signal Input Port (DI) USB port...
-
Page 6: Scope Of Delivery
5 Scope of Delivery Name Quantity Ai-Logger 2000 Mounting bracket Terminal (20 pin) Terminal (14 pin) Terminal (2 pin) ABUS Terminal DIN rail mounting bracket Wall anchor with screw M3 screws Quick installation guide Wi-Fi antenna 12 V Power Supply Adapter... - Page 7 6 Interpreting LED indicators Status LED indicator Description Green light off: Unit is either not powered or faulty. System operation indicator (RUN) Green light on: System is powered and operating normally. Red light off: No alarms, or system is not powered. Alarm status indicator (ALM) Red light on: Emergency/Alarm;, system stopped or the core module...
- Page 8 8 Mounting Installation environment Mounting Ai-Logger 2000_EN_V01...
- Page 9 PE Cable connection Installing the Wi-Fi Antenna NOTICE Recommended communication distance less than 3 M. Ai-Logger 2000_EN_V01...
- Page 10 RS485 communication connection The RS485 communication module supports 6 independent RS485 connections and protocols including Modbus-RTU, standard IEC103, and DL/T645. Connect multiple inverters or environmental monitors Ai-Logger 2000_EN_V01...
- Page 11 Connect Smart Meters NOTICE On the same RS485 bus, the communication parameters should be the same except for the device address. The smart meter, as a parallel monitoring device, needs to occupy one RS485 port exclusively. ABUS communication port connection Ai-Logger 2000_EN_V01...
- Page 12 NOTICE Single-phase Connect L1 and L2 as shown in the diagram, to avoid communicatio issues or command loss. If both Ai-Logger 2000 and inverter support ABUS communication, they can connect via AC power line. In this case, the RS485 ...
- Page 13 Ethernet WAN Port connection NOTICE When crimping the cable, make sure that the shield of the cable is securely connected to the metal casing of the crystal head. SFP Fiber Optic Interface connection Ai-Logger 2000_EN_V01...
- Page 14 NOTICE The optical module is optional. If you configure it by yourself, select a 100/1000 Mbps optical module according to the docking port of the optical switch. The optical module adopts SFP or eSFP package. 100 Mbps modules support transmission distances >12km. ...
- Page 15 8.12 Analog signal input connection Analog input for connecting environmental monitoring sensors, with a recommended transmission distance of no more than 10 m. 8.13 12 V power output port connection The port provides 12 V output with a maximum capacity of 0.1 A for sound and light alarm applications, driving intermediate realy coils.
- Page 16 NOTICE Use an intermediate relay with a coil containing a renewable diode for device damage prevention. 8.14 Digital signal output connection Supports 4-channel relay outputwith a maximum signal voltage of 12 V. Recommended transmission distance ≤ 10 m. Ai-Logger 2000_EN_V01...
- Page 17 8.15 24 V power supply connection 8.16 12 V power supply connection Ai-Logger 2000_EN_V01...
- Page 18 3-wire NOTICE The Ai-Logger 2000 has two PT ports, supporting 3-wire or 2-wire PT100/PT1000 temperature sensors. When connecting a 2-wired PT100/PT1000 sensor to the PT port, use a shorting cable to connect “GND” and “-” on the corresponding port.
- Page 19 Please contact our Service Department if you have any technical questions about our products. The following information is needed to provide necessary assistance: ——Product serial number ——Fault code ——Installation location ——Warranty card EMEA Service email: service.EMEA@solplanet.net APAC Service email: service.APAC@solplanet.net LATAM Service email: service.LATAM@solplanet.net Aiswei Greater China Service email: service.china@aiswei-tech.com...
- Page 20 Ai-Logger 2000_EN_V01...
