Rupert Neve Designs 500 Series Operation Manual

Tape emulator
Hide thumbs Also See for 500 Series:

Advertisement

Quick Links

Download this manual
542
500 Series Tape Emulator
Operations Manual
Operations Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 500 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rupert Neve Designs 500 Series

Summary of Contents for Rupert Neve Designs 500 Series

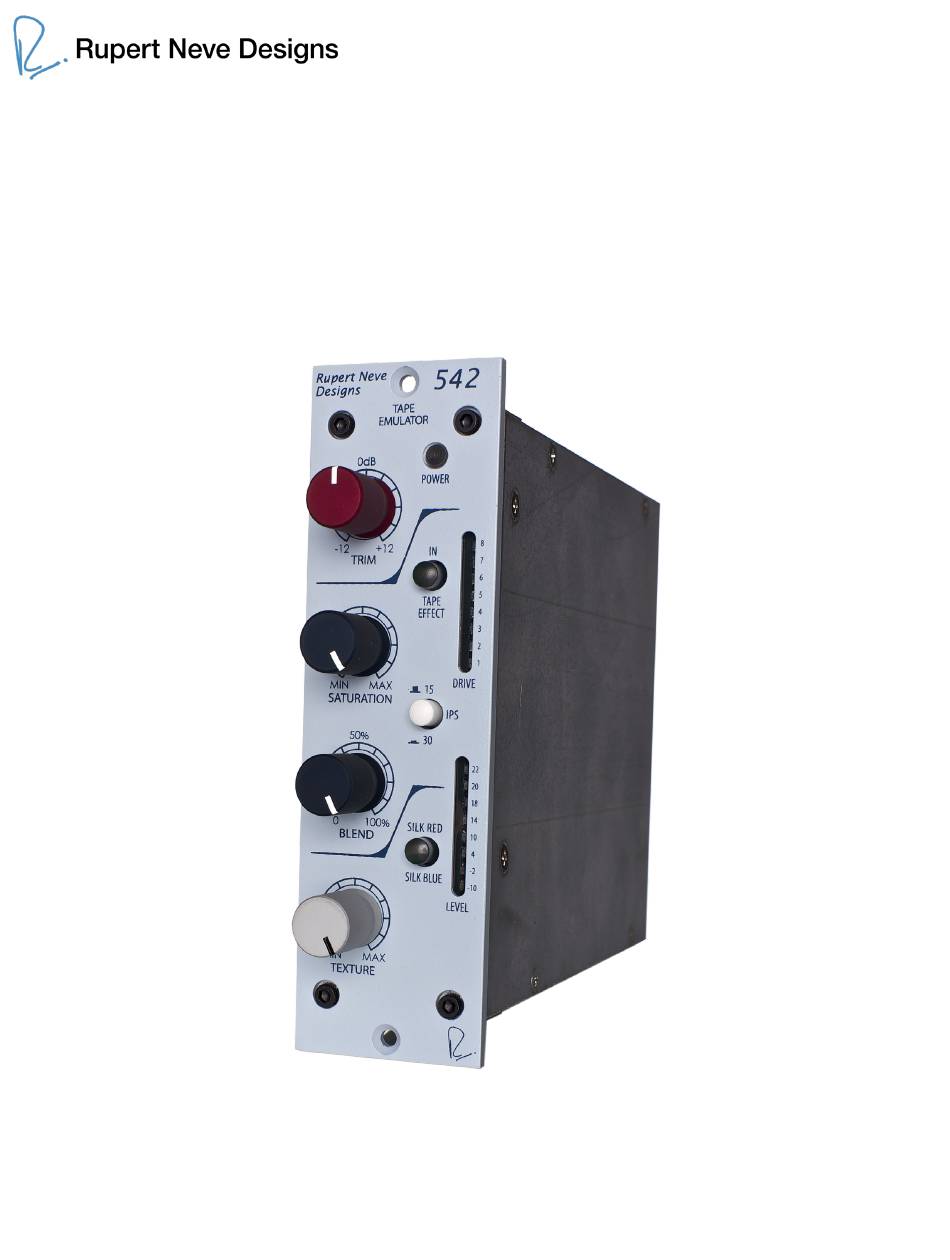

  • Page 1 500 Series Tape Emulator Operations Manual Operations Manual...

  • Page 2: Important Safety Instructions

    CAUTION: Changes or modifications to this device not expressly 11. Only use attachments/accessories specified by the manufacturer. approved by Rupert Neve Designs LLC, could void the user's authority to 12. Use only with a cart, stand, tripod, bracket, or PORTABLE CART operate the equipment under FCC rules.
  • Page 3 Table of Contents Introduction Block Diagram Front Panel 542 Features Specifications Limited Warranty...
  • Page 4 Rupert Neve Designs 542: Tape Emulator Thank you for purchasing the Rupert Neve Designs 542 Tape Emulator. We hope you enjoy using this prod- uct as much as we have enjoyed designing and building it. The 542 is designed to emulate the unmistakable harmonic saturation of analog tape.
  • Page 5 542 Front Panel Silk screen color : PMS 295U Rupert Neve Designs TAPE EMULATOR POWER LED that illuminates BLUE to indicate POWER Power Status TRIM Continuously variable +/- 12dB ‘pre- TAPE EFFECT IN tape’ level control Illuminated push-button switch that engages the ‘tape’...
  • Page 6 542 Front Panel Features POWER LED that illuminates BLUE to indicate Power Status of the 542. TRIM Continuously variable +/- 12dB ‘pre-tape effect’ level control. SATURATION Continuously variable control of the level being sent to the ‘tape effect’ circuit. As Saturation level is increased, saturation on the ‘record head’...
  • Page 7 542 Specifications TAPE EFFECT DISENGAGED: Total Harmonic Distortion and Noise (NO SILK) 1 kHz, +20 dBu Output Level Better than 0.0025% 20 Hz, +20 dBu Output Level 0.07% typical (2nd & 3rd order harmonics) Noise (Measured at main output, Un-weighted, 20 Hz - 22 kHz, 40 ohm balanced source) Unity Gain Better than -100 dBu Frequency Response...
  • Page 8 542 Specifications (continued) Frequency Response (continued) 30 IPS, Input @ 0dB, Saturation @ MIN -3 dBu @ 120 kHz -3 dBu @ 10 Hz +3.15 dBu Peak @ 125 Hz 30 IPS, Input @ 0dB, Saturation @ MAX -3 dBu @ 100 kHz -3 dBu @ 12.5 Hz +1.3 dBu Peak @ 110 Hz Noise (Measured at main output, Un-weighted, 20 Hz - 22 kHz, 40 ohm balanced source)

  • Page 13: Product Warranty

    PRODUCT WARRANTY Rupert Neve Designs warrants this product to be free from defects in materials and workmanship for a period of three (3) years from date of purchase, and agrees to remedy any defect identified within such three year period by, at our option, repairing or replacing the product.

This manual is also suitable for:

542
