  • Page 1 500 Series Primary Source Enhancer Operations Manual Operations Manual...

  • Page 2: Important Safety Instructions

    CAUTION: Changes or modifications to this device not expressly 11. Only use attachments/accessories specified by the manufacturer. approved by Rupert Neve Designs LLC, could void the user's authority to 12. Use only with a cart, stand, tripod, bracket, or PORTABLE CART operate the equipment under FCC rules.
  • Page 3 Table of Contents Introduction Block Diagram Front Panel 545 Features Specifications Limited Warranty...
  • Page 4 Rupert Neve Designs 545: Primary Source Enhancer Thank you for purchasing the Rupert Neve Designs 545 Primary Source Enhancer. We hope you enjoy using this product as much as we have enjoyed designing and building it. The 545 Primary Source Enhancer is a 500-series module designed to greatly reduce the potential for ringing feedback while increasing overall vol- ume in various live sound applications.

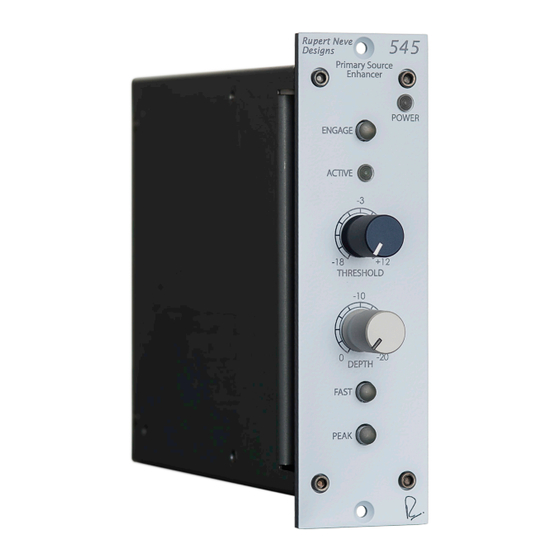

  • Page 5 545 Front Panel Rupert Neve Designs Primary Source Enhancer POWER LED that illuminates BLUE to indicate Power Status POWER ENGAGE ENGAGE Push-button that illuminates GREEN when the primary source enhancement effect is engaged ACTIVE ACTIVE LED that illuminates GREEN when the input source has overcome the set enhancement THRESHOLD THRESHOLD...
  • Page 6 545 Front Panel Features ENGAGE Push-button switch illuminates GREEN when the primary source enhancement effect is engaged. ACTIVE LED that illuminates GREEN when the input signal has overcome the set enhancement THRESHOLD. THRESHOLD 31-detent potentiometer that adjusts the dBu level where the primary source enhancement effect begins. Typical- ly louder sources will have a higher THRESHOLD setting.
  • Page 7 545 Specifications Maximum Input and Output Level +24 dBu Total Harmonic Distortion and Noise 1 kHz, +20 dBu Output Level, no load Better than 0.001% 20 Hz, +20 dBu Output Level, no load 0.1% typical (2 and 3 Order Harmonic) Noise (Un-weighted, 22 Hz - 22 kHz, 40 ohm balanced source) Primary Source Enhancer Bypassed Better than -100 dBu...

  • Page 8: Product Warranty

    PRODUCT WARRANTY Rupert Neve Designs warrants this product to be free from defects in materials and workmanship for a period of three (3) years from date of purchase, and agrees to remedy any defect identified within such three year period by, at our option, repairing or replacing the product.
