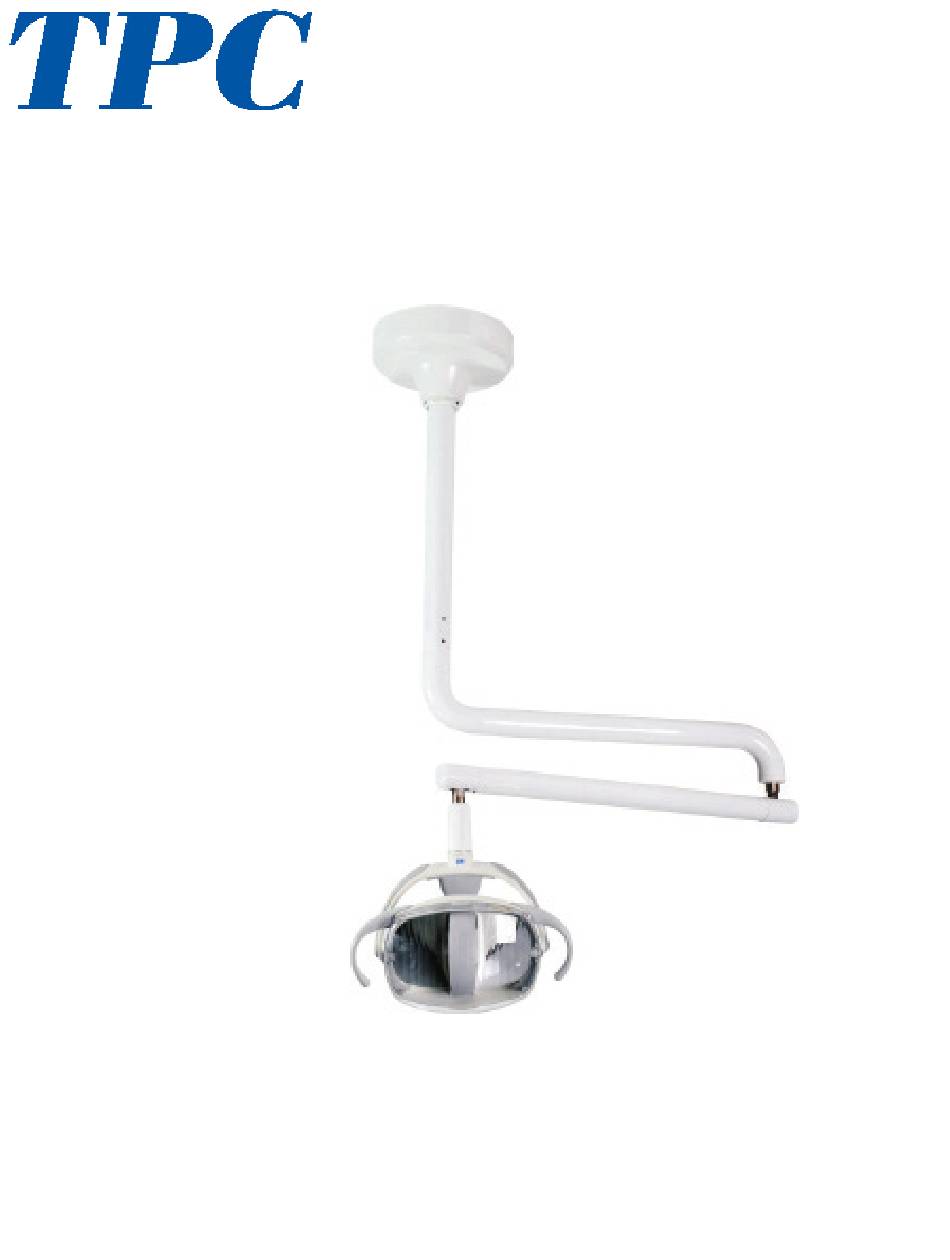

- Page 1 Lucent L690-LED Installation and Operation Manual 851 S. Lawson St City Of Industry, CA 91748 P626-810-4337 Fax 626-810-4245...
- Page 2 Table on Contents: Symbols Ceiling bracket suggested placement Ceiling bracket mounting template Installation Operation Light arm adjustments Light arm parts list Cleaning & disinfection guide Warranty Troubleshooting guide Technical Assistance is available Monday through Friday, 8:00 Am to 5:00 PM PST.
- Page 3 SYMBOLS DANGER The paragraphs marked with this symbol contain instructions which must be followed carefully to avoid damaging the device, the operator and the patient. WARNINGS These instructions warn the operator that it is mandatory to operate with utmost care to avoid situations which could damage the device. RESTRICTION This icon indicates the most appropriate behavior to avoid damaging the device.
- Page 4 Ceiling Bracket Suggested Placement Mounting location for right handed operation. Mounting location for left handed operation. Ceiling Brace Requirements Ceiling Joists The ceiling structure must be capable of supporting 220lb (100kg) dead weight. Ceiling bracket mounting plate. Secure the mounting plate to the ceiling joists using the supplied 4”...
- Page 5 Ceiling Bracket Mounting Plate...
- Page 6 Installation Secure the mounting plate to the ceiling joists using the supplied 4” lag bolts. If mounting to a concrete backing use the supplied concrete fasteners included with the bracket mounting kit. Slide the light post through the ceiling flange. Make sure the roll pin is properly seated into the ceiling flange grooves.
- Page 7 To light wire harness Installation Wago terminal The included power pack requires a receptacle for block installation. It’s not recommended to hard wire the connections to the power pack input. Follow all local electrical codes when making electrical connections. The power pack uses 110 - 240 AC input. Output is 24V DC @ 1.25 Amps.
- Page 8 Dental head “EDI LED” The device must be installed by specialized technicians only Make sure all the components listed below have been included in the package received. - Dental head (version according to order) - Wrench for front screen removal (8 fig.4) - Instruction manual The device has to be cleaned prior to use (see “Cleaning the device”...
- Page 9 • “Automatic lighting” function allows the lamp to get switched on automatically whenever the power is enabled via a touchpad control. TPC Mirage units only. • Easy maintenance thanks to the application of new technology that takes into consideration various requirement in terms of safety, ergonomics and hygiene.
- Page 10 EDI LED head is used for lighting the oral cavity during surgery in dental practice. The optical parameters are obtained by positioning the lamp at 700 mm from the subject. At different distances the light spot could lose its optimum parameters in terms of size, homogeneity and lighting. It is therefore recommended to follow as much as possible the indicated distance.
- Page 11 Vertical Arm Tension Adjustment If you experience a downward drift with your operatory lights vertical arm please follow the procedure below. • Remove the end cap cover on the end of the vertical arm closest to the light head. This requires a small Phillips screw driver. •...
- Page 13 Cleaning and disinfecting guide *The Manufacturer makes no representation as to the disinfectant efficacy of these products. We make no war- ranty expressed or implied that these disinfectants will not damage the surface finishes. Damage and discolor- ation of the surface finishes are not covered under the warranty. Iodophor based disinfectants will cause yellow staining on many surfaces.
- Page 14 LED Operatory lights are guaranteed to be free from defects in workman- ship and materials for a 2 years from date of purchase, unless otherwise stated. TPC will repair or replace any defective “part” at no charge. TPC will not be responsible for labor charges or shipping charges to and from the TPC facility.
- Page 15 Transformer is expired Replace transformer Light switch is damaged Replace light switch Light intensity is low. All TPC led lights have built in Toggle light on. Once “on” hold the dimmer modes. toggle in one direction to change the dimmer setting.
