TECHNICAL DATA
OLGE-90
OLGE-120
All dimensions shown are in millimetres
All stainless steel construction:
Connections:
Immersion heater rating:
Model
OLGE-90-30/F
OLGE-90-50/F
OLGE-120-50/F
OLGE-120-65/F
OLGE-155-50/F
© Bisque, a division of Zehnder Group UK Ltd
OLGE-155
30x30x1.2mm square headers
dia 18mm x 1.2mm round tubes
1.2m long flying lead (3 core)
IPX4 or better
Output
Weight
Watts
kg
100
100
150
10.0
200
250
10.7

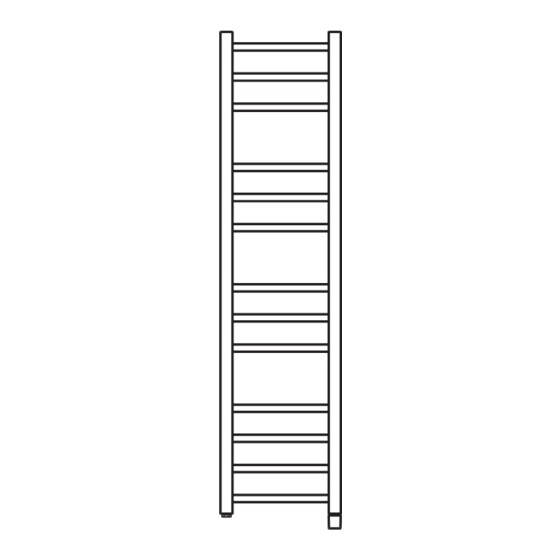

Electric Olga Towel Radiator
length
15
fixing centres
Height
± 2mm
5.2
900
6.3
900
8.0
1200
1200
1575
15
75-105
Length
± 2mm
300
480
480
630
480
Fixing
Centres
± 5mm
270
450
450
600
450
Issue 5.2
