Bisque Tetro TEF 58-60 Manual

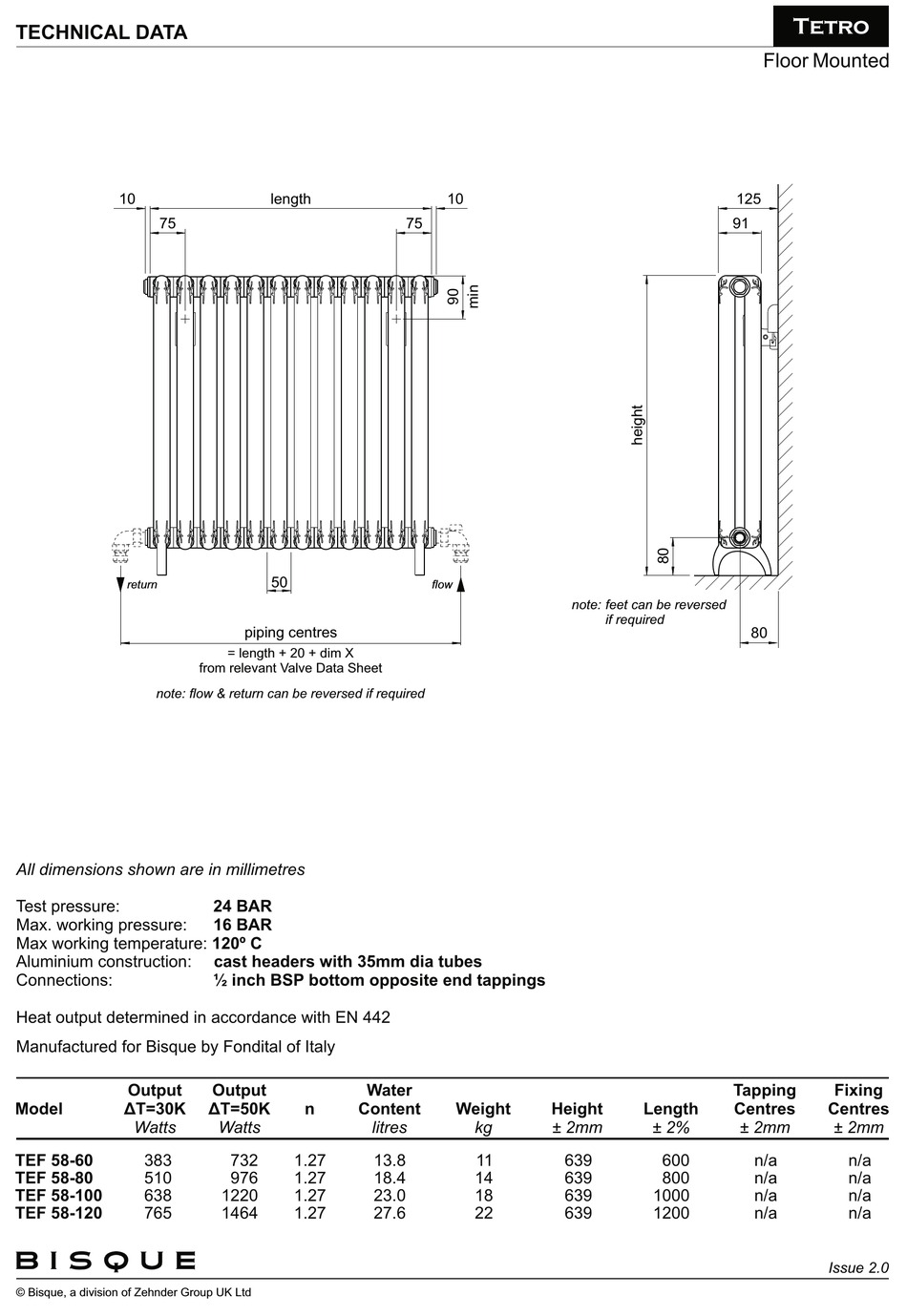

TECHNICAL DATA
10
75
return
note: flow & return can be reversed if required
All dimensions shown are in millimetres
Test pressure:
Max. working pressure:
Max working temperature:
Aluminium construction:
Connections:
Heat output determined in accordance with EN 442
Manufactured for Bisque by Fondital of Italy
Output
Ä
Model T=30K
Watts
TEF 58-60 383
TEF 58-80 510
TEF 58-100 638
TEF 58-120 765
© Bisque, a division of Zehnder Group UK Ltd
length
50
piping centres
= length + 20 + dim X
from relevant Valve Data Sheet
24 BAR
16 BAR
120º C
cast headers with 35mm
½ inch BSP bottom opposite end
Output Water
Ä
T=50K n Content
Watts
732 1.27
976 1.27
1220 1.27
1464 1.27
10
75
flow
dia tubes
tappings
Weight
litres kg
13.8 11
18.4 14
23.0 18
27.6 22
note: feet can be reversed
if required
Height Length
± 2mm ± 2%
639 600
639 800
639 1000
639 1200
Tetro
Floor Mounted
125
91
80
Tapping Fixing
Centres Centres
± 2mm ± 2mm
n/a n/a
n/a n/a
n/a n/a
n/a n/a
Issue 2.0
