JTS CS-W4C/6 Instruction Manual

Wireless conference system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

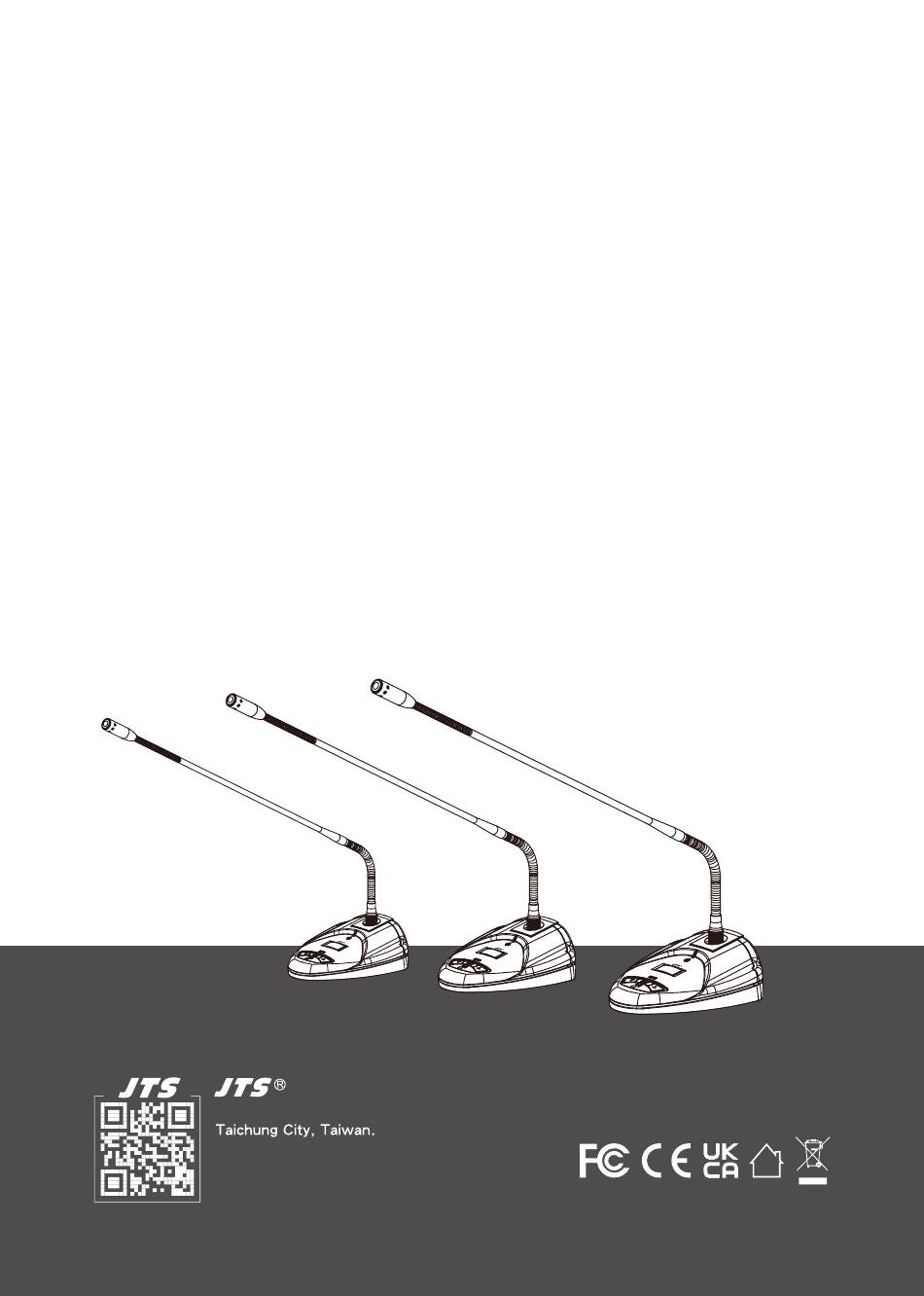

PROFESSIONAL CO., LTD.
No. 148, 9th Industry Road, Ta-Li Industrial Park,
Tel: 886-4-24938803 Fax: 886-4-24914890
E-mail: jts@jts.com.tw
www.jts.com.tw
59508-114-05
Made in Taiwa n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-W4C/6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JTS CS-W4C/6

Summary of Contents for JTS CS-W4C/6

  • Page 1 PROFESSIONAL CO., LTD. No. 148, 9th Industry Road, Ta-Li Industrial Park, Tel: 886-4-24938803 Fax: 886-4-24914890 E-mail: jts@jts.com.tw www.jts.com.tw 59508-114-05 Made in Taiwa n...
  • Page 2 CH1C PUSH / CONTROL CS-W 4C Wireless Receiver SETUP EXIT CS-W4C / CS-W4T Wireless Conference System Instruction Manual With JTS 2.4G RF Synchronizing Technology...
  • Page 3 5. JTS will provide service free of charge while the warranty is still valid. However, A fee for parts and/or service may be charged for the following: a.

  • Page 4: Table Of Contents

    Contents 1. Notes for system operations 2. Features 3. Specifications 3-1 UHF PLL 4-channel wireless conference system receiver //CS-W4C 3-2 UHF PLL wireless conference system transmitter //CS-W4T 4. Parts 4-1 UHF PLL 4-channel wireless conference system receiver //CS-W4C 4-2 UHF PLL wireless conference system transmitter //CS-W4T 4-3 Accessories 5.

  • Page 5: Notes For System Operations

    -10°C (14°F) and +50°C (122°F). 2. Features • CS-W4C is designed with JTS newest wireless and conferencing technology. It provides maximized compatible channels with a given bandwidth. Built in logic circuit provides conferencing feature. A microphone assigned with priority will work as a chairman unit.

  • Page 6: Specifications

    3. Specifications 3-1 UHF PLL 4-channel wireless conference system receiver //CS-W4C CS-W4C Model Frequency oscillation PLL Synthesized Control Carrier frequency 470~960 MHz No. of channels 4 channels Channel pairing RF 2.4G Diversity antenna diversity Bandwidth 36MHz Signal/noise ratio >105dB(A) Total harmonic distortion <0.6%@1KHz sensitivity -95dBm，S/N>80dB...

  • Page 7: Uhf Pll Wireless Conference System Transmitter //Cs-W4T

    3-2 UHF PLL wireless conference system transmitter // CS-W4T Model CS-W4T Frequency oscillation PLL Synthesized Control Carrier frequency 470~960MHz Bandwidth 108MHz (MAX) Paring 2.4G RF Remoset RF power output Low / High RF stability <±10KHz＠Fc Frequency deviation ±48KHz Spurious Emissions <-50dBc Display Power ON/OFF, Talk, groups, channels, frequency,...

  • Page 8: Parts

    4. Parts UHF PLL 4-channel wireless conference system receiver //CS-W4C CS-W4C Front panel PUSH / CONTROL CS-W 4C Wireless Receiver SETUP EXIT CS-W4C Rear panel 16 17 Power ON/OFF：ON：push once to turn on OFF：push and hold until ''Power OFF'' is shown on the LCD to turn off.
  • Page 9 AF： indicates the current strength of audio frequency signals. RF： indicates the current strength of radio frequency signals. Key lock: push and hold for 2 seconds to lock all keys, and again to unlock. Volume keys：push▲/▼keys to adjust the volume between 0 and -31dB. Selection key：push this button a.
  • Page 10 CS-W4C LCD displays Setting page Key lock Volume Antenna power supply ON Transmitter battery Mixed output attenuation ON 3blocks: CS-W4T microphone is used Receiver channel 1 Receiver channel 2 Receiver channel 3 :waiting for battery information from transmitter Receiver channel 4 Output attenuation ON :no microphone signal Antenna selection A/B...

  • Page 11: Uhf Pll Wireless Conference System Transmitter //Cs-W4T

    4-2 UHF PLL handheld transmitter // CS-W4T Power Switch/LOCK: The first segment is to turn ON the machine, the sec- ond segment is to LOCK the machine, which can lock the buttons (excluding the call button). Gooseneck tube connection socket: Gooseneck tubes of different lengths can be used.

  • Page 12: Accessories

    CS-W4T LCD displays Indication of frequency, group and channel Battery level Frequency (MHz) 4-3 Accessories D8P-1 Extension Cable* 1 Antenna * 2 Winds Shield * 4 AC power cable* 1 Cascading RF cable* 2 XLR(M)/XLR(F) Audio cable * 1 AC power cascading cable* 1 SELF-MA N SM-018...

  • Page 13: Connection

    5. Connection 5-1 Connecting the receiver 1.Connect the audio signal cable Connect the CS-W4C audio output to a mixer or an amplifier: Audio cable: one end of the XLR or 6.3mm audio cable is connected to the Ø ''AF output balanced'' of CS-W4C and the other to the audio input of the mixer or amplifier.
  • Page 14 Cascading of AC power cable and antennas *Up to 10 units can be cascaded for power/antenna. Wall socket D8P-1 Extension cable More CS-W4C… Mixer...
  • Page 15 *Logic Controller & Voltage Output When the microphone channel is turned on, the control signal corresponding to this channel will continue to output "High" (+5Vdc). When turned off, the control signal output of this channel will be "Low" (0V). The logic control signals can be used to trigger other applications, such as: the video camera.

  • Page 16: Installing Transmitter //Cs-W4T

    5-2 Installing transmitter // CS-W4T 1.Open the battery cover (picture1) 2.Place 2 AA batteries in the battery compartment according to their polarity. 3.Cap the battery cover. 4.Boot Mode （ picture2） a.The first segment turns the power slide switch from off to on to turn on the power.

  • Page 17: Operation

    6. Operation 6-1 Operation // CS-W4C Parameter settings Push and hold for 2 seconds to enter the setting mode. Turn the rotary switch to select the desired item. Push the rotary switch (or SETUP) to enter the setting page. Spin the switch to select the desired value or function.
  • Page 18 Self-defined groups ◎Edit a self-defined group U1~U6 (group no.) 1~24 (channel) ---.---MHz (frequency setting) ◎Delete a self-defined group Group Select the group to be deleted from U1~U6, push SETUP and the program will ask if you want to delete the group. Push ''Yes'' to delete. ◎Return Return: push SETUP to return to the previous page.
  • Page 19 ◎Receiver 1~4 Priority Settings Priority The receiver with the priority function has the highest right to make a call. When the priority is making a call, those without pri- ority will be forced to reduce their volumes (attenuated by 30dB approximately).
  • Page 20 Receiver channel 1 ◎Frequency setting Select the left 3 digits of the frequency; spin the rotary switch to adjust in the increment of ''+/-'' 1 MHz. Push the switch to confirm the selection. Select the right 3 digits of the frequency; spin the rotary switch to adjust in the increment of ''+/-'' 0.025 MHz.
  • Page 21 ◎Squelch +10~ -5：the higher the value, the less sensitive the receiving, and vice versa. The default is 0. ◎Device ID Device ID: 0~255: this setting affects the use of REMOSET; both the receiver and transmitter must be on the same Device ID before REMOSET is available.
  • Page 22 ◎Microphone options 1.Sensitivity Adjustment range：-15dB~+15dB；the default is 0. 2.Input attenuation Audio input attenuation by 20dB (depending on whether the transmitter has the corresponding function) No attenuation (default) 3.Low Cut Cut off rate at 150Hz (depending on whether the transmitter has the corresponding function) No attenuation (default) 4.RF power...
  • Page 23 7.Remoset options Use the rotary switch to search the items for REMOSET and push the knob to select. □ Frequency □ Sensitivity □ Attenuate (Only for BPT) □ Low Cut □ RF power □ AutoOFF □ KeyLock □ Save and exit □...
  • Page 24 Pairing for REMOSET 1.REMOSET：push REMOSET and the blue indicator will start flashing, indicating that the frequency data is being transmitted. 2.REMOSET successful：the blue indicator lights up on the transmitter for 3 seconds and that on the receiver stops flashing. 3.REMOSET failed：if the blue indicator flashes slowly on the receiver, check that： (1) The ''frequency range labels'' on ''both'' the receiver and transmitter are the same;...
  • Page 25 5.Pairing a single microphone: push SEL of the receiver channel to be paired. Push REMOSET and the blue indicator starts to flash. On the display the receiver channel is ''Synchronizing,'' indicating that data is being transmitted to that microphone. CS-W4C CS-W4C Others Push ''SEL'' below each of the channel volume keys:...

  • Page 26: Operation //Cs-W4T

    Operation // CS-W4T Push and hold SET for 2 seconds to enter the setting mode. Push SET repeatedly to locate the desired item. Use▲/▼for parameter settings. Push SET again to save the changes and exit. ◎ FREQ: frequency setting Increment of 1MHz Select with▲/▼...
  • Page 27 ◎ Low Cut Lc OFF Lc ON ON (150Hz) ◎ Device ID ID OFF Device ID deactivated ID 0~255 Device ID 0 ~ 255 ◎ Remoset (ON/OFF) Syn on Remoset activated Syn oFF Remoset deactivated Indicator Green: power is sufficient, > 2V Red: power low, ≤...

  • Page 28: Alert Function

    7. Alert Function The alert screen will blink slowly under these circumstance: 1.When microphone is under mute mode. CS-W4C 2.When microphone's power is OFF. CS-W4C 3.When microphone's battery level is too low. CS-W4C 8. Notes for the product (1)For the optimized reception, keep the receiver 3m or more away from the transmitter.
