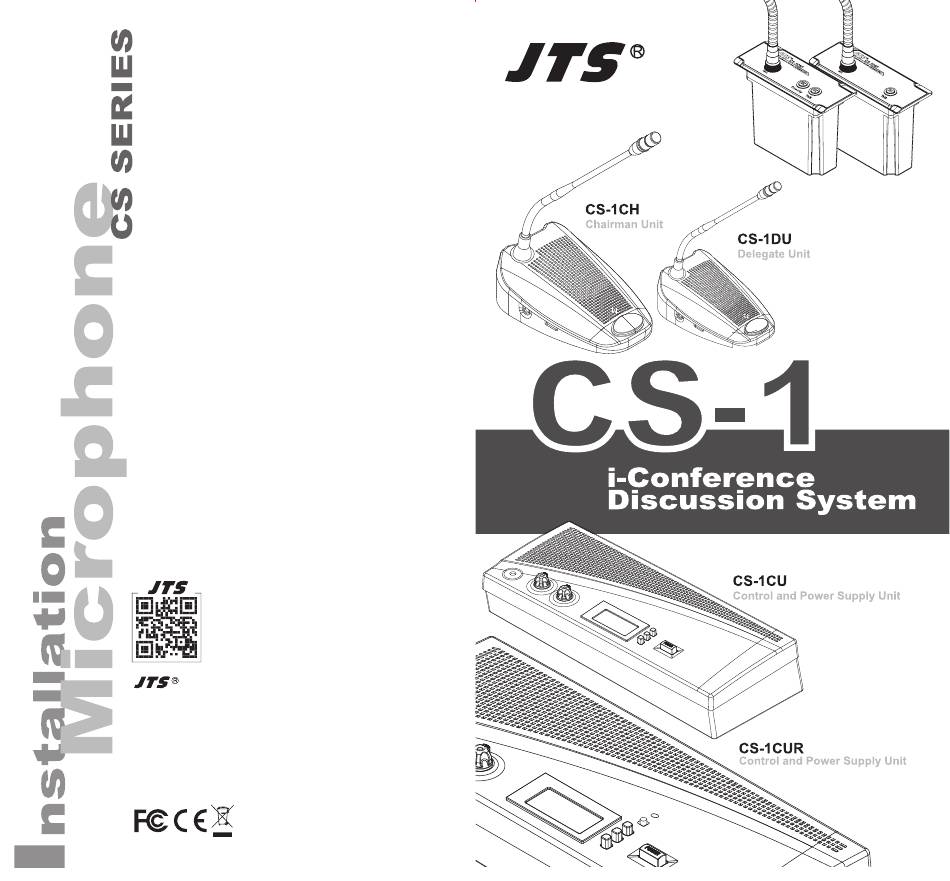

- Page 1 CS-1CHF The Chairman Unit CS-1DUF The Delegate Unit PROFESSIONAL CO., LTD. No. 148, 9th Industry Road, Ta-Li Industrial Park, Taichung City, Taiwan, R.O.C. Tel: 886-4-24938803 Fax: 886-4-24914890 E-mail: jts@jts.com.tw www.jts.com.tw 59508-012-09...
-
Page 3: Table Of Contents
Important Cautions Features Specification 3.1 Control and power supply unit (CU) 3.2 Delegate and Chairman unit Preparing Procedure 4.1 Connecting between the delegate and chairman units 4.2 Connecting up to 150 unit 4.3 Connecting an external microphone 4.4 Connecting a wireless microphone 4.5 External recording and playing 4.6 Connecting a PA-system | other external equipment 4.7 Connecting a telephone coupler... -
Page 4: Important Cautions
Important Cautions • Make all connections before plugging the unit into an AC power outlet. • Do not leave the devices in a place with high tempera- ture or high humility. • Do not handle the power cord with wet hands. •... -
Page 5: Features
Features The innovative CS-1 i-Conference Discussion System is equipped with JTS in-house made ECM capsule, intelligent automatic mixing technology and integrated acoustic and mechanical design, providing Turn-Key solution and delivering consistently natural, feedback- free audio performance with any environment. CS-... -
Page 6: Specification
Specification 3.1 Control and power supply unit (CU) 3.1.1 Front Panel 1) Power On/Off switch 2) LCD display: setting and displaying mode status, simultaneously maximum user number, and date. 3) Set button: pressing “set” button to enter setting mode on the LCD panel. 4) Up &... - Page 7 10) The description of the signal of recording pilot light is as below:(only for CS-1CUR model) a. Light is off: USB fails to be inserted or is unable to be detected b. Cross-flashing between red light and green light: USB flash drive is just inserted in and it shows USB is under the status of preparation.
- Page 8 3.1.2 Rear Panel 1) VAC input: 2) Insertion input and output switch: default setting is “In”, when switching to“In”, all internal speaker will be muted, and switch to external audio device. 3) Telephone coupler input and output: 4) Insertion input and output: connect to an external audio equalizer for speech quality improvement.
-
Page 9: Delegate And Chairman Unit
3.1.3 LCD Display 1) Mode status: show the discussion mode 2) Simultaneously user number: the maximum num- ber of simultaneously active users is four. 3) Date | Set: While setting, “Set” will flash. 4) Time: 3.2 Delegate and Chairman unit 3.2.1 CS-1CH/DU: 1) Gooseneck Microphone 2) Two 3.5mm stereo headphone sockets... - Page 10 Delegate Chairman unit...
- Page 11 3.2.2 Embedded Conference Unit：CS-1CHF and CS-1DUF This discussion unit can be installed on the desktop or embedded into the system. Embedded conference unit installation procedures: a.) Cut a hole in the desktop the size (unit: mm) as shown in the figure below; b.) As presented in the figure, drill two 3mm screw holes;...
- Page 12 Gooseneck Microphone Ring “ON” indicator, While microphone is actived. Gooseneck microphone socket Chairman Priority button Microphone ON/ OFF push-button 0.6m 7P-DIN standard plug cable (female plug x1): connect it to the next discussion unit or to the terminal connector. 1.5m 7P-DIN standard plug cable (male plug x1): connect it to the last discus- sion unit’s main control or the main control’s extension output.
-
Page 13: Preparing Procedure
Priority button setting switch: The default setting is“OFF”, meaning when releasing the priority button, the microphone on delegate units will be re-activated. When switching to “ON”, the mi- CHIME: crophone on delegate units won’t be reactivated When the CS-1CHF Priority after the priority button is released. -
Page 14: Connecting Up To 150 Unit
4) Connect the second unit to 7-pole circular connec- tion Cable. CS-1CHF CS-1DUF *CS-1CU male fenale male ...*3...25 male fenale male ...*3...25 4.2 Connecting up to 150 units：CS-1CH / DU or CS-1CHF / DUF The i-Conference discussion system can be used with up to 150 units by adding maximum 2 additional CUs functioning as power supply units only. -
Page 15: Connecting A Wireless Microphone
Caution: Always use the microphone with balanced output. The microphone XLR input provides a 12V phantom power supply. *CS-1CU 4.4 Connecting a wireless microphone 1) Connect a wireless receiver to the microphone XLR input of CU. 2) Adjust the sensitivity by using the gain control 1 *CS-1CU 4.5 External recording and playing 1) Connect a recorder to the recorder input and output... -
Page 16: Connecting A Pa-System | Other External Equipment
4.5.1 Built-in recording (only for CS-1CUR model) 1) Insert USB drive on the back panel 2) Pres the recording button on the panel if recording is required to activate the recording. Long press the recording button during the process of recording to end the recording. -
Page 17: Connecting A Telephone Coupler
2) Connect a PA-system or other devices to the line output by inout a RCA cable. PA-system audio sources 4.7 Connecting a telephone coupler 1) Connect the telephone coupler to the telephone input and output of the CU by a pair of RCA cable. 2) The telephone coupler would further connect to the telephone wall socket and a telephone. -
Page 18: Connecting Power Cord
Equalizer 4.9 Connecting power cord 1) Using the supplied power cord set to connect the CU to the power supply socket. 2) Press Power ON/OFF switch to turn on the system. As soon as the power is on, the LCD Display will light up. -
Page 19: Date / Time Setting
3) All connected chairman and delegate units will light *CS-1CU 3...25 Date | Time Setting 1) Pressing the “Set” button over 1.5 seconds, the Date | Set area on the LCD Display will flash and show “Set”. 2) Press “Up” or “Down” button to choose “Set Date Time”... -
Page 20: Counter Operation
5.4 Counter Operation 1) Pressing the “Set” button, the Date | Set area on the LEDDisplay will show“Counter” 2) Pressing “Up” to start counting. 3) Pressing “Up” again to stop. 4) Pressing “Down” to clear data after stopping. 5) Pressing the “Set” button again to jump back the original display. -
Page 21: Chairman Unit Operation
5.6 Chairman unit operation 1) Independent of the setting of the microphone mode on the CU, pressing the microphone ON/OFF(CS- 1CHF:Talk)” push-button will activate the goose- neck microphone on the chairman unit. 2) Pressing again turns the microphone off. 3) Pressing and holding the chairman priority button will deactivate all active delegate units and activate the chairman microphone. -
Page 22: Volume Control Of Headphone And Internal Speaker Of Cu
5.8 Volume control of headphone (CS-1CH/DU) and internal speaker of CU 1) While using internal speaker or headphone to monitor the discussion, turning the monitor volume control to adjust the volume of them. 2) The maximum volume level is controlled by the speaker volume control of CU *CS-1CU 5.9 Using a headphone (CS-1CH/DU) -
Page 23: Open Mode
5.10 Open mode 1) Pressing the “Set” button over 1.5 seconds, the Date | Set area on the LCD Display will flash and show “Set”. 2) Press “Up” or “Down” button to choose “Open Mode” on the Mode Status area of the LCD Display. 3) Press “Set”... -
Page 24: Override Mode
5.12 Override mode 1) Selecting the “Override mode” as the 5.10 proce- dures. Under “Override mode”, the system only allow one delegate unit be activated. Press the microphone ON/ OFF push-button on one delegate unit will deactivate the previous active delegate unit, and activate its own microphone 5.13 Chairman only mode 1) Selecting the “Chairman only mode”... -
Page 25: Built-In Recording
5.14 Built-in recording 1) Insert USB drive on the back panel 2) The recording pilot light on the panel showing cross- flashing between red light and green light repre- sents USB drive is under the status of preparation. 3) The recording pilot light will show green light when USB preparation is completed and press recording button to start recording. -
Page 26: Technical Data
Technical Data 6.1 Electrical and Electro-Acoustical Characteristics 6.1.1 CS-1CU Voltage: VAC100-240~, 50/60Hz Current consumption: MAX 1.0A(100VAC) 0.42A(240VAC) DC supply to contribution units: +15V, -7.5 V Line, telephone coupler and insertion in/outputs (unbal- anced) • Input sensitivity: -14dBV/+11dBV (hominal/maximum) • Input impedance: 33KΩ •... -
Page 27: Mechanical Specifications
System limits Number of delegate/chairman units connected to CU • Maximum in total: 50 • Maximum per Trunk output: 25 (<50M) • Maximum trunk length using CS-1: standard cabling: 100m (328 ft) 6.1.2 CS-1CH(CHF) & DU(DUF) Gooseneck Microphone: • Type: Back Electret Condenser •... -
Page 28: Pin Configuration
6.4 Pin configuration *CS-1CU Trunk Connections 1) Audio contribution line 2) GND 3) Audio distribution line 4) Control line 1 5) Control line 2 6) V+ supply 7) V- supply External Microphone (XLR) 1) GND (0V, phantom supply) 2) Signal + (+12V, Phantom supply) 3) Signal –...
