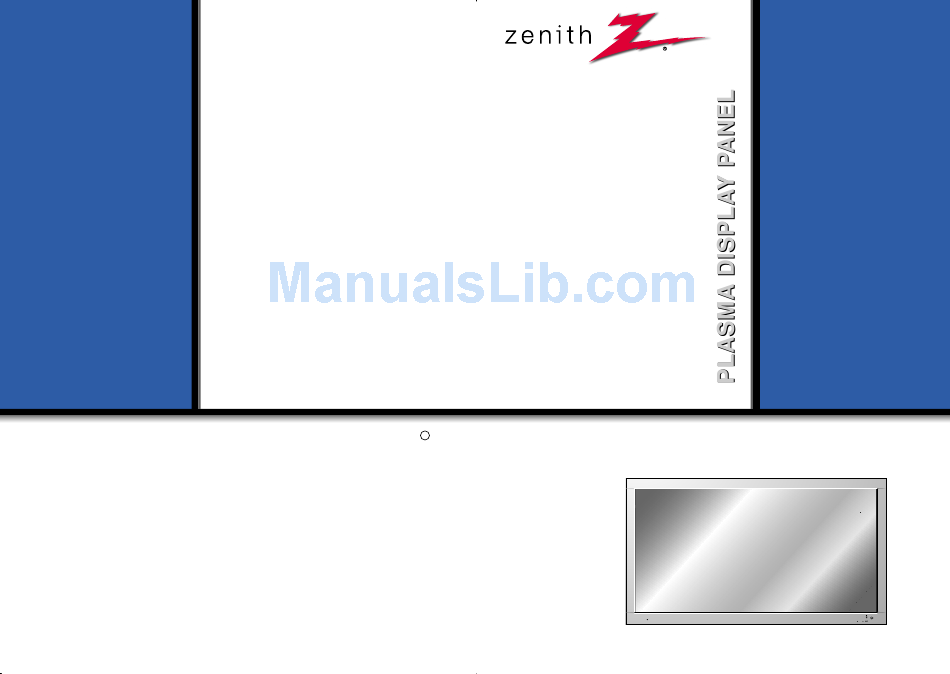

Owner's Manual
c
P/NO : 3828VA0277B
(NP00KA)
206-3730
Please read this operating guide carefully before
using the Monitor.
Keep the operating guide with the Monitor.
For future reference, write down the serial number
on the back of the Monitor in the space provided
below.
Model number : DPDP60W
Serial number :
ON/OFF
DPDP60W
OWNER'S MANUAL
INPUT
SELECT
VOLUME
Advertisement
Table of Contents
Related Manuals for Zenith DPDP60W
Summary of Contents for Zenith DPDP60W
- Page 1 Monitor. Keep the operating guide with the Monitor. For future reference, write down the serial number on the back of the Monitor in the space provided below. Model number : DPDP60W Serial number : P/NO : 3828VA0277B (NP00KA) 206-3730 DPDP60W OWNER’S MANUAL...
- Page 2 The explanation about colored dots may be present on PDP screen The PDP which is the display device of this product is composed of 0.9 to 2.2 million cells and a few cell defects can occur in the manufacture of the PDP. Several coloured dots visible on the screen would be acceptable, in line with other PDP manufacturers and would not mean that the PDP is faulty.
-
Page 3: Table Of Contents
Connection Panel Overview ...9 Remote Control Key Functions/Accessories ...10 Monitor Installation ...12 Equipment Connections and Setup VCR Setup...14 Cable TV Setup ...15 External AV Source Setup ...16 DVD Setup...17 DTV Setup ...18 PC Setup ...19 PC Computer Mode Feature Check ...21 PC Computer Mode Adjustments ...22... -
Page 4: Warnings
RAIN OR MOISTURE. FCC NOTICE • DPDP60W : A Class B digital device This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS Important safeguards for you and your new product Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference. -
Page 6: Power Sources
SAFETY INSTRUCTIONS (Continued from previous page) The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventila- tion is provided or the manufacturer’s instructions have been adhered to. -
Page 7: Replacement Parts
product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 19. Servicing Do not attempt to service this product your- self as opening or removing covers may expose you to dangerous voltage or other hazards. -
Page 8: Front Panel Controls
Front Panel Controls ON/OFF Main power button Power standby indicator Illuminates red in standby mode Illuminates green when the Monitor is turned INPUT SELECT button <Front Panel Controls> ON/OFF INPUT SELECT VOLUME Sub power button VOLUME ( ) buttons INPUT SELECT VOLUME Remote control sensor... -
Page 9: Connection Panel Overview
Connection Panel Overview AUDIO VIDEO (MONO) COMPONENT (480i/480p/720p/1080i) AV INPUT (DVD/DTV INPUT) A/V INPUT / COMPONENT (480i/480p/720p/1080i) DVD/DTV INPUT jacks <Back Panel> AUDIO VIDEO (MONO) AUDIO RGB-PC INPUT COMPONENT (480i/480p/720p/1080i) (VGA/SVGA/XGA/SXGA) AV INPUT AUDIO INPUT S-VIDEO EXTERNAL SPEAKER (8 ) RGB-DTV INPUT (DVD/DTV INPUT) (480p/720p/1080i) -
Page 10: Remote Control Key Functions/Accessories
Remote Control Key Functions/Accessories - When using the remote control aim it at the remote control sensor on the Monitor. power on button switches the sound on or off. number buttons video/pc button input select button (Refer to p. 26, 29) ratio button (Refer to p.44) When pressed displays sleep button... - Page 11 system off button No function menu button enter button up/down buttons vol buttons twin picture button (Refer to p. 28) When pressed displays on screen. position button (Refer to p. 26) freeze button (Refer to p. 42) easy sound button (Refer to p. 40) When pressed displays on screen.
-
Page 12: Monitor Installation
- It is recommended that this product only be used at an altitude of less than 6562 feet (2000m) to get the best quality picture and sound. - Your DPDP60W (Monitor) can be installed on a wall as shown below, or on a desktop pedestal as shown on the next page. -
Page 13: Desktop Pedestal Installation
Desktop Pedestal Installation ON/OFF • The Monitor can be installed on a desk as shown above. (For further information, refer to the optional ‘Desktop Stand Installation and Setup Guide’.) ( Pedestal mount minimum allowable clearances for adequate ventilation ) INPUT VOLUME SELECT 4inch... -
Page 14: Vcr Setup
VCR Setup - As shown below, when connecting the Monitor to a VCR, match the colors of AV input jacks on the Monitor with the output jacks on the VCR: Video = yellow, Audio (Left) = white, Audio (Right) = red. - If you have a mono VCR, connect the audio cable from the VCR to the AUDIO(L/MONO) input of the Plasma Monitor. -
Page 15: Cable Tv Setup
Cable TV Setup - After subscribing to a cable TV service from a local provider and installing a converter, you can watch cable TV programming. AUDIO VIDEO (MONO) COMPONENT (480i/480p/720p/1080i) AV INPUT (DVD/DTV INPUT) (R) AUDIO (L) To watch cable TV... -
Page 16: External Av Source Setup
External AV Source Setup - As shown below, when connecting the Monitor to an external source, match the colors of AV input jacks on the Monitor with the output jacks on the audio/video equipment: Video = yel- low, Audio (Left) = white, Audio (Right) = red. AUDIO VIDEO (MONO) -
Page 17: Dvd Setup
DVD Setup How to connect a DVD (digital video disk player) • Connect DVD video inputs to Y, P (DVD/DTV INPUT) and audio inputs to Audio sockets of AV INPUT. VIDEO AUDIO (MONO) COMPONENT (480i/480p/720p/1080i) AV INPUT (DVD/DTV INPUT) How to use •... -
Page 18: Dtv Setup
DTV Setup - To watch digitally broadcast programs, purchase/connect a digital SET-TOP BOX. - You can select only the 16:9 picture format in DTV 720p/1080i mode. How to connect a user-supplied Digital Set-top Box • Connect DTV video inputs to Y, P INPUT) or RGB-PC INPUT(VGA/SVGA/XGA/SXGA) RGB-DTV INPUT(480p/720p/1080i) socket and connect DTV audio inputs to Audio sockets of AV INPUT. -
Page 19: Pc Setup
PC Setup You can enjoy vivid picture and sound with connecting a PC with the Monitor. How to connect Make the connections shown in the illustration below. • Set the computer video output to under UXGA; for the best picture quality. (If the video output of the PC is not compatible with the Monitor, no picture will appear on the Monitor. - Page 20 Monitor Image Display Specifications Resolution 640x350 720x400 640x480 800x600 832x624 1024x768 1152x864 1152x870 1280x960 1280x1024 Horizontal Vertical Frequency (KHz) Frequency (Hz) 31.468 70.09 37.861 85.08 31.469 70.08 37.927 85.03 31.469 59.94 35.000 66.66 37.861 72.80 37.500 75.00 43.269 85.00 45.913 90.03 53.011 100.04...
-
Page 21: Pc Computer Mode Feature Check
PC Computer Mode Feature Check - Select first, see page 11. Press the menu button to show menus on screen. menu Press the up/down button to select menus. • Each press will cycle through the different menus as shown below. down •... -
Page 22: Pc Computer Mode Adjustments
PC Computer Mode Adjustments Auto adjustment - Automatically adjusts picture position and eliminates any image shaking. Press the menu button and then press the up/down button to select SPECIAL Press the vol ( menu Press the up/down button to select and then press the vol ( down Press the up/down button to select... - Page 23 Adjusting horizontal / vertical position - Only adjust V-POSITION Press the menu button and then press the up/down button to select SPECIAL Press the vol ( menu Press the up/down button to select and then press the vol ( down Press the up/down button to select TION H-POSITION...
-
Page 24: Picture Phase Adjustments
PC Computer Mode Adjustments Picture Phase Adjustments • If the picture isn’t clear after auto adjustment and especially if the characters are still trembling, then adjust the picture phase manually. • When watching PIP/TWIN PICTURE, SCREEN is inactivated in special menu. Press the menu button and then press the up/down button to select SPECIAL... -
Page 25: Pip Function
640x480, 800x600, 1024x768 (only in Vertical frequency 60 Hz) - When you select RGB or DTV for main picture in PIP/Twin picture, you can watch video, cable TV or DVD for sub picture. - Color of main picture may be different from PIP’s in PIP/Twin picture mode. -
Page 26: Moving The Sub Picture
Selecting the source input signal input select Moving the Sub picture position Press the input select button in PIP mode. • Each time you press input select button, you toggle between VIDEO COMPONENT VIDEO COMPONENT source only works in 480i mode. PIP INPUT VIDEO Press the position button in PIP mode. -
Page 27: Selecting Pip Sound Options
PIP function Selecting PIP sound options - This function only works with the following resolutions; 640x480, 800x600, 1024x768 (only in Vertical frequency 60 Hz) - To use this function, connect PC/DTV video output to RGB-PC INPUT(VGA/SVGA/XGA/SXGA) RGB-DTV INPUT (480p/720p/1080i) and connect PC/DTV audio outputs to AUDIO INPUT. -
Page 28: Twin Picture Function
Twin picture mode - Select input source. - This function works only in the following resolutions; DTV 480p/720p/1080i, - With TWIN PICTURE active, not all picture formats can be used for the main/sub picture. twin picture 640x480 (only in Vertical frequency 60 Hz) Press the twin picture button. - Page 29 Selecting a source for the Twin picture input select Press the input select button in TWIN PICTURE mode. • Each time you press input select button, you toggle between VIDEO COMPONENT COMPONENT VIDEO COMPONENT source only works with 480i signal input. PIP INPUT VIDEO...
-
Page 30: Using The Remote Control
Using the remote control Installing batteries Notes for using the remote control Make sure these are no objects between the remote control and its sensor. • Open the battery compartment cover on the back of the remote control and insert the batteries with correct polarity, match “+”... -
Page 31: Turning On The Monitor
Turning on the Monitor - When using the remote control, aim it at its sensor on the Monitor. Turning on the Monitor just after installation Connect power cord correctly. Press the ON/OFF button on the Monitor. At this moment, the Monitor is switched to standby mode. -
Page 32: Selecting Language For The Menus
Selecting language for the menus Press the menu button and then press the up/down button to select SPECIAL Press the vol ( menu Press the up/down button to select LANGUAGE vol ( ) button. down Press the up/down button to select the desired language. -
Page 33: Checking Features
Checking features - Make sure to select VIDEO before operating. menu Press the menu button. Press the up/down button. • Each press will cycle through the menus shown below. down Press the vol ( up/down or vol button to select a function you want to use. -
Page 34: Sleep Timer
Setting Sleep Timer < Sleep Timer turns the Monitor off after a preset time > sleep Tips • When the sleep time you want is displayed on the screen, don’t press the sleep button. After 20 seconds, the screen display disappears and sleep time is set. -
Page 35: Auto Picture Control
Auto picture control < Use APC to set the Monitor for the best picture appearance > - APC is not available in RGB, PIP/TWIN PICTURE modes. APC (Auto Picture Control) Press the apc button. Press the apc or vol button to select your desired picture condition. -
Page 36: Adjusting Picture Appearance
Adjusting picture appearance - PIP and Twin picture inset settings are not adjustable. Press the menu button and then press the up/down button to select PICTURE Press the vol ( menu Press the up/down button to select CONTRAST button. (to adjusting contrast) down •... -
Page 37: Drp (Digital Reality Picture)
DRP (Digital Reality Picture) < DRP allows you to select Clear or Soft for your picture appearance > - This function works in video, component 480i mode. Press the menu button and then press the up/down button to select PICTURE Press the vol ( menu Press the up/down button to select... -
Page 38: Selecting Menu Options
Selecting menu options - Use this option when viewing the video input Press the menu button and then press the up/down button to SPECIAL select Press the vol ( menu Use the up/down button to select SCREEN and then press the vol ( ) button. -
Page 39: Adjusting Sound: Bass, Treble, Balance
Adjusting sound Press the menu button and then press the up/down button to select SOUND Press the vol ( menu Use the up/down button to select and then press the vol ( ton. (if adjusting treble) down • Adjust BASS BALANCE Use the vol button to make appropriate adjustment and then press the enter... -
Page 40: Auto Sound Control
Auto sound control DASP • This function lets you enjoy the best sound without any special adjustment because the Monitor automatically selects the appropriate sound option based on the program content. easy sound Press the easy sound button. Press the easy sound or vol button to select a sound setup. -
Page 41: Avl (Auto Volume Leveler)
AVL (Auto Volume Leveler) < This feature maintains an equal volume level; even if you change channels. > Press the menu button and then press the up/down button to select SOUND Press the vol ( menu Press the up/down button to select and then press the vol ( button. -
Page 42: Using Still Function
Using Still function - This feature isn’t available for RGB input source. freeze Tips • If still picture is on the screen for more than 5 minutes, the image becomes dark. If another function is activated, normal brightness of the screen is restored. •... -
Page 43: Adjusting Osd Transparency
Adjusting OSD Transparency Press the menu button and then press the up/down button to select SPECIAL Press the vol ( menu Press the up/down button to select TRANSPARENCY vol ( ) button. down Press the vol button to adjust OSD transparency. -
Page 44: Setting Picture Format
Setting picture format - You are available to 16:9 or 4:3 in RGB. - If 4:3 is on the screen for a long time, that fixed image may remain visible. - Don’t display 4:3 picture format or TWIN PICTURE on screen above 10 hours continuously. ratio Press the ratio button to select a desired picture format. -
Page 45: Maintenance
- Early malfunction can be prevented. Careful and regular cleaning can extend the amount of time you will have with your new Monitor. Be sure to turn the power power off and unplug the power cord before you begin any cleaning. Cleaning the screen 1. -
Page 46: Troubleshooting Check List
Troubleshooting check list No picture & No sound Picture OK & No sound The remote control doesn’t work No or Poor color or Poor picture No output from one of the speakers Strange sound from the Monitor • Check whether the Monitor is turned on. •... -
Page 47: Product Specifications
Resolution Color Temperature (In operation) Humidity (In operation) • The specifications shown above may be changed without prior notice for quality improvement. DPDP60W 57.3 34.8 154.3 120V, 60Hz 1280 x 720 (Dot) 16,770,000 (256 steps of each R, G and B) 0 ~ 40°C...
