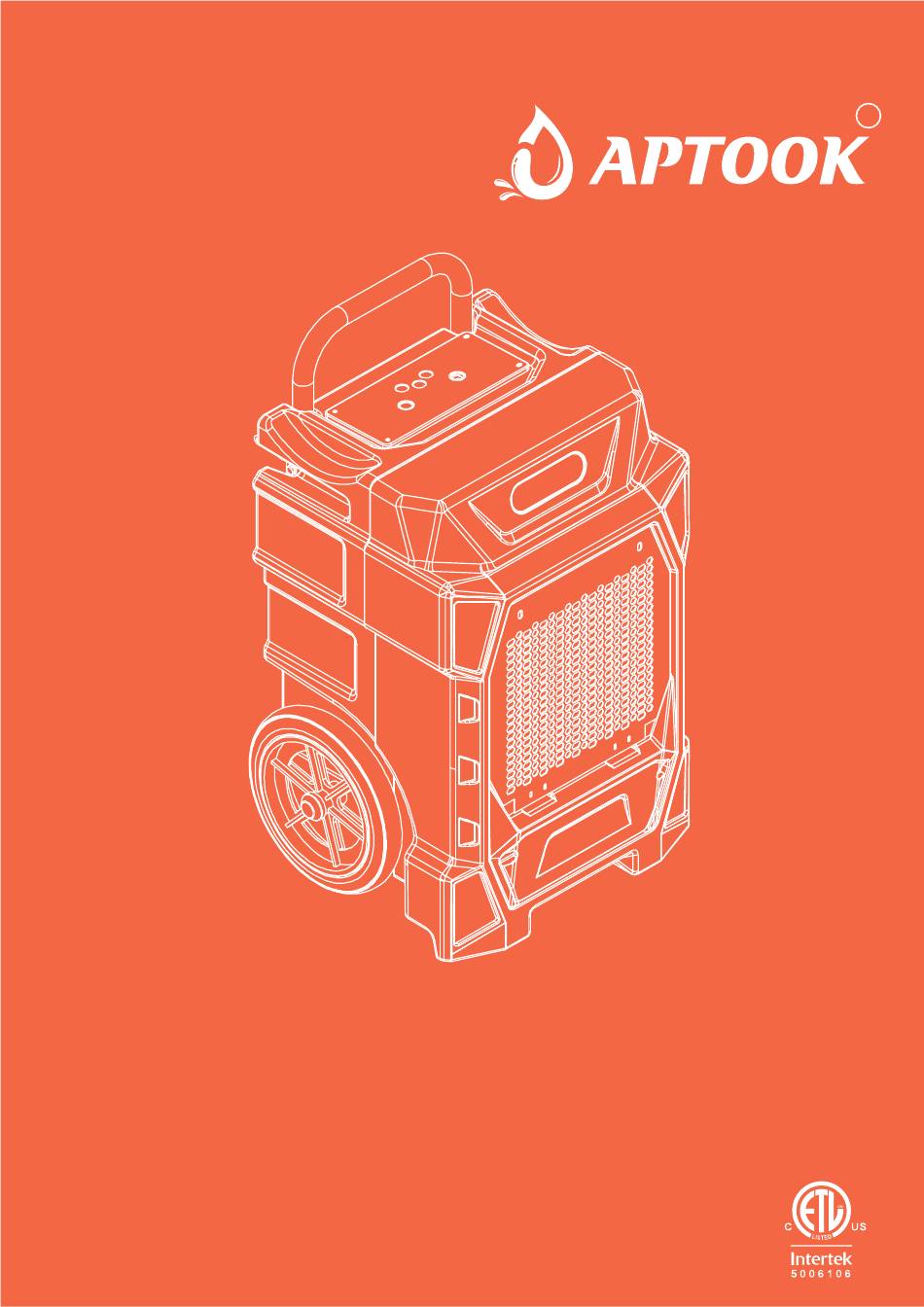

- Page 1 OL-R190B Please read this user manual before operating and save for future reference. You've been covered with a 1-year free warranty offered by APTOOK which is automatically valid from the date of purchase.If you have any question, please email APTOOK at support@aptook.com...
-
Page 2: Table Of Contents
CONTENTS INSTRUCTIONS.........1 BEFORE YOU BEGIN ......2 IMPORTANT SAFETY TIPS....3 SPECIFICATIONS........4 PRODUCT OVERVIEW......5 OPERATION..........6 AUTO DRAINAGE &MAINTENANCE...8 PARTS LIST..........9 TROUBLE SHOOTING GUIDE....10 SAFETY PRECAUTIONS......11 CUSTOMER SERVICE......12... -
Page 3: Instructions
Dehumidifier reduces humidity in enclosed environments by removing water vapor from the air. The APTOOK R190B is ideal for crawlspace drying, humidity control and other applications. Transportation and Custody During transportation, this product should be handled preciously to prevent violent vibration. -
Page 4: Before You Begin
The user manual contains instructions and notes on the operation and use of this unit. APTOOK recommends that you use genuine accessories from APTOOK. APTOOK shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the APTOOK. -
Page 5: Important Safety Tips
IMPORTANT SAFETY TIPS Before using the product, for safe and correct operation and maintenance, please read and understand the following safety tips 1. Unplug the power supply before cleaning or storing the machine. 2. Never immerse the machine into water or other liquids. 3. -
Page 6: Specifications
SPECIFICATIONS DEHUMIDIFIER Model No.: OL-R190B Voltage & Hertz AC115V / 60Hz Power Consumption& Current 735W/6.8A @80℉, 60% RH 900W/8.4A @86℉, 80% RH Refrigerant Charge R410a/19.8oz 90Pints/Day @80℉, 60% RH Dehumidify Capacity 190Pints/Day @95℉, 80% RH Maximum Design Pressure High Side: 522psig (3.6MPa) Low Side: 240psig (1.65MPa) -
Page 7: Product Overview
PRODUCT OVERVIEW Parts Diagram Foldable Handle Control Panel Logo Area Air-inlet Grille Wheel Quick Pump Access Air Outlet Wire Nail Rod Plug Power Cord Label Area Winder Water Hose... -
Page 8: Operation
OPERATION Control Panel Guide Power Button: When the machine is in the standby mode, the display screen will be displayed in low light LED. To start the dehumidifier, press the power button. Concurrently, the display screen will light up and the unit will run in Auto mode , the default humidity setting data is 10% RH,and the machine will start if the humidity condition meets the requirement of compressor operation. - Page 9 Minus Button: Press the Minus button to decrease humidity data or decrease timing data . When setting the humidity data , press the button for one time to decrease 5% RH , you can set the humidity range from 90%-10% RH, and 5% RH for one step , it will cycle as below : 90%-85%-80%-75%-70%-65%-60%-55%-50%-45%-40%-35%-30%- 25%-20%-15%-10%-90% …When setting the timing data , press the button for one time to decrease 1 hour , it will cycle as below:24-23-22-21-20…-02-01-00-24-23…...
-
Page 10: Auto Drainage &Maintenance
AUTO DRAINAGE &MAINTENANCE Please disconnect the power supply before cleaning or conducting maintenance. Cleaning: Clean the unit body with a soft damp cloth. Do not submerse or place water on the unit or control panel. Water may damage the electronic components of the unit. Do not use chemical solvent such as benzene, alcohol, gasoline or other heavy-duty cleaner. -
Page 11: Parts List
PARTS LIST Picture Name Quantity Dehumidifier 1PCS Drain Hose 1PCS User Manual 1PCS... -
Page 12: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE Error prompt and code running status 1. "E1" code: This code appears when the copper head sensor is damaged. The machine will keep running, but every 30 minutes , the compressor will stop for about 10 minutes, then continue to run . After that ,the machine will repeat the cycle like this. -
Page 13: Safety Precautions
SAFETY PRECAUTIONS... -
Page 14: Customer Service
CUSTOMER SERVICE APTOOK offers a limited 1-year free warranty on this OL-R190B dehumidifier,with original proof of purchase(typically you maybe only requested to offer the order number or other information to prove a genuine purchase,instead of an invoice) and where a defect has arisen, wholly or substantially, as a result of faulty manufacture,parts or workmanship during the warranty period. - Page 15 Commercial Dehumidifier www.aptook.com support@aptook.com...
