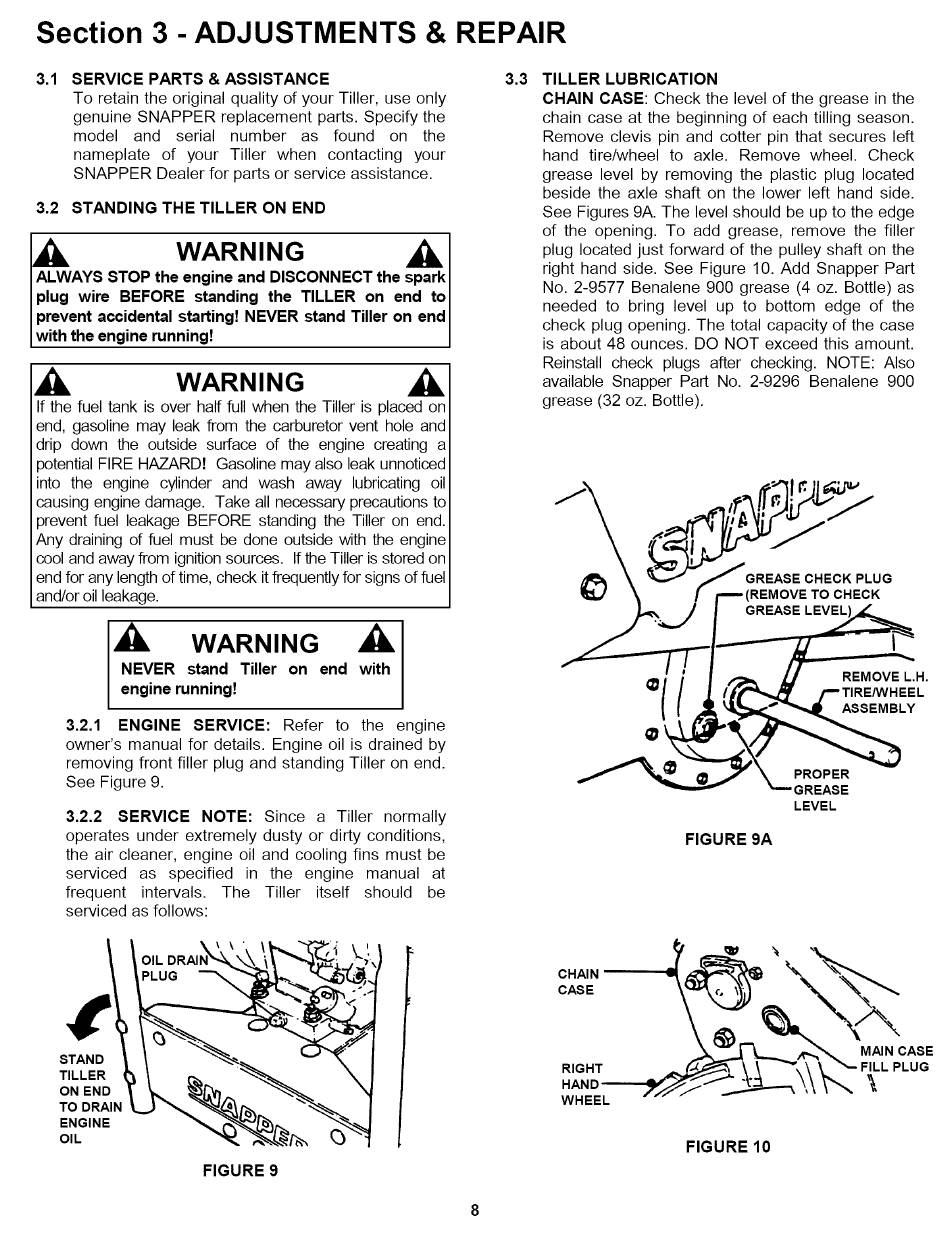

Section 3 -ADJUSTMENTS
& REPAIR
3.1
SERVICE PARTS & ASSISTANCE
3.3
To retain the original quality of your Tiller, use only
genuine SNAPPER replacement
parts. Specify the
model
and
serial
number
as
found
on
the
nameplate
of your Tiller
when
contacting
your
SNAPPER Dealer for parts or service assistance.
3.2
STANDING THE TILLER ON END
LLW
WARNING
AYS STOP the engine and DISCONNECT the spark
plug wire BEFORE standing the TILLER on end to
prevent accidental starting! NEVER stand Tiller on end
with the engine running!
WARNING
If the fuel tank is over half full when the Tiller is placed on
end, gasoline may leak from the carburetor vent hole and
drip down the outside surface of the engine creating a
_otential FIRE HAZARD! Gasoline may also leak unnoticed
into the engine cylinder and wash away lubricating oil
causing engine damage. Take all necessary precautions to
_revent fuel leakage BEFORE standing the Tiller on end.
Any draining of fuel must be done outside with the engine
cool and away from ignition sources. If the Tiller is stored on
end for any length of time, check it frequently for signs of fuel
and/or oil leakage.
WARNING
NEVER stand Tiller on end with
engine running!
3.2.1
ENGINE
SERVICE:
Refer to the engine
owner's manual for details. Engine oil is drained by
removing front filler plug and standing Tiller on end.
See Figure 9.
3.2.2
SERVICE
NOTE: Since
a Tiller
normally
operates under extremely dusty or dirty conditions,
the air cleaner, engine oil and cooling fins must be
serviced
as specified
in the engine
manual
at
frequent
intervals.
The
Tiller
itself
should
be
serviced as follows:
\
OIL
STAND
TILLER
ON END
TO DRAIN
ENGINE
OIL
FIGURE 9
TILLER LUBRICATION
CHAIN CASE: Check the level of the grease in the
chain case at the beginning of each tilling season.
Remove clevis pin and cotter pin that secures left
hand tire/wheel
to axle. Remove wheel. Check
grease level by removing the plastic plug located
beside the axle shaft on the lower left hand side.
See Figures 9A. The level should be up to the edge
of the opening. To add grease, remove the filler
plug located just forward of the pulley shaft on the
right hand side. See Figure 10. Add Snapper Part
No. 2-9577 Benalene 900 grease (4 oz. Bottle) as
needed to bring level up to bottom edge of the
check plug opening. The total capacity of the case
is about 48 ounces. DO NOT exceed this amount.
Reinstall check plugs after checking. NOTE: Also
available Snapper Part No. 2-9296 Benalene 900
grease (32 oz. Bottle).
,-
,, PJ
..
"1 1 ,L
_/--'TIRE/WHEEL
LEVEL
FIGURE 9A
CHAIN
_,_,_
CASE
_
,
MAINCASE
WHEEL
FIGURE 10
