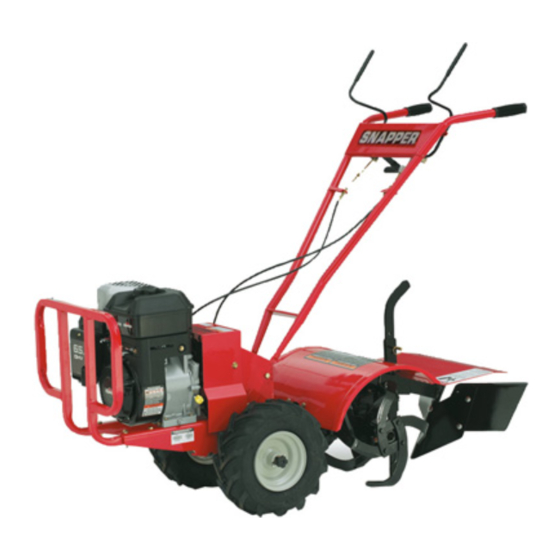

Page 1 INTERMEDIATE REAR TINE TILLER COPYRIGHT © 2006 SNAPPER PRODUCTS, INC. ALL RIGHTS RESERVED. Parts Manual for 6 & 7 HP 16" TWO SPEED McDonough, GA, 30253 U.S.A. Revision 2, 10/11/2006 MODEL 6016RT (7800052) 7016RT (7800053) Manual No. 7006257 TP 400-5131-2-RT-N...
Page 3: Table Of Contents
Engine, Belts & Wheels Group - 6 HP Engine, Belts & Wheels Group - 7 HP Transmission Group Wheel & Tiller Shaft Group Hood, Drag Stake & Tine Group - 6 HP Hood, Drag Stake & Tine Group - 7 HP...
Page 4: Handle Bar Group
Handle Bar Group Manual No. 7006257 INTERMEDIATE REAR TINE TILLER TP 400-5131-2-RT-N...
Page 5: Handle Bar Group
1716725 HANDLE, Reverse 1716704 BUSHING, Pivot, 5/16 1716722 BRACKET, Drive Control Lever RH 1935048 NUT, Hex Flange Tow Way Lock, 5/16-18 1921332 BOLT, Hex Flange Head, 5/16-18 x 3/4 Footnotes: INTERMEDIATE REAR TINE TILLER Note Manual No. 7006257 TP 400-5131-2-RT-N...
Page 6: Engine, Belts & Wheels Group - 6 Hp
Engine, Belts & Wheels Group - 6 HP Manual No. 7006257 INTERMEDIATE REAR TINE TILLER TP 400-5131-2-RT-N...
Page 7 ^See your local Briggs & Stratton dealer for Parts & Service. ^^Bumper is not standard with the 6HP tiller, but it is an available option, order the bumper guard (Ref# 37), 4 nuts (Ref# 22) and 4 capscrews (Ref# 35).
Page 8 Engine, Belts & Wheels Group - 6 HP Manual No. 7006257 INTERMEDIATE REAR TINE TILLER TP 400-5131-2-RT-N...
Page 9 ^See your local Briggs & Stratton dealer for Parts & Service. ^^Bumper is not standard with the 6HP tiller, but it is an available option, order the bumper guard (Ref# 37), 4 nuts (Ref# 22) and 4 capscrews (Ref# 35).
Page 10: Engine, Belts & Wheels Group - 7 Hp
Engine, Belts & Wheels Group - 7 HP Manual No. 7006257 INTERMEDIATE REAR TINE TILLER TP 400-5131-2-RT-N...
Page 11 BOLT, Hex Flange Head, 5/16-18 x 3/4 1722161 GUIDE, Belt Forward 1722165 COVER, Belt 1722163 PULLEY, Transmission 2 Groove 1716773 WHEEL & TIRE ASSEMBLY, Tiller LH 1716775 WHEEL & TIRE ASSEMBLY, Tiller RH 1716782 CAPSCREW, Hex Socket Head, 1/4-20 x 2-3/32 1960151 WASHER, 1/4 1716781...
Page 12 Engine, Belts & Wheels Group - 7 HP Manual No. 7006257 INTERMEDIATE REAR TINE TILLER TP 400-5131-2-RT-N...
Page 13 CAPSCREW, Hex Head, 5/16-18 x 3-1/2 1722144 V-BELT, Reverse ^ ENGINE, 7HP B&S INTEK, Model #120412-0141-E1 1919384 WASHER, 3/8 2860164 WASHER Footnotes: ^See your local Briggs & Stratton dealer for Parts & Service. INTERMEDIATE REAR TINE TILLER Note Manual No. 7006257 TP 400-5131-2-RT-N...
Page 14: Transmission Group
Transmission Group Manual No. 7006257 INTERMEDIATE REAR TINE TILLER TP 400-5131-2-RT-N...
Page 15 SEAL, Oil, Drive Shaft 1716798 BOLT, Hex Flange Head, 1/4-20 x 3/4 1716790 PLUG, Pipe, Socket Head, Oil Check, 1/4-18 1722330 TRANSMISSION, Housing, Tiller Casting 1716793 CAP, Rear Bearing 1716795 BOLT, Hex Flange Head, 1/4-20 x 7/8 1721511 BRACKET, Depth Regulator RT 1716799 GASKET KIT, Oil Seal ( Includes Ref.
Page 16: Wheel & Tiller Shaft Group
Wheel & Tiller Shaft Group Manual No. 7006257 INTERMEDIATE REAR TINE TILLER TP 400-5131-2-RT-N...
Page 17 Wheel & Tiller Shaft Group Item Part No Description 1716793 CAP, Rear Bearing 1716825 SHIM SET, Rear Bearing Cap 1716826 SHIM, 0.062 THK1-3/4” x OD1806 (As Required) 1716827 SHIM, 0.030 THK1-3/4” x OD1807 (As Required) 1716828 SHIM, 0.015 THK1-3/4” x OD1808 (As Required) 1716829 SHIM, 0.010 THK1-3/4”...
Page 18: Hood, Drag Stake & Tine Group - 6 Hp
Hood, Drag Stake & Tine Group - 6 HP Manual No. 7006257 INTERMEDIATE REAR TINE TILLER TP 400-5131-2-RT-N...
Page 19 1723703 PIN, Detent, 5/16 1723702 LEVER, Depth Regulator 1921958 CAPSCREW, Hex Head, 1/4 - 20 x 1/2 1722329 HOOD, Tiller, No Decal 1917356 LOCKWASHER, Spring, 5/16 1920787 CAPSCREW, Hex Head, 5/16-18 x 1/2 1921971 CAPSCREW, Hex Head, 3/8-16 x 1-3/4...
Page 20: Hood, Drag Stake & Tine Group - 7 Hp
Hood, Drag Stake & Tine Group - 7 HP Manual No. 7006257 INTERMEDIATE REAR TINE TILLER TP 400-5131-2-RT-N...
Page 21 Description 1723703 PIN, DETENT 5/16 1723705 LEVER, Depth Regulator 1921958 CAPSCREW, Hex Head, 1/4-20 x 1/2 1722329 HOOD, Tiller, No Decal 1917356 LOCKWASHER, 5/16 1920787 CAPSCREW, Hex Head, 5/16-18 x 1/2 1921210 CAPSCREW, Hex Head, 3/8-16 x 1 1716741 HOLDER, Tine Blade Left and Right...
Page 22: Decal Group
Decal Group Manual No. 7006257 INTERMEDIATE REAR TINE TILLER TP 400-5131-2-RT-N...
Page 23: Decal Group
Decal Group Item Part No Description 1726721 DECAL, Snapper 1716734 DECAL, Console Forward/Reverse Instructions 1716747 DECAL, Hood, Operator Instructions Label 1716840 DECAL, Danger, Tine Hood Label 1723523 DECAL, 6016 RT (not shown) 1723522 DECAL, 7016 RT 1716800 DECAL, Warning, Belt Cover...
Page 24: Hiller/Furrower Attachment
Hiller/Furrower Attachment Manual No. 7006257 INTERMEDIATE REAR TINE TILLER TP 400-5131-2-RT-N...
Page 25 WING NUT, 5/16-18 1960268 BOLT, Socket Head, 3/8-16 x 1-1/4 1723725 BRACKET 1919439 NUT, Nylock, 3/8-16 1916950 NUT, Hex, 3/8-16 1723724 BLADE, Furrower 1686802 HILLER / FURROWER ATTACHMENT, Complete Footnotes: INTERMEDIATE REAR TINE TILLER Note Manual No. 7006257 TP 400-5131-2-RT-N...
Page 28 INTERMEDIATE REAR TINE TILLER 6 & 7 HP 16" TWO SPEED IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
