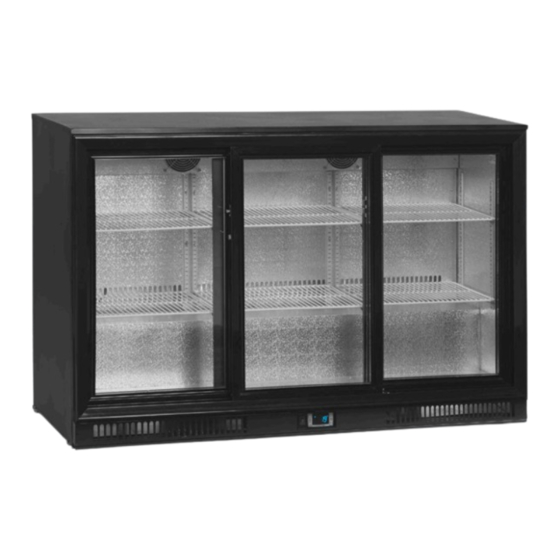

Diamond DB105H-I Original Instructions Manual
Backbar coolers
Hide thumbs
Also See for DB105H-I:
- Instructions manual (58 pages) ,
- Original instructions manual (58 pages) ,
- Original instructions manual (10 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Diamond DB105H-I
Summary of Contents for Diamond DB105H-I
- Page 1 07/2018 Mod: TAB1/D-R6 Production code: DB125H-I...
- Page 2 BACKBAR COOLERS Original instructions Models: DB105H-I DB125H-I DB200H-I DB200S-I DB300H-3-P DB300S-3-P...
-
Page 3: Table Of Contents
CONTENTS General information Important safety instructions .................. 4 Unpacking and installation ..................4 Electrical connection ....................5 Start-up of the cabinet ................... 5 Thermostat ......................6 Defrosting ......................6 Moving the shelves ....................7 Door reversal ......................7 Cleaning and maintenance ..................7 Service ........................ -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Before you use your cooler please read this instruction manual carefully. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: Electrical Connection
ELECTRICAL CONNECTION The cabinet operates on 220-240 V/50 Hz. The wall socket should be easily accessible. All earthing requirements stipulated by the local electricity authorities must be observed. The cabinet plug and wall socket should then give correct earthing. If in doubt, contact your local supplier or authorized electrician. -
Page 6: Thermostat
THERMOSTAT The thermostat and the light switch is placed in the bottom panel. The thermostat has been pre-set and in most cases it is not necessary to adjust the settings. When turning on the cabinet the display will show the current temperature in the cabinet. Display set temperature: Press this key and the display will show the set temperature. -
Page 7: Moving The Shelves
MOVING THE SHELVES The shelf guides is moved by squeezing them together and lifting them upwards at the same time. Check that all 4 shelf guides are placed in the same height before placing the shelf in the cabinet. DOOR REVERSAL Single door cabinets only ! Remove the 3 screws in the bottom hinge and let the door slide out of the top hinge.
