Siemens 5TY1 COM ECPD Operating Instructions Manual

Siemens 5TY1 COM ECPD Operating Instructions Manual

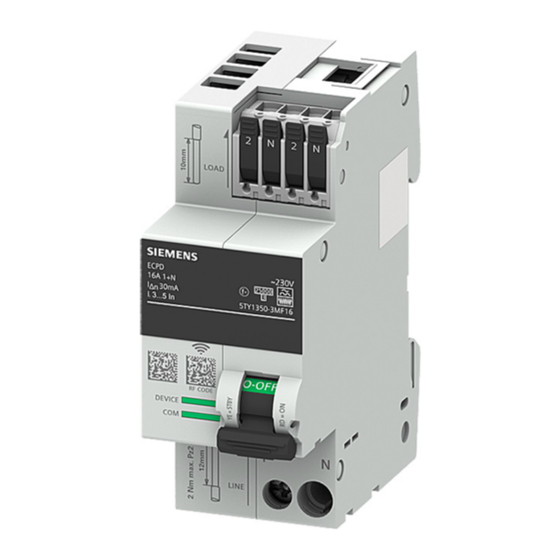

Electronic circuit protection device

Advertisement

TechnicalSupport (https://www.siemens.com/support-request)
L1V30912073A-01
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5TY1 COM ECPD and is the answer not in the manual?

Questions and answers

Summary of Contents for Siemens 5TY1 COM ECPD

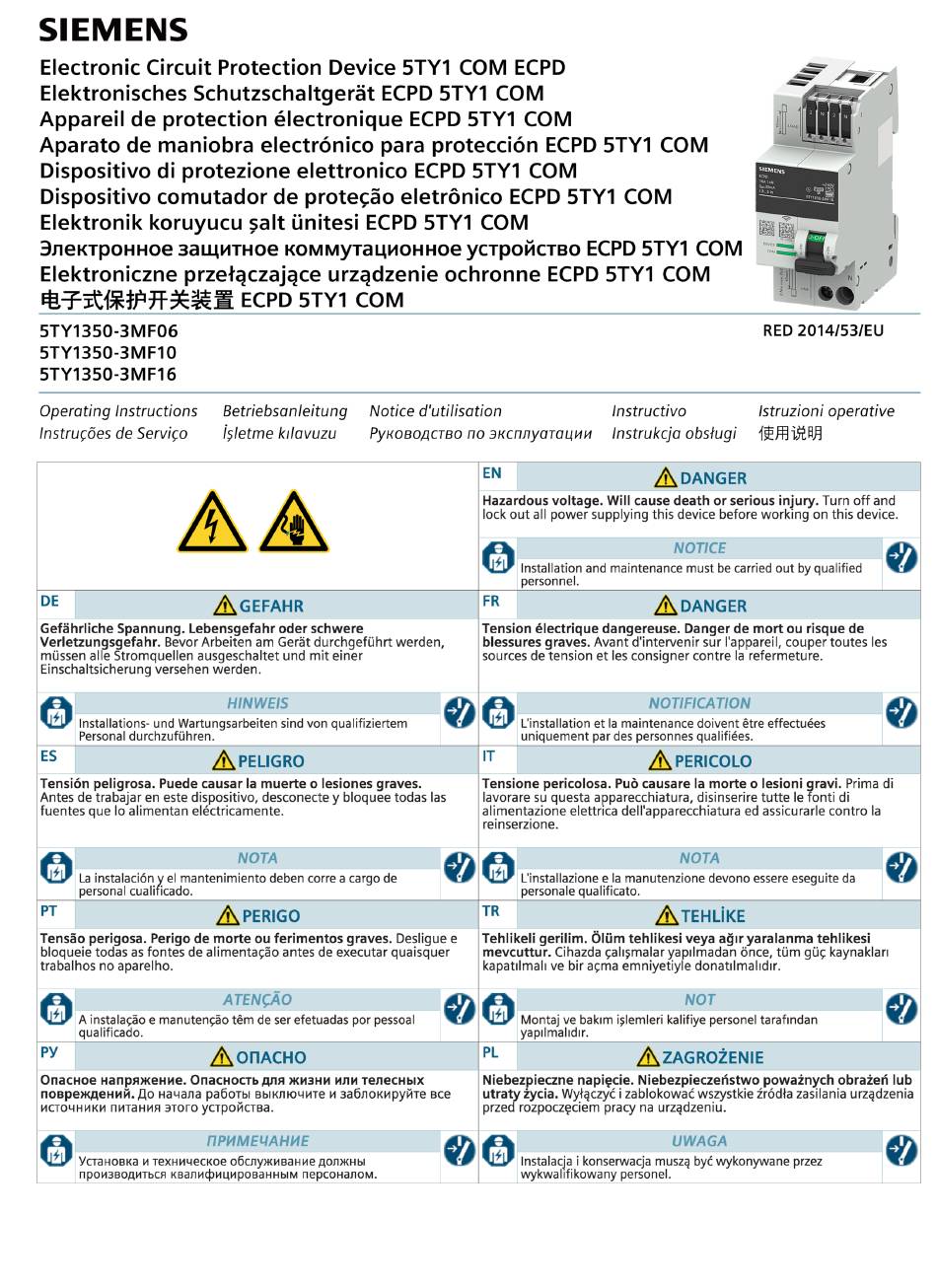

  • Page 1 TechnicalSupport (https://www.siemens.com/support-request) L1V30912073A-01...
  • Page 2 L1V30912073A-01...
  • Page 3 L1V30912073A-01...
  • Page 4 0.75 ...16 mm 0.75 ...16 mm 12 mm 0.75 ...10 mm 0.75 ...10 mm 0.5 … 4 mm² (Push-IN) 0.5 … 4 mm² 10 mm 0.5 … 2.5 mm² (Push-IN) 0.5 … 2.5 mm² (1.5 … 2.5 mm² Push-IN) 0.2 ... 1.5 mm 0.2 ...
  • Page 5 Handle LED Status No LED indication – green printed Mechanically OFF LED static yellow Standby LED static red LED flashes 2 Hz red ARD reclosing active, waiting time running L1V30912073A-01...
  • Page 6 Device LED COM LED Status Status LED off LED off No power supply No Communication, no power supply LED static green LED static green ECPD alright Communication alright LED flashes 2 Hz green LED flashes 0.75 Hz green ARD active (Handle LED flashing 2 Hz red) Not paired with master device LED flashes 5 Hz green for 10 s LED flashes 2 Hz green...
  • Page 7 2400-2483.5 MHz Maximum output power: 10 dBm EIRP SIOS Installation guide https://support.industry.siemens.com/cs/de/en https://support.industry.siemens.com/cs/ww/en/view/109791805 → Product / Article No. Pairing / Test Button Button Status Press button ≥ 10 s Reset device keys to factory default (unpair After 3 s LED flashes 2 Hz green for 7 s.
  • Page 8 For more information about industrial security, please visit https://www.siemens.com/industrialsecurity https://support.industry.siemens.com/cs/ww/en/view/109797242 L1V30912073A-01 L1V30912073A-01 Last Update: 20 December 2023 © Siemens AG 2023 Subject to change without prior notice. Store for use at a later date. Technische Änderungen vorbehalten. Zum späteren Gebrauch aufbewahren.

This manual is also suitable for:

5ty1350-3mf065ty1350-3mf105ty1350-3mf16
