IBC EX700 Assembly Instructions Manual
Hide thumbs
Also See for EX700:
- Assembly instructions manual (9 pages) ,
- Quick start manual (8 pages) ,
- Installation & operating manual (136 pages)
Advertisement
Quick Links
120-581

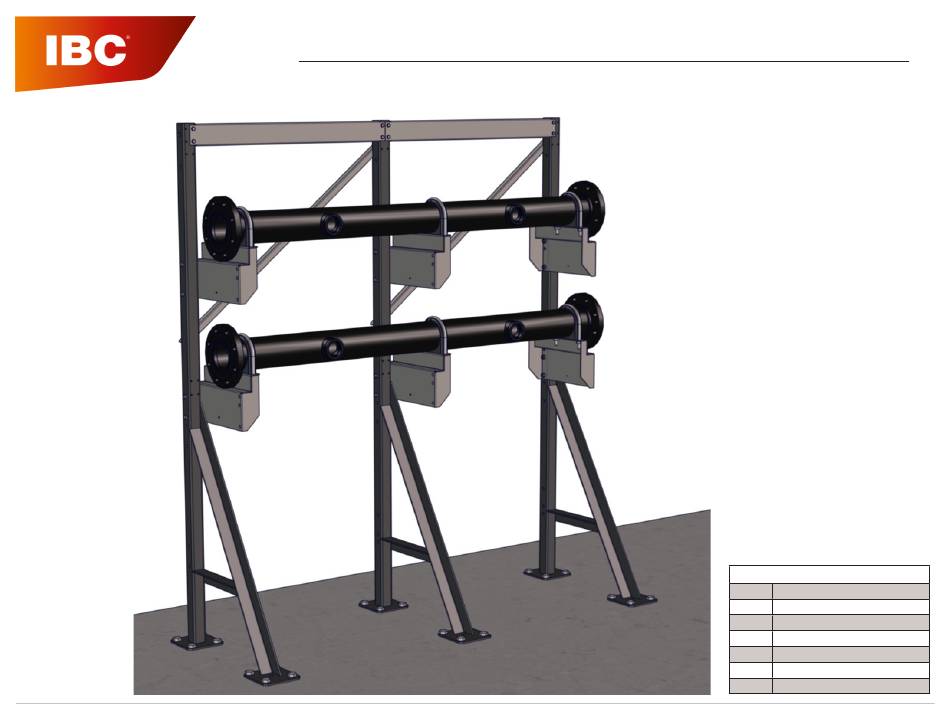

EX700-EX850 COMPACT RACKING ASSEMBLY INSTRUCTIONS
MX02-C-4" & MX03-C-4"
EX Rack MR Kits
MR-130
Rack Leg
MR-141
HEADER BRACKETS - INLINE 4"
MR-181
FLANGE CAPS - 4"
MR-402
EX700/850 BOILER PLUMBING KIT 4" HDR
MR-430
MOUNTING BRACKET & BRACE
MR-410
EX HEADERS - 4", 2 POSN
MR-411
EX HEADERS - 4", 3 POSN
Advertisement
Related Manuals for IBC EX700
Summary of Contents for IBC EX700
- Page 1 MR-130 Rack Leg MR-141 HEADER BRACKETS - INLINE 4” MR-181 FLANGE CAPS - 4” MR-402 EX700/850 BOILER PLUMBING KIT 4” HDR MR-430 MOUNTING BRACKET & BRACE MR-410 EX HEADERS - 4”, 2 POSN MR-411 EX HEADERS - 4”, 3 POSN...
- Page 2 Attach the upper mounting bracket to the rack legs as shown using ¼”-20 x ½” cap screws and ¼” lock washers. Ensure that the bracket is oriented so that the flange is at the top. Additional legs and brackets can be added to receive the required number of boilers. Flange 120-581 Page 2 of 11...
- Page 3 Attach the cross braces to the rack legs as shown using ¼”-20 x ½” cap screws & ¼” lock washers. 120-581 Page 3 of 11...
- Page 4 Secure the frame to the floor using anchor bolts (contractor supplied). 120-581 Page 4 of 11...
- Page 5 Attach the header brackets to the rack legs using 3/8”-16 x 2-½” cap screws & 3/8”-16 nuts. Insert the bolts thru the top two holes as shown. The brackets must be attached to the correct side of the leg, as shown, to allow clearance for the header pipe flange. 120-581 Page 5 of 11...
- Page 6 Install the U-bolt boots onto the headers. Place the header on the header brackets, lining up the face of the header flange with the center of the leg. Screw on the U-bolt nuts until snug (finger tight). Do not Install the bottom U-clamps. tighten completely until after all the boiler and external system connections have been completed.
- Page 7 Install the upper header in the same way. Header connections are parallel to the floor. Header connections are parallel to the floor. 120-581 Page 7 of 11...
- Page 8 Dimension drawings for EX700-EX850 boilers. 120-581 Page 8 of 11...
- Page 9 APPENDIX BOILER PIPING COMPONENTS & ASSEMBLY 120-581 Page 9 of 11...
- Page 10 EX700-EX800 BOILER RETURN PIPE ASSEMBLY - COMPACT VERSION 120-581 Page 10 of 11...
- Page 11 EX700-EX800 BOILER SUPPLY PIPE ASSEMBLY- COMPACT VERSION 120-581 Page 11 of 11...
